Why Choose the ABB ZX281P10 M12 Grippy Washer – Pack of 10?

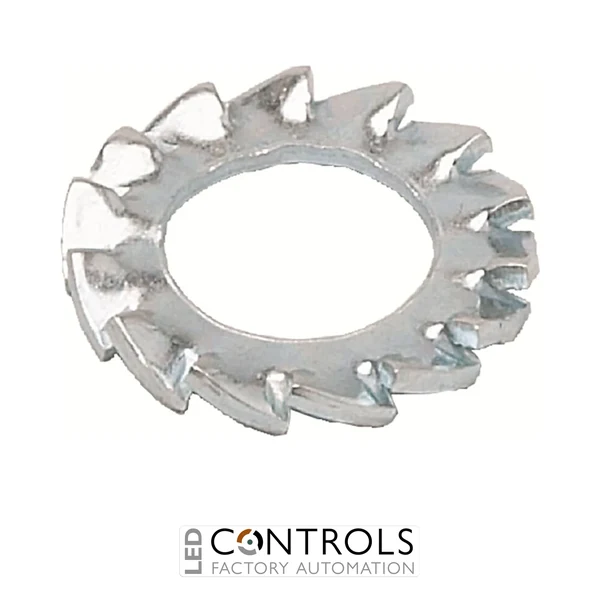

The ABB ZX281P10 M12 Grippy Washer (ABB order code 2CPX062531R9999) is a galvanised external-tooth locking washer designed for mechanical fastening applications within compatible ABB electrical distribution assemblies. Manufactured to the DIN 6798 Form A design, this washer features an externally toothed profile that helps resist loosening of bolted connections.
Part of the ABB STRIEBEL & JOHN interior installation accessory range, the ZX281P10 is intended for use with suitable M12 threaded fasteners in electrical distribution panels, mounting structures and compatible busbar assembly hardware. Its toothed design provides a gripping action between mating surfaces, helping maintain secure mechanical connections when correctly installed.
The ZX281P10 features an electrolytically galvanised finish, a nominal external width of 21.7 mm, an overall height of 2.7 mm and a specified material thickness of 1 mm. Supplied as a convenient pack of 10 washers, it provides a practical fastening accessory for electrical panel builders, switchboard manufacturers and maintenance engineers.
Key Advantages
- DIN 6798 Form A design: Standardised external-tooth locking washer geometry.
- M12 fastening compatibility: Designed for use with appropriately sized M12 bolts, screws and threaded assemblies.
- External gripping teeth: Help resist relative movement and loosening of bolted connections.
- Electrolytically galvanised finish: Provides a protective zinc coating for suitable installation environments.
- Pack of 10: Convenient quantity for electrical panel assembly, maintenance and installation work.
- Compact profile: Suitable for incorporation into compatible mounting and fastening arrangements.
- Standardised mechanical component: Supports consistent fastener selection in electrical distribution assemblies.
- ABB system compatibility: Part of the ABB STRIEBEL & JOHN interior installation accessory range.
- Mechanical locking action: Provides additional resistance to loosening compared with a plain washer in suitable applications.
- Simple installation: Fits beneath a compatible bolt head or nut as part of an approved fastening arrangement.
- Useful for panel builders: Supports repeatable fastening practices during switchboard assembly.
- Manufacturer-identified dimensions: Helps with selection where washer clearance and installation space are important.
Key Features
- ABB STRIEBEL & JOHN fastening accessory.
- Product designation: ZX281P10.
- ABB order code: 2CPX062531R9999.
- Washer type: External-tooth locking washer / grippy washer.
- Standard: DIN 6798 Form A.
- Nominal fastening size: M12.
- Nominal washer size: A12.
- External-tooth gripping profile.
- Electrolytically galvanised surface finish.
- Nominal external width: 21.7 mm.
- Overall height: 2.7 mm.
- Material thickness: 1 mm.
- Pack quantity: 10 pieces.
- Part of the ABB interior installation system.
- Suitable for compatible mechanical fastening assemblies.
- Manufactured in Germany.
Technical Specifications
- Manufacturer: ABB
- Product family: ABB STRIEBEL & JOHN
- Product designation: ZX281P10
- ABB order code: 2CPX062531R9999
- Product group: DESUJ Sub Distribution
- Product type: Grippy washer / toothed locking washer
- Washer configuration: External-tooth, Form A
- Applicable dimensional standard: DIN 6798
- Standard designation: A12 DIN 6798
- Nominal fastener size: M12
- Nominal washer size: 12 mm
- Surface treatment: Electrolytically galvanised
- Surface finish: Zinc-plated
- Material thickness: 1 mm
- Nominal external width: 21.7 mm
- Overall external height: 2.7 mm
- Quantity per pack: 10 pieces
- Supply unit: Pack
- Product classification: Interior installation system accessory
- Primary function: Mechanical fastening and resistance to loosening
- Typical installation: Under compatible M12 bolt heads or nuts
- Packaging depth: 50 mm
- Packaging width: 20 mm
- Packaging length: 10 mm
- Packaging gross weight: 0.021 kg
- Country of origin: Germany
- Commodity code: 73182100
- Electrical switching function: None – mechanical fastening accessory
Reliable M12 Fastening Support for Electrical Distribution Assemblies
The ABB ZX281P10 provides a straightforward mechanical locking function in compatible M12 fastening assemblies. Its external-tooth profile is designed to grip the adjacent surfaces when compressed beneath a correctly tightened fastener, helping resist unwanted loosening during normal service.
Unlike a plain washer, which primarily distributes clamping force over a larger surface area, an external-tooth locking washer uses its formed teeth to create additional resistance to relative movement. This makes the ZX281P10 suitable for selected mechanical fastening arrangements in electrical distribution equipment where the manufacturer specifies this washer type.
The washer conforms to the DIN 6798 Form A configuration. This standardised geometry helps installers identify the appropriate external-tooth washer for M12 fastening applications and distinguish it from plain washers, split spring washers and internal-tooth locking washers.
ABB specifies an electrolytically galvanised surface finish for the ZX281P10. The zinc coating provides corrosion resistance appropriate to the intended application and installation environment. The finished washer has a nominal external width of 21.7 mm, an overall height of 2.7 mm and a material thickness of 1 mm.
Within electrical distribution panel construction, correct mechanical fastening is important for maintaining the intended positioning of mounting components, support brackets and associated equipment. The ZX281P10 can form part of these assemblies where an M12 external-tooth washer is specified by the applicable ABB installation instructions.
When installed, the washer should be positioned between the appropriate fastening surface and bolt head or nut. Fasteners must be tightened to the torque specified for the complete assembly. The washer itself does not determine the tightening torque, which depends on the fastener, joint materials and equipment manufacturer's requirements.
For applications involving electrical bonding or protective earth continuity, the use of a toothed washer alone must not be assumed to establish a compliant electrical connection. The complete bonding arrangement must be approved for that purpose, taking account of surface coatings, contact pressure and the applicable installation requirements.
The ZX281P10 is supplied in packs of 10, providing a convenient quantity for panel-building work, maintenance activities and installations requiring several matching M12 locking washers. The pack format helps installers maintain consistency across multiple approved fastening positions.
Typical Applications
- ABB electrical distribution panel assembly.
- M12 fastening arrangements in compatible ABB equipment.
- ABB STRIEBEL & JOHN interior installation systems.
- Mechanical fixing of distribution panel components.
- Electrical cabinet and enclosure hardware installation.
- Switchboard mounting structures.
- Compatible busbar support fastening assemblies.
- Industrial control panel construction.
- Commercial electrical distribution equipment.
- Mechanical mounting bracket installation.
- Electrical panel refurbishment and maintenance.
- OEM switchboard manufacturing.
- Replacement of specified M12 external-tooth locking washers.
- Professional electrical installation and assembly work.
