Why Choose the ABB ZX378P20 Spacer for Meter Support Plates?

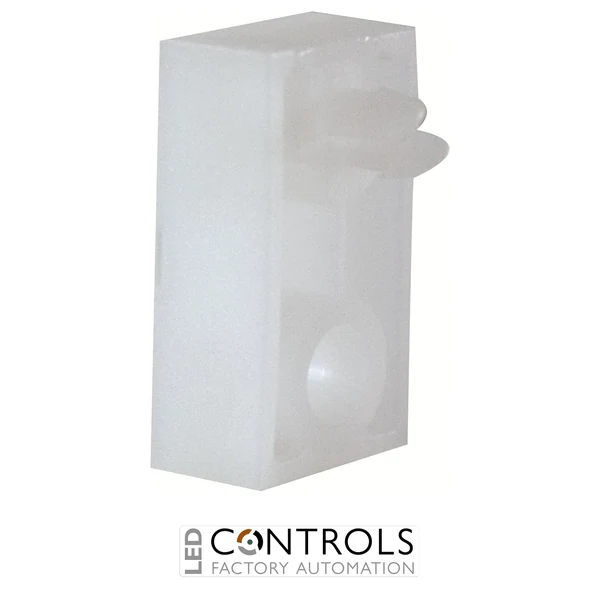

The ABB ZX378P20 is a purpose-designed spacer for electrical meter support plates, providing a practical mechanical positioning solution within compatible low-voltage distribution boards and metering assemblies. Manufactured for the ABB STRIEBEL & JOHN distribution system, this accessory supports the installation of meter mounting components in electrical distribution enclosures.
Specifically intended for ABB M(B)Z160 and M(B)Z161 meter support plate arrangements, the ZX378P20 is suitable for compatible single-field-width metering installations. Its compact dimensions of 22 × 13 × 12 mm (W × H × D) make it a dedicated spacing component for maintaining the intended mechanical arrangement between associated meter support plate components.
Manufactured from plastic, the ABB ZX378P20 provides a lightweight spacing solution for compatible electrical distribution equipment. Supplied in a pack of 20 pieces, it is particularly useful for electrical panel builders, switchgear manufacturers and installers working on multiple meter support plate assemblies. The product is identified by ABB order code 2CPX062547R9999 and belongs to the DESUJ Sub Distribution product group.
Key Advantages
- Purpose-designed spacer for electrical meter support plates.
- Compatible with ABB M(B)Z160 and M(B)Z161 meter support plate arrangements.
- Suitable for single-field-width metering assemblies.
- Compact 22 × 13 × 12 mm dimensions for dedicated spacing applications.
- Plastic construction provides a lightweight mechanical accessory.
- Helps maintain the intended positioning of compatible meter support plate components.
- Designed for integration with compatible ABB distribution system equipment.
- Useful for new electrical metering installations and maintenance projects.
- Supports professional electrical panel construction and metering assembly work.
- Pack of 20 spacers provides a convenient quantity for multiple installations.
Key Features
- ABB ZX378P20 meter support plate spacer.
- Designed for compatible ABB STRIEBEL & JOHN distribution systems.
- Suitable for M(B)Z160 meter support plate assemblies.
- Suitable for M(B)Z161 meter support plate assemblies.
- Intended for single-field-width metering arrangements.
- 22 mm external width.
- 13 mm external height.
- 12 mm external depth.
- Plastic material construction.
- Mechanical spacing accessory for meter mounting systems.
- Suitable for professional electrical distribution board assembly.
- ABB order code 2CPX062547R9999 for accurate identification.
- 20 individual spacers per pack.
Accurate Spacing for Electrical Meter Support Plate Assemblies
Meter support plates form part of the internal mounting arrangements used in electrical distribution boards to accommodate electricity meters and associated equipment. The ABB ZX378P20 provides a dedicated spacer for compatible M(B)Z160 and M(B)Z161 assemblies. These arrangements correspond to ABB's ZX304 single-meter support plate and ZX305 two-meter support plate configurations, respectively.
The ZX378P20 helps establish the intended spacing between compatible mounting components without requiring improvised packing materials. Its 22 × 13 × 12 mm plastic construction is intended for the specified meter support plate system. During installation, the spacer should be positioned in accordance with ABB assembly instructions, with the relevant mounting hardware and support plate configuration checked for compatibility.
Typical Applications
- Low-voltage electrical distribution boards with metering equipment.
- ABB STRIEBEL & JOHN meter support plate installations.
- ABB M(B)Z160 single-meter mounting arrangements.
- ABB M(B)Z161 two-meter mounting arrangements.
- Compatible ABB ZX304 and ZX305 meter support plates.
- Single-field-width electrical metering assemblies.
- Meter support plate spacing and positioning.
- Commercial and residential electrical distribution board construction.
- Electrical metering cabinet assembly and refurbishment.
- Professional electrical panel-building and maintenance projects.
