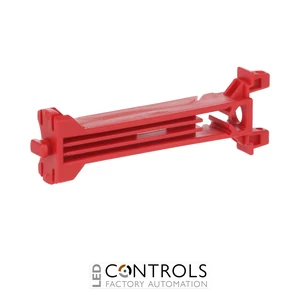

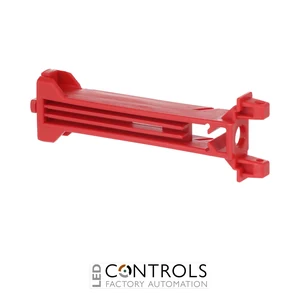

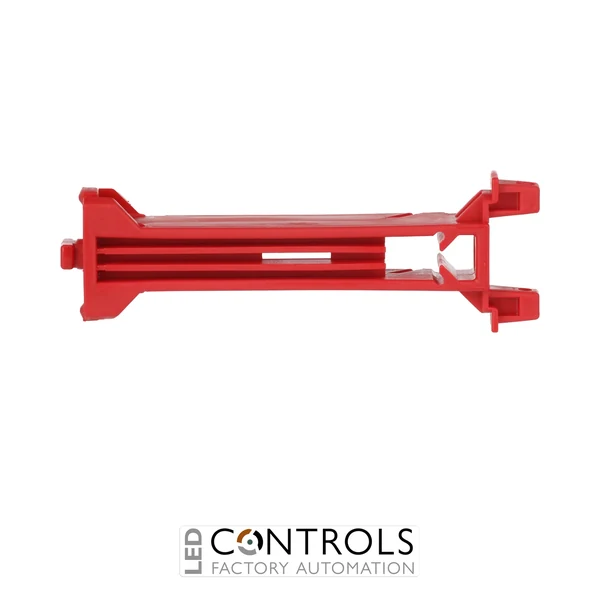

Why Choose the ABB ED139P4 Cover Bracket Set?
The ABB ED139P4 is a durable and practical cover bracket set for electrical distribution boards, designed to provide secure mounting and positioning of protective covers within low-voltage distribution assemblies. Part of the ABB Striebel & John sub-distribution interior installation system, this accessory supports professional electrical panel construction, helping installers achieve organised, secure and reliable internal arrangements.
Designed for compatibility with ABB EDF and WR profile rails, the ED139P4 cover bracket uses an insertion-and-turn fastening arrangement for straightforward installation. The brackets also support the latching of partition walls within compatible distribution assemblies, providing flexibility when configuring internal equipment layouts and protective covers.
With a bracket height of 88 mm and overall dimensions of 88 × 16 × 34.5 mm, the ED139P4 is particularly suitable for installations containing deeper electrical devices or busbar systems. Supplied as a pack of four cover brackets, ABB order code 2CPX062604R9999, it provides a convenient mounting solution for electrical contractors, switchboard manufacturers and panel assembly professionals.
Key Advantages
- Purpose-designed cover brackets for electrical distribution boards.
- 88 mm bracket height accommodates installations with deeper electrical components.
- Compatible with ABB EDF and WR profile rails.
- Convenient insertion-and-turn fastening system for straightforward installation.
- Supports the secure positioning and latching of internal partition walls.
- Suitable for distribution assemblies incorporating busbar systems.
- Durable plastic construction for electrical enclosure applications.
- Supplied in a practical pack of four brackets for panel assembly work.
Key Features
- ABB ED139P4 cover bracket set for sub-distribution systems.
- ABB order code: 2CPX062604R9999.
- Bracket height: 88 mm.
- Bracket width: 16 mm.
- Bracket depth: 34.5 mm.
- Pack quantity: 4 pieces.
- Material: Plastic.
- Designed for mounting on EDF and WR profile rails.
- Insertion-and-turn fastening arrangement for secure positioning.
- Supports the attachment of internal partition walls.
- Suitable for deeper device installations and electrical busbar arrangements.
- Designed for integration into compatible ABB electrical distribution assemblies.
Technical Specifications
- Manufacturer: ABB
- Brand / product system: ABB Striebel & John
- Product group: DESUJ Sub Distribution
- Model: ED139P4
- ABB order code: 2CPX062604R9999
- Product type: Cover bracket / cover holder
- Accessory category: Distribution board interior installation accessory
- Bracket height: 88 mm
- Bracket width: 16 mm
- Bracket depth: 34.5 mm
- Dimensions (H × W × D): 88 × 16 × 34.5 mm
- Material: Plastic
- Compatible mounting profiles: EDF and WR profile rails
- Mounting method: Insert-and-turn fastening
- Application: Cover mounting and partition wall attachment
- Suitable installations: Deeper electrical devices and busbar systems
- Quantity per pack: 4 pieces
- Packaging unit: 1 pack
- Packaging dimensions: 110 × 60 × 35 mm
- Gross packaging weight: 0.052 kg
- Country of origin: France
- EAN: 4011617626046
Reliable Cover Mounting for Electrical Distribution Assemblies
Cover brackets are important components in the construction of electrical distribution boards, providing mounting points for internal covers and helping maintain organised separation between electrical equipment and accessible areas. The ABB ED139P4 is designed to support these requirements through a secure fastening arrangement compatible with EDF and WR profile rails.
Its 88 mm height makes it particularly useful when electrical assemblies contain components with greater installation depths or integrated busbar arrangements. The bracket can be inserted and turned into position on compatible profile rails, while its design also allows partition walls to be latched into place. This flexibility makes the ED139P4 suitable for new distribution board construction, panel modifications and compatible enclosure refurbishment projects.
Typical Applications
- ABB low-voltage sub-distribution board assemblies.
- Electrical switchboard interior construction and assembly.
- Mounting protective covers on EDF and WR profile rail systems.
- Distribution panels incorporating deeper electrical equipment.
- Electrical enclosures containing busbar distribution systems.
- Internal partition wall installation and positioning.
- Commercial and industrial electrical distribution installations.
- Electrical panel refurbishment and compatible cover bracket replacement.
