Why Choose the ABB ZX342 WR Mounting Bracket?

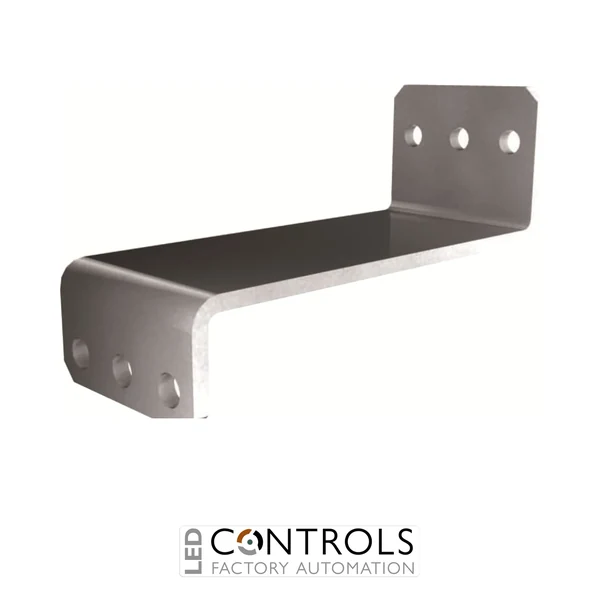

The ABB ZX342 WR Mounting Bracket is a specialist mounting accessory designed for supporting compatible busbar modules within ABB electrical distribution assemblies. Identified by ABB order code 2CPX062661R9999, the ZX342 belongs to the DESUJ Sub Distribution product group and is used with ABB WR mounting frames.
Designed specifically for applications involving the ABB ZX520 busbar holder, the ZX342 supports busbar module arrangements with 60 mm or 100 mm busbar centre spacing. Its mounting bracket configuration provides the required mechanical interface for integrating the specified busbar support arrangement into a compatible WR mounting frame.
The bracket has manufacturer-listed external dimensions of 89 × 49 × 37 mm (width × height × depth). It forms part of the ABB Striebel & John electrical distribution accessory range and is intended for professional switchboard construction, electrical panel assembly and maintenance.
The supplied product description identifies the ZX342 WR Mounting Bracket 2Pcs. ABB's published product listing for order code 2CPX062661R9999, however, identifies a standard packaging quantity of one piece. The quantity supplied should therefore be confirmed with the seller before ordering.
Key Advantages
- Designed for ABB WR mounting frames used in compatible electrical distribution assemblies.
- Compatible with the ABB ZX520 busbar holder in the specified mounting arrangement.
- Supports 60 mm and 100 mm busbar centre spacing configurations.
- Purpose-designed mounting bracket for compatible busbar module installations.
- Compact 89 × 49 × 37 mm dimensions for integration into the intended enclosure structure.
- Provides a manufacturer-designated mechanical mounting accessory.
- Supports consistent installation of matching busbar mounting components.
- Useful for new switchboard installations and replacement projects.
- Suitable for professional electrical panel-building applications.
- Part of the ABB DESUJ Sub Distribution accessory range.
Key Features
- ABB ZX342 WR Mounting Bracket.
- ABB order code: 2CPX062661R9999.
- Product group: DESUJ Sub Distribution.
- Brand range: ABB Striebel & John.
- Product type: Mounting bracket / mounting angle.
- Compatible busbar holder: ABB ZX520.
- Compatible mounting structure: ABB WR mounting frame.
- Supported busbar centre spacing: 60 mm or 100 mm.
- External width: 89 mm.
- External height: 49 mm.
- External depth: 37 mm.
- Designed for compatible busbar module mounting arrangements.
- Suitable for professional electrical distribution system assembly.
- Supplied listing description: 2 pieces.
- ABB standard packaging listing: 1 piece; confirm the seller's supplied quantity.
Specialist Mounting for ABB WR Distribution Frames
Electrical distribution systems require correctly positioned mechanical supports to accommodate busbar modules and associated equipment. The ABB ZX342 is designed specifically for use with compatible WR mounting frames, providing a mounting bracket arrangement for the designated busbar holder.
The bracket is intended for installations using the ABB ZX520 busbar holder. This compatibility is important because the dimensions and fixing arrangement of the supporting bracket must correspond to the busbar holder and the complete mounting frame assembly.
Using the specified ABB mounting accessory helps maintain the intended relationship between the busbar holder, mounting frame and associated electrical equipment. Installation should follow the applicable ABB technical drawings and assembly instructions, including any requirements for mounting hardware, clearances and mechanical support.
Supporting 60 mm and 100 mm Busbar Module Arrangements
The ABB ZX342 is specified for compatible busbar module arrangements with 60 mm or 100 mm centre-to-centre spacing. This measurement describes the distance between adjacent busbar centres within the relevant assembly.
Correct busbar spacing is essential when selecting mounting accessories because busbar holders, supports and connected equipment must align with the intended distribution system. The ZX342 is designed for the specified mounting arrangement involving the ZX520 holder, rather than for universal installation across all busbar systems.
The bracket's external dimensions of 89 mm wide, 49 mm high and 37 mm deep should be considered when checking available installation space. The complete assembly must also meet the applicable electrical clearance, mechanical loading and short-circuit withstand requirements.
Designed for Professional Electrical Panel Building
Electrical contractors and switchboard manufacturers benefit from using mounting components that correspond directly to the specified distribution board system. The ABB ZX342 WR Mounting Bracket provides a defined accessory for compatible WR mounting frame and ZX520 busbar holder combinations.
For replacement work, the model reference ZX342 and ABB order code 2CPX062661R9999 provide a reliable basis for identifying the correct product. These identifiers are especially useful where several mounting bracket designs are used within the same electrical installation.
Before ordering, verify the required quantity, as the supplied product title specifies two pieces while ABB's standard product listing specifies one piece. Confirming the sales unit helps avoid shortages during installation or discrepancies between the order and the delivered components.
Typical Applications
- Compatible ABB WR mounting frame assemblies.
- ABB ZX520 busbar holder mounting arrangements.
- Busbar modules with 60 mm centre spacing.
- Busbar modules with 100 mm centre spacing.
- ABB Striebel & John interior expansion systems.
- Low-voltage electrical sub-distribution boards.
- Electrical switchboard manufacturing.
- Commercial electrical distribution cabinets.
- Industrial electrical distribution assemblies.
- Mechanical support of compatible busbar module installations.
- Replacement of matching ABB ZX342 mounting brackets.
- Electrical enclosure refurbishment and maintenance.
- Professional electrical panel-building projects.
