Why Choose the ABB AS15 Slotted Cover 250 × 750 mm 1PW?

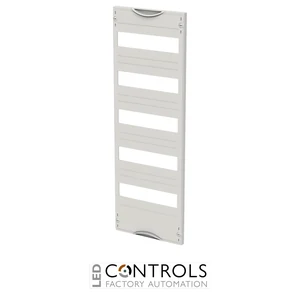

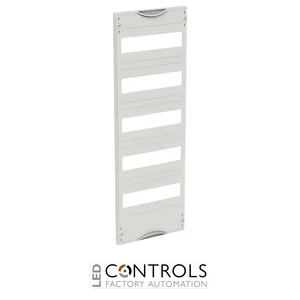

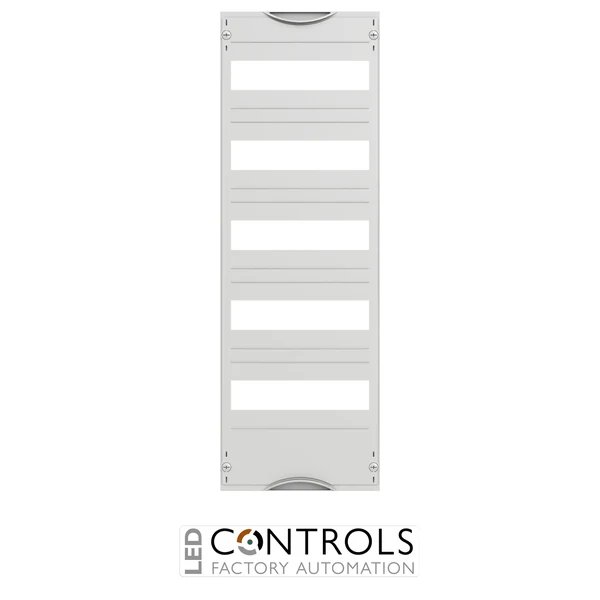

The ABB AS15 Slotted Cover is a purpose-designed front cover for compatible ABB electrical distribution board assemblies. Measuring 250 mm wide × 750 mm high, this one-panel-wide (1PW) cover features horizontal device slots for installations incorporating rail-mounted electrical equipment.
Identified by ABB order code 2CPX062810R9999, the AS15 belongs to the DESUJ Sub Distribution product group and forms part of the ABB Striebel & John interior expansion system. It is designed for a five-row configuration with a nominal row spacing of 125 mm, providing a matching cover format for the specified distribution board arrangement.
Manufactured from plastic in light grey RAL 7035, the ABB AS15 features a 90-degree press-and-turn closure for securing the cover. The product has a listed IP2XC protection classification and an external depth of 26.5 mm.
Supplied as one cover per pack, the AS15 is suitable for professional panel building, new distribution board installations, refurbishment and replacement of matching ABB covers. Its model-specific dimensions and slotted design help installers select the correct component for compatible electrical enclosure assemblies.
Key Advantages
- 250 × 750 mm cover format for compatible single-field distribution boards.
- One-panel-wide (1PW) design for the corresponding ABB enclosure layout.
- Five-row configuration accommodates the specified distribution board arrangement.
- Horizontal device slots provide the intended front access openings for compatible rail-mounted devices.
- 125 mm row spacing matches the relevant ABB cover system.
- 90-degree press-and-turn closure provides a manufacturer-designated fastening method.
- IP2XC classification for the specified installation configuration.
- Plastic construction provides a dedicated electrical distribution board covering component.
- Light grey RAL 7035 finish complements matching ABB enclosure accessories.
- 26.5 mm external depth supports the specified cover geometry.
- Suitable for new electrical panel installations and replacement projects.
- Supplied as one cover per standard pack.
Key Features
- ABB AS15 Slotted Cover.
- ABB order code: 2CPX062810R9999.
- Product group: DESUJ Sub Distribution.
- Product family: ABB interior expansion system.
- Product type: Slotted distribution board cover.
- Panel width: 1PW / 1 field.
- External width: 250 mm.
- External height: 750 mm.
- External depth: 26.5 mm.
- Number of rows: 5.
- Nominal row spacing: 125 mm.
- Cover design: With horizontal device slots.
- Material: Plastic.
- Colour: Light grey RAL 7035.
- Closure: 90-degree press-and-turn.
- Protection classification: IP2XC.
- Quick locking: Yes.
- Hinged: No.
- Transparent: No.
- Packaging quantity: 1 piece.
Five-Row Slotted Cover for Rail-Mounted Devices
The ABB AS15 is part of a cover range designed for electrical distribution assemblies containing rail-mounted devices. Its horizontal slots are intended to align with the corresponding device positions, providing access to the operating faces of suitable equipment while covering the surrounding internal mounting area.
The AS15 has a five-row configuration with 125 mm nominal row spacing. This spacing is a key consideration when selecting the correct cover for an ABB distribution board. The number of rows, cover height and underlying mounting arrangement must correspond to the complete assembly.
With its 250 mm single-field width, the AS15 is suited to the specified one-panel-wide format. Installers should verify the location of device openings, the internal equipment arrangement and the required blanking accessories before fitting the cover.
IP2XC Protection and Press-and-Turn Fastening
The ABB AS15 is listed with an IP2XC protection classification. This relates to the specified degree of protection against access to hazardous parts and the ingress of solid objects. The completed electrical assembly must be installed correctly to achieve its intended protective characteristics.
The cover features a 90-degree press-and-turn closure. This manufacturer-designated fastening arrangement helps secure the cover in its intended position and allows it to be fitted as part of a compatible ABB distribution board system.
Because the AS15 contains device slots, any unused openings must be addressed using suitable manufacturer-approved components where required. The protection of the finished enclosure depends on the cover, internal equipment, associated accessories and correct installation.
250 × 750 mm Dimensions and Light Grey RAL 7035 Finish
The ABB AS15 has external dimensions of 250 mm wide × 750 mm high × 26.5 mm deep. These measurements identify the cover's physical format and help distinguish it from shorter or wider models in the same ABB accessory range.
Its plastic construction and light grey RAL 7035 finish provide a consistent appearance alongside compatible ABB electrical distribution components. The cover is non-transparent and non-hinged, with access and fastening provided through the specified cover design.
For replacement work, dimensions should be checked together with the model reference and fixing arrangement. A cover of similar overall size may not have the same device slots or mounting compatibility, making the exact AS15 / 2CPX062810R9999 identification important.
The ABB single-field cover range includes slotted and unslotted options in several heights. Related models include:
- ABB AS11: Slotted cover, 250 × 150 mm; order code 2CPX062802R9999.
- ABB AS12: Slotted cover, 250 × 300 mm; order code 2CPX062804R9999.
- ABB AS13: Slotted cover, 250 × 450 mm; order code 2CPX062806R9999.
- ABB AS14: Slotted cover, 250 × 600 mm; order code 2CPX062808R9999.
- ABB AS15: Slotted cover, 250 × 750 mm; order code 2CPX062810R9999.
- ABB AG15: Unslotted cover, 250 × 750 mm; order code 2CPX062809R9999.
The AS15 is the five-row slotted option in this one-field-wide series. The AG15 provides an unslotted alternative of the same nominal width and height for installations requiring a closed cover rather than device openings.
Typical Applications
- Compatible ABB electrical distribution board assemblies.
- Single-field-width electrical distribution enclosures.
- Five-row distribution board interiors.
- Rail-mounted electrical device installations.
- Low-voltage sub-distribution boards.
- Commercial electrical distribution cabinets.
- Industrial electrical distribution assemblies.
- Electrical switchboard manufacturing.
- Front covering of compatible modular device arrangements.
- Replacement of matching ABB AS15 slotted covers.
- Electrical enclosure refurbishment projects.
- Professional panel-building and maintenance.
- Installations requiring a 250 × 750 mm slotted front cover.
