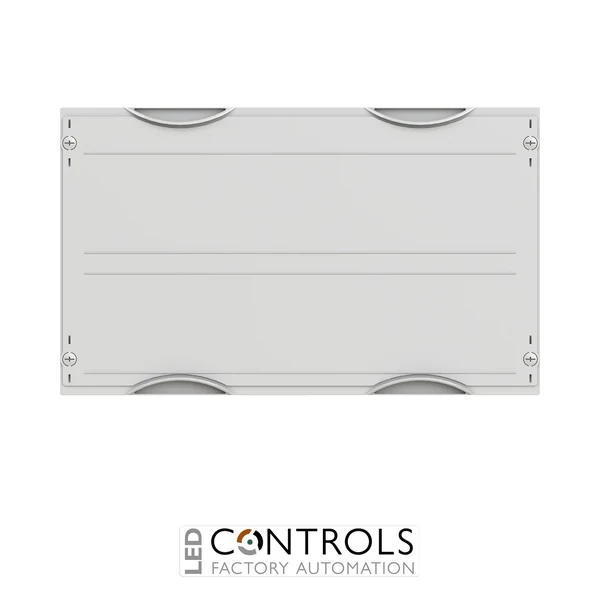

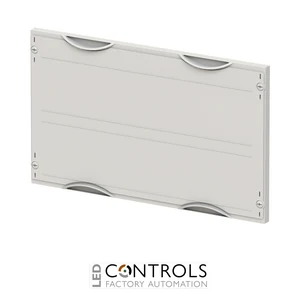

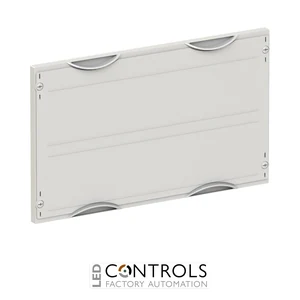

Why Choose the ABB AG22 Solid Cover 500 × 300 mm?
The ABB AG22 is a purpose-designed solid cover for low-voltage electrical distribution boards, providing protective coverage and a neat, professional finish for compatible electrical distribution assemblies. As part of the ABB DESUJ Sub Distribution product range, this cover is designed for electrical panel builders, contractors and installers requiring a dedicated blank cover for distribution board construction and maintenance.
The AG22 features a solid, non-slotted cover design, making it suitable for covering designated areas of electrical distribution assemblies where no device openings are required. Its construction helps conceal internal components and unused installation spaces while supporting an organised distribution board layout. The solid design is particularly useful in electrical panels where a continuous cover surface is preferred.
With nominal dimensions of 500 mm wide × 300 mm high and a 2PW configuration, the ABB AG22 is intended for integration into compatible ABB sub-distribution assemblies. Identified by ABB order code 2CPX062813R9999, this cover provides a practical solution for electrical switchboard construction, panel refurbishment and low-voltage distribution equipment installations.
Key Advantages
- Purpose-designed solid cover for electrical distribution board assemblies.
- 500 mm width × 300 mm height for compatible panel configurations.
- 2PW configuration for suitable ABB sub-distribution arrangements.
- Solid, non-slotted construction provides continuous coverage of designated panel areas.
- Helps conceal unused installation spaces and internal distribution components.
- Supports an organised and professional electrical panel appearance.
- Suitable for compatible ABB low-voltage sub-distribution systems.
- Useful for new electrical panel construction, modifications and refurbishment projects.
Key Features
- ABB AG22 solid distribution board cover.
- ABB DESUJ Sub Distribution product range.
- 500 mm nominal width.
- 300 mm nominal height.
- 2PW panel configuration.
- Solid cover design without pre-formed device slots.
- Designed to cover designated areas within compatible distribution assemblies.
- Helps provide protective separation between accessible panel areas and internal equipment when correctly installed.
- Supports organised electrical distribution panel construction.
- Suitable for compatible low-voltage electrical distribution installations.
- ABB manufacturer order code: 2CPX062813R9999.
Reliable Protective Coverage for Electrical Distribution Systems
Electrical distribution boards require appropriately selected covers to provide separation between accessible areas and internal electrical equipment. Solid covers such as the ABB AG22 are particularly useful where designated panel sections do not require openings for operating devices, allowing unused spaces and internal components to remain covered.
The ABB AG22 is designed for compatible sub-distribution assemblies and provides a continuous cover surface measuring 500 mm × 300 mm. Its 2PW configuration supports integration into suitable ABB distribution board layouts. Correct selection and installation of the cover help maintain the intended panel arrangement, while the overall protection rating and electrical safety of the completed assembly depend on all installed components and the applicable installation requirements.
Typical Applications
- Compatible ABB low-voltage electrical distribution boards.
- Electrical sub-distribution panel assemblies.
- Blanking and covering unused distribution board sections.
- Commercial building electrical distribution systems.
- Industrial electrical switchboards and distribution panels.
- Electrical control cabinet and panel construction.
- Distribution board refurbishment and modifications.
- Replacement solid cover installations in compatible ABB assemblies.
