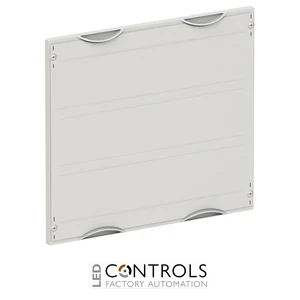

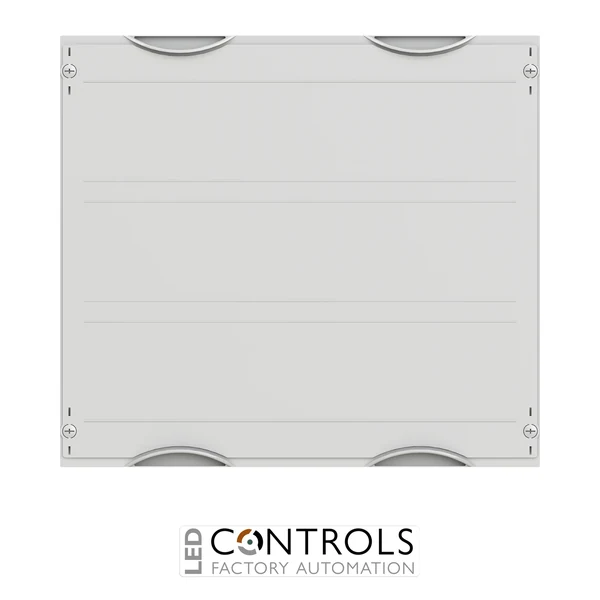

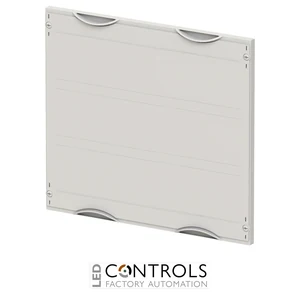

Why Choose the ABB AG23 Solid Cover 500 × 450 mm 2PW?
The ABB AG23 is a purpose-designed solid cover for electrical distribution boards, intended for use with compatible low-voltage electrical distribution assemblies. Manufactured by ABB and belonging to the DESUJ Sub Distribution product group, this cover provides a dedicated solution for professional electrical panel construction, switchgear assembly and distribution board installations requiring a solid cover section.
Featuring nominal dimensions of 500 mm wide × 450 mm high, the AG23 is specified for a 2PW cover configuration. Its solid design provides an uninterrupted covering surface for compatible distribution board sections, making it suitable for applications where a blank cover is required rather than a slotted cover with openings for device operation.
Identified by ABB order code 2CPX062815R9999, the AG23 is a practical accessory for electrical contractors, panel builders and maintenance engineers working with compatible ABB sub-distribution equipment. Its 500 × 450 mm format makes it relevant to new installations, distribution board assembly, equipment refurbishment and replacement applications where this specific ABB cover is required.
Key Advantages
- Purpose-designed solid cover for compatible electrical distribution assemblies.
- 500 mm nominal width for the specified ABB cover arrangement.
- 450 mm nominal height for compatible distribution board sections.
- 2PW configuration for the corresponding ABB distribution cover system.
- Solid cover design provides a continuous surface without designated device operating slots.
- Helps separate covered electrical equipment from surrounding panel areas when correctly installed.
- Supports a neat, consistent and organised electrical distribution board layout.
- Designed for integration with compatible ABB sub-distribution equipment.
- Suitable for professional panel construction, maintenance and refurbishment.
- Genuine ABB product identification supports accurate accessory selection and replacement.
Key Features
- ABB AG23 solid cover for electrical distribution equipment.
- ABB order code 2CPX062815R9999.
- DESUJ Sub Distribution product group.
- 500 mm nominal cover width.
- 450 mm nominal cover height.
- 500 × 450 mm nominal cover dimensions (W × H).
- 2PW cover configuration.
- Solid, uninterrupted cover format.
- Designed for compatible ABB low-voltage electrical distribution assemblies.
- Suitable for covering designated blank sections or compatible equipment compartments.
- Supports structured electrical panel assembly and equipment coverage.
- Suitable for replacement applications where the AG23 is specified.
Reliable Solid Covering for Electrical Distribution Systems
Solid covers are important components in the construction of low-voltage electrical distribution boards. They provide a continuous covering surface for compatible equipment sections, helping separate internal electrical components from surrounding areas. Correctly selected covers also contribute to the intended appearance, layout and mechanical arrangement of a completed electrical panel.
The ABB AG23 combines a 500 mm width with a 450 mm height and is designated for a 2PW cover arrangement. Its rectangular format is intended for compatible distribution board sections requiring a solid cover. Unlike slotted covers designed to accommodate device operating openings, the AG23 provides a continuous cover surface for the specified installation.
As part of the ABB DESUJ Sub Distribution accessory range, the AG23 supports professional panel-building, switchgear assembly and electrical maintenance. Selecting the correct solid cover helps maintain the intended equipment arrangement and provides a consistent finish across compatible distribution board sections. The AG23 may be used in new electrical installations or as a replacement where the existing equipment specification identifies this model.
Before installation, verify the 500 × 450 mm dimensions, 2PW configuration, mounting positions, fixing hardware and compatibility with the intended ABB distribution board against the manufacturer's technical documentation. The AG23 is a mechanical cover accessory rather than a standalone electrical protective device. Any required ingress protection rating or protection against contact with live parts must be established for the complete installed assembly.
Typical Applications
- Compatible ABB low-voltage electrical distribution boards.
- Electrical distribution assemblies requiring a 2PW solid cover.
- Covering designated blank sections within compatible electrical panels.
- Commercial building electrical distribution installations.
- Industrial switchgear and power distribution panels.
- Modular electrical distribution equipment assembly.
- Professional electrical panel manufacturing and installation.
- Distribution board refurbishment and solid cover replacement.
- OEM electrical enclosure and switchgear construction.
