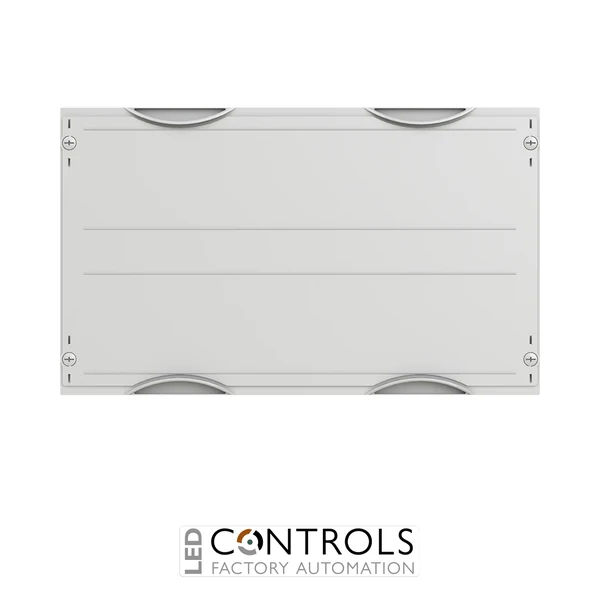

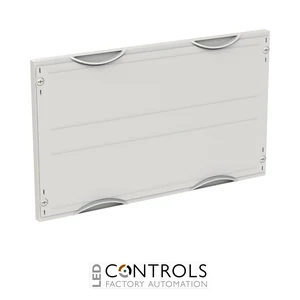

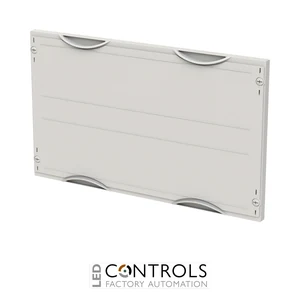

Why Choose the ABB AG222 Solid Cover 500 x 300 mm?
The ABB AG222 (2CPX062839R9999) is a durable solid distribution board cover designed for electrical sub-distribution assemblies and modular switchgear installations. Part of the ABB Striebel & John CombiLine interior expansion system, this cover provides a practical solution for closing designated sections of electrical distribution panels while maintaining a neat, professional appearance.
Featuring a 500 mm width and 300 mm height, the AG222 is designed for two-panel-width (2PW) distribution board configurations. Its solid, unslotted construction provides continuous coverage over the designated installation area, helping restrict accidental contact with internal electrical components when correctly installed within a compatible assembly.
Manufactured from RAL 7035 light grey plastic, the AG222 features a convenient 90-degree press-and-turn fastening system for secure installation and maintenance access. With an IP2XC protection classification, two-row arrangement and nominal row spacing of 150 mm, this cover supports professional electrical distribution board construction, refurbishment and maintenance.
Key Advantages
- Solid, unslotted cover design provides continuous coverage of designated electrical distribution board sections.
- 500 mm width and 300 mm height suit compatible two-field electrical distribution assemblies.
- Two-panel-width (2PW) configuration supports modular switchgear panel construction.
- IP2XC protection classification contributes to protection against access to hazardous internal parts when correctly installed.
- 90-degree press-and-turn fastening system simplifies secure installation and maintenance access.
- RAL 7035 light grey finish provides a consistent appearance within compatible distribution boards.
- Durable plastic construction offers a practical protective covering for electrical panel interiors.
- Designed for integration with the ABB Striebel & John CombiLine system.
Key Features
- ABB AG222 solid distribution board cover.
- ABB manufacturer order code: 2CPX062839R9999.
- 500 mm nominal width.
- 300 mm nominal height.
- 26.5 mm depth.
- Two-panel-width (2PW) configuration.
- Solid, unslotted front-cover construction.
- Two-row distribution panel arrangement.
- 150 mm nominal row spacing.
- IP2XC protection classification.
- 90-degree press-and-turn closure.
- RAL 7035 light grey plastic construction.
- Non-transparent design without device access openings.
- Suitable for compatible modular electrical distribution board interiors.
Reliable Protection for Electrical Distribution Board Interiors
The ABB AG222 solid cover is designed to provide a protective front barrier within compatible electrical distribution assemblies. Its unslotted construction is particularly useful where continuous coverage is required rather than openings for externally accessible modular devices. When correctly installed, the cover helps separate accessible panel areas from internal electrical equipment and contributes to an orderly distribution board layout.
As part of the ABB Striebel & John CombiLine interior expansion system, the AG222 supports modular panel construction and maintenance. Its two-field dimensions, two-row arrangement and quarter-turn fastening system allow electrical installers and panel builders to incorporate the cover into suitable distribution board configurations. Compatibility with the selected enclosure, support brackets and mounting components should be checked during assembly design.
Typical Applications
- Electrical sub-distribution boards in commercial and industrial buildings.
- ABB Striebel & John CombiLine modular distribution assemblies.
- Solid covering of designated distribution board interior sections.
- Low-voltage switchgear and electrical panel construction.
- Electrical distribution board refurbishment and maintenance.
- Building electrical infrastructure and technical service rooms.
- OEM electrical panel building and modular enclosure integration.
- Two-field distribution board installations requiring an unslotted protective cover.
