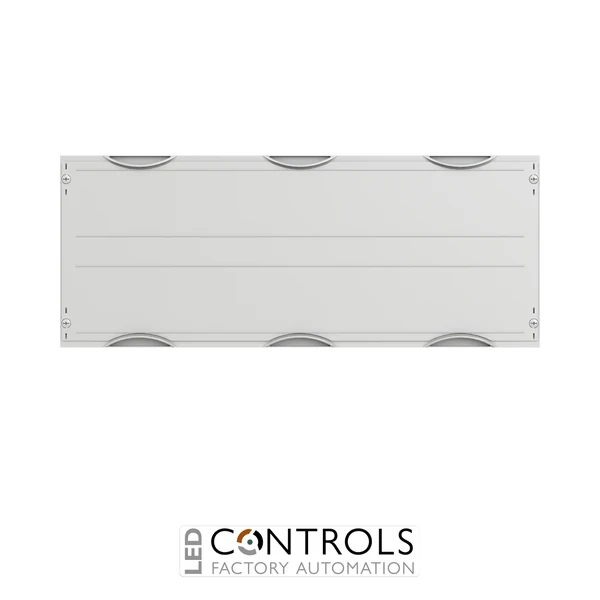

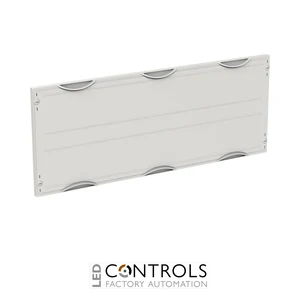

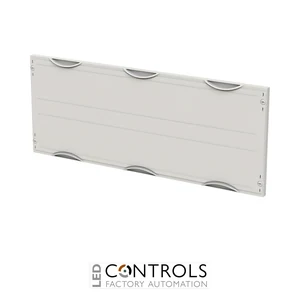

Why Choose the ABB AG232 Solid Cover 750 × 300 mm 3PW?
The ABB AG232 is a purpose-designed solid cover for electrical distribution boards, intended for use with compatible low-voltage electrical distribution assemblies. Manufactured by ABB and belonging to the DESUJ Sub Distribution product group, this accessory provides a dedicated covering solution for professional electrical panel builders, electrical contractors and switchgear manufacturers.
Featuring nominal dimensions of 750 mm wide × 300 mm high, the AG232 is specified for a 3PW cover configuration. Its solid design provides a continuous covering surface without designated device operating slots, making it suitable for compatible distribution board sections where a blank cover is required rather than a slotted cover with equipment access openings.
Identified by ABB order code 2CPX062847R9999, the AG232 is a practical accessory for new electrical installations, distribution board construction, refurbishment and replacement work. Its combination of a 750 mm width, 300 mm height and 3PW designation supports accurate component selection when assembling or maintaining compatible ABB sub-distribution equipment.
Key Advantages
- Purpose-designed solid cover for compatible ABB electrical distribution assemblies.
- 750 mm nominal width for the specified distribution board cover arrangement.
- 300 mm nominal height for compatible electrical panel sections.
- 3PW cover configuration for the corresponding ABB distribution system.
- Solid design provides an uninterrupted covering surface without designated device operating slots.
- Suitable for covering designated blank sections and compatible equipment compartments.
- Helps separate covered electrical equipment from surrounding panel areas when correctly installed.
- Wide rectangular format suits compatible distribution board sections requiring the specified cover dimensions.
- Supports a neat, consistent and organised electrical distribution board layout.
- Designed for integration with compatible ABB sub-distribution equipment.
- Genuine ABB model and order code support accurate accessory selection and replacement.
Key Features
- ABB AG232 solid cover for electrical distribution equipment.
- ABB order code 2CPX062847R9999.
- DESUJ Sub Distribution product group.
- 750 mm nominal cover width.
- 300 mm nominal cover height.
- 750 × 300 mm nominal cover dimensions (W × H).
- 3PW cover configuration.
- Solid, uninterrupted cover design.
- Wide rectangular cover format.
- Intended for compatible ABB low-voltage electrical distribution assemblies.
- Provides a dedicated cover for compatible panel sections requiring a solid covering surface.
- Supports structured electrical panel construction and equipment coverage.
- Suitable for replacement applications where the AG232 is the specified cover.
Reliable Solid Covering for Electrical Distribution Systems
Solid covers are important mechanical accessories in low-voltage electrical distribution board construction. They provide a continuous covering surface for compatible equipment sections, helping maintain the intended separation between internal electrical components and surrounding panel areas. Correct cover selection also contributes to an organised equipment layout and a consistent finish across the completed electrical distribution assembly.
The ABB AG232 combines a 750 mm width with a 300 mm height and is designated for a 3PW cover arrangement. Its wide rectangular format makes it relevant to compatible distribution board sections requiring a solid cover of these dimensions. Unlike slotted covers that incorporate openings for device operation, the AG232 provides an uninterrupted covering surface for the specified installation.
As part of the ABB DESUJ Sub Distribution accessory range, the AG232 supports professional panel-building, switchgear assembly and electrical maintenance. Selecting the correct solid cover helps maintain consistency with the intended distribution board configuration and reduces the risk of fitting a component with unsuitable dimensions or an inappropriate cover design.
The AG232 and other ABB solid covers may share similar nominal dimensions or configuration designations. However, matching dimensions alone do not establish interchangeability. The specific ABB order code, product designation, mounting arrangement and applicable assembly documentation should be checked before selecting a replacement cover.
Before installation, verify the 750 × 300 mm dimensions, 3PW configuration, mounting positions, fixing hardware and compatibility with the intended ABB distribution board against the manufacturer's technical documentation. The AG232 is a mechanical cover accessory rather than a standalone electrical protective device. Any required ingress protection rating, protection against contact with live parts or compliance with applicable electrical assembly standards must be established for the complete installed system.
Typical Applications
- Compatible ABB low-voltage electrical distribution boards.
- Electrical distribution assemblies requiring a 3PW solid cover.
- Covering designated blank sections within compatible electrical panels.
- Distribution board sections requiring a 750 × 300 mm solid cover.
- Commercial building electrical distribution installations.
- Industrial switchgear and power distribution panels.
- Modular electrical distribution equipment assembly.
- Professional electrical panel manufacturing and installation.
- Distribution board refurbishment and solid cover replacement.
- OEM electrical enclosure and switchgear construction.
