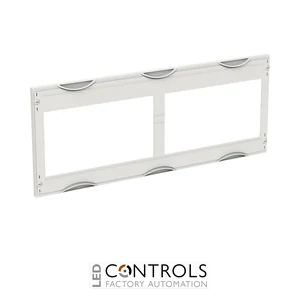

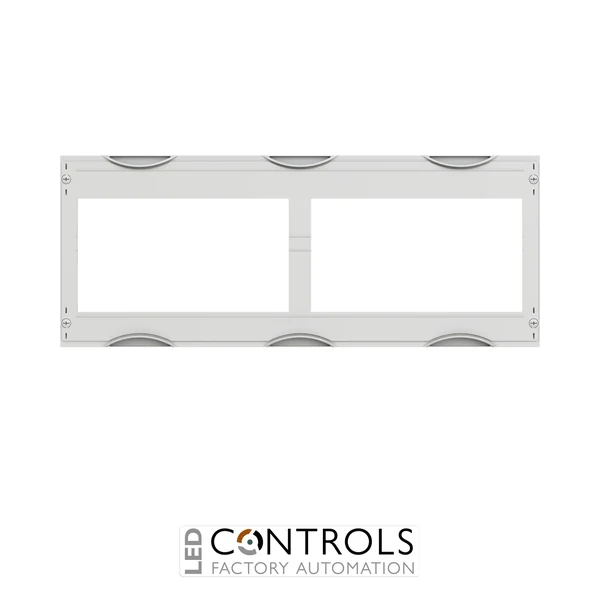

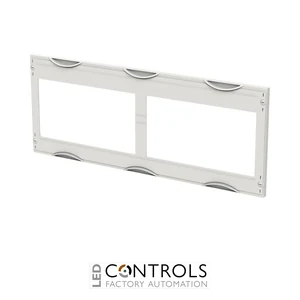

Why Choose the ABB AG84 6 × NH00 Cover 750 × 300 mm 3PW?
The ABB AG84 is a purpose-designed NH00 fuse equipment cover for electrical distribution assemblies, intended to accommodate a configuration of six NH size 00 fuse equipment positions within compatible low-voltage distribution panels. As part of ABB's DESUJ Sub Distribution product range, this cover supports the construction, organisation and maintenance of electrical distribution systems incorporating NH fuse equipment.
The AG84 features a 6 × NH00 cover configuration, providing a dedicated panel covering arrangement for six NH00 equipment positions. Its design helps electrical panel builders organise multiple fuse equipment locations within compatible distribution assemblies while maintaining a consistent front-facing installation. The cover is an assembly accessory rather than a fuse holder, fuse-switch disconnector or electrical protective device.
With nominal dimensions of 750 mm wide × 300 mm high and a 3PW panel-width configuration, the ABB AG84 is designed for compatible ABB sub-distribution arrangements requiring six NH00 equipment positions. Identified by ABB order code 2CPX062880R9999, it provides a practical solution for electrical distribution board construction, equipment integration, replacement and refurbishment projects.
Key Advantages
- Dedicated 6 × NH00 cover configuration for compatible NH size 00 fuse equipment arrangements.
- 750 mm × 300 mm nominal dimensions for the specified distribution panel format.
- 3PW panel-width configuration supports compatible three-panel-width distribution layouts.
- Accommodates the designated covering arrangement for six NH00 fuse equipment positions.
- Helps organise multiple fuse equipment locations within electrical distribution boards.
- Provides a consistent and professional front-facing panel arrangement.
- Supports integration with compatible ABB sub-distribution system components.
- Suitable for new electrical distribution assemblies, maintenance and replacement applications.
- ABB-manufactured component for compatible electrical distribution equipment.
Key Features
- ABB AG84 NH00 equipment cover for electrical sub-distribution assemblies.
- 6 × NH00 configuration for six NH size 00 equipment positions.
- 750 mm nominal width.
- 300 mm nominal height.
- 3PW panel-width designation.
- Dedicated covering arrangement for compatible NH00 fuse equipment installations.
- Designed for integration with matching ABB distribution system components.
- Supports organised positioning of fuse equipment within electrical distribution panels.
- Suitable for panel building, electrical assembly refurbishment and replacement projects.
- ABB order code: 2CPX062880R9999.
Reliable Integration for NH00 Fuse Distribution Assemblies
NH fuse systems are commonly used in low-voltage electrical distribution installations where appropriately rated fuse links and associated equipment provide overcurrent protection and, where suitable switching devices are installed, circuit isolation. NH size 00 identifies a standardised fuse-link size used with compatible fuse bases and fuse-switch disconnectors. Purpose-designed equipment covers help provide an organised front-facing arrangement around these components.
The ABB AG84 is specifically identified for a six-position NH00 configuration, with nominal dimensions of 750 mm × 300 mm and a 3PW panel-width designation. These characteristics allow electrical panel builders to identify the corresponding cover for compatible ABB sub-distribution arrangements incorporating multiple NH00 fuse equipment positions.
Correct selection of the cover and associated fuse equipment is essential for a safe and functional installation. The AG84 itself does not provide overcurrent protection or electrical isolation; these functions depend on separately installed protective and switching devices. The completed assembly's degree of protection, electrical clearances, accessibility and operational safety depend on the complete enclosure design, equipment compatibility and correct installation.
Typical Applications
- Low-voltage electrical distribution boards incorporating NH00 fuse equipment.
- Commercial building electrical power distribution installations.
- Industrial electrical distribution panels.
- Compatible ABB sub-distribution assemblies.
- NH00 fuse-switch disconnector panel arrangements.
- Electrical switchgear and fused distribution equipment assemblies.
- Multi-position fuse equipment panel construction.
- Electrical panel building and system integration projects.
- Replacement of compatible six-position NH00 equipment covers.
- Electrical distribution board refurbishment and maintenance.
- OEM electrical power distribution equipment construction.
