Why Choose the ABB AG85 12 × NH00 Cover 750 × 600 mm 3PW?

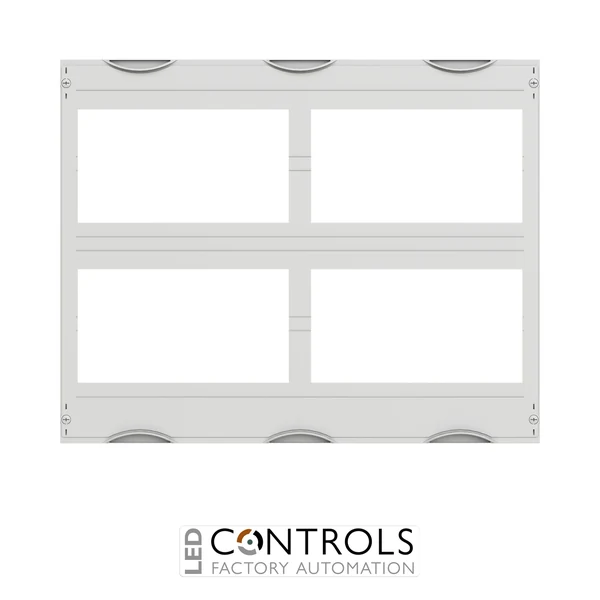

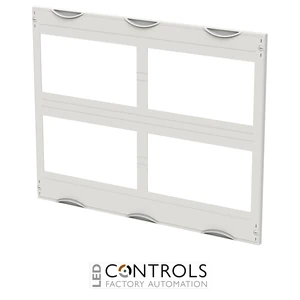

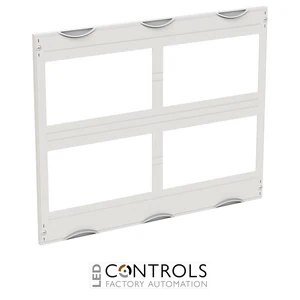

The ABB AG85 (order code 2CPX062881R9999) is a 12 × NH00 cover measuring 750 mm wide × 600 mm high, with a 3PW designation. Intended for compatible ABB electrical distribution assemblies, the AG85 is a specialist enclosure cover accessory identified for configurations involving twelve NH00 positions.
As part of ABB's DESUJ Sub Distribution product group, the AG85 provides a manufacturer-identified cover option for suitable low-voltage electrical distribution equipment. The NH00 designation is associated with NH size 00 fuse equipment, while the 12 × NH00 description identifies the cover's intended arrangement. The exact opening geometry, equipment layout and supported fuse-switch or fuse-holder references must be verified against ABB's technical documentation.
With a nominal width of 750 mm, a nominal height of 600 mm and a 3PW cover designation, the ABB AG85 can be accurately identified for compatible enclosure projects. Whether required for new switchgear construction, distribution board assembly, equipment refurbishment or replacement of a matching cover, its manufacturer order code 2CPX062881R9999 supports precise specification and procurement.
Key Advantages
- Genuine ABB electrical distribution cover accessory for compatible equipment assemblies.
- Specifically identified as a 12 × NH00 cover.
- Supports manufacturer-specified cover arrangements involving twelve NH00 positions.
- 750 mm width × 600 mm height provides clearly identified nominal cover dimensions.
- 3PW designation helps identify the intended cover configuration.
- Dedicated cover format for suitable NH00-related distribution equipment layouts.
- Supports coordinated selection of compatible enclosure covers, frames and mounting accessories.
- Practical for electrical panel building, fuse distribution assemblies and switchgear construction.
- Useful for refurbishment and replacement of matching ABB enclosure cover components.
- Part of ABB's DESUJ Sub Distribution product group.
- Manufacturer order code 2CPX062881R9999 helps prevent confusion with other ABB cover sizes and configurations.
Key Features
- ABB AG85 12 × NH00 cover.
- Manufacturer order code: 2CPX062881R9999.
- Product group: DESUJ Sub Distribution.
- Product type: Electrical distribution cover.
- NH equipment designation: NH00.
- Specified arrangement: 12 × NH00.
- Nominal width: 750 mm.
- Nominal height: 600 mm.
- Nominal cover dimensions: 750 × 600 mm (W × H).
- Cover designation: 3PW.
- Nominal cover format: Rectangular.
- Primary application: Compatible NH00-related electrical distribution cover assemblies.
- Intended for integration with suitable ABB sub-distribution equipment.
- Supports cover configurations specified by the equipment manufacturer.
- Suitable for consideration in new installations and matching replacement applications.
- Manufacturer-specific model identification distinguishes the AG85 from general-purpose solid and slotted covers.
Understanding the ABB AG85 12 × NH00 Cover Configuration
NH fuse equipment is widely associated with low-voltage electrical distribution systems, where appropriately selected fuse components form part of a coordinated electrical protection arrangement. The ABB AG85 is specifically described as a 12 × NH00 cover, distinguishing it from conventional solid covers and general-purpose slotted covers. This description identifies the intended NH00-related cover arrangement, but does not establish that any NH fuse equipment is supplied with the cover.
The NH00 designation refers to the size category of associated NH fuse equipment. However, the supplied AG85 specification does not identify particular compatible fuse-switch disconnectors, fuse bases, fuse-link ratings or individual equipment references. It also does not confirm the number, shape or precise location of cover openings. These details should be checked against ABB's assembly drawings before selecting the cover for a particular NH00 installation.
The AG85 has a specified 750 mm nominal width and 600 mm nominal height, together with a 3PW designation. These details are useful for distinguishing it from other ABB distribution covers, but they do not independently confirm compatibility with every enclosure or NH00 device arrangement. The exact meaning of the PW designation, fixing points and associated mounting components should be verified using ABB's approved system documentation.
When specifying the ABB AG85, electrical panel builders should confirm the intended enclosure, the complete NH00 equipment layout, required clearances and the approved cover installation method. The completed assembly's electrical safety, accessibility and degree of protection depend on the correct combination of components and compliance with the relevant installation requirements.
Typical Applications
- Compatible ABB electrical sub-distribution boards.
- Distribution assemblies incorporating manufacturer-approved NH00 equipment layouts.
- Electrical enclosures requiring a 12 × NH00 cover configuration.
- Compatible low-voltage fuse distribution assemblies.
- Industrial electrical switchgear and distribution panels.
- Electrical panel building and switchgear manufacturing.
- Integration of compatible NH00 equipment covers and enclosure components.
- Commercial building electrical distribution installations.
- Industrial electrical cabinet assembly projects.
- Electrical distribution equipment refurbishment and maintenance.
- Replacement of matching ABB AG85 cover components.
- OEM electrical distribution equipment manufacturing and system integration.
