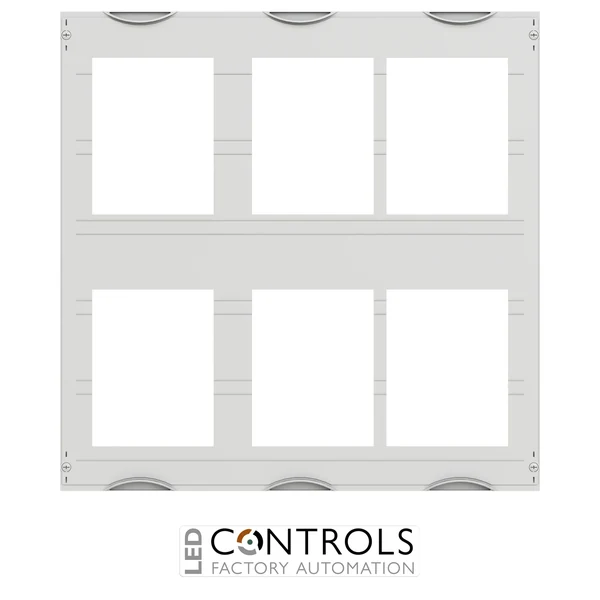

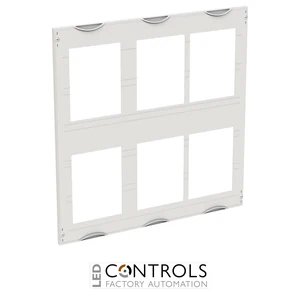

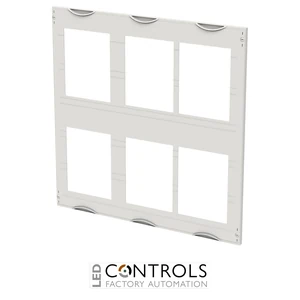

Why Choose the ABB AG91 6 × NH1 Cover 750 × 750 mm?
The ABB AG91 is a dedicated NH1 fuse switch cover for low-voltage electrical distribution assemblies, designed for compatible panel configurations incorporating six NH1 fuse switch positions. Part of the ABB DESUJ Sub Distribution product range, this cover provides a purpose-specific solution for electrical panel builders, switchboard manufacturers and installers working with ABB distribution systems.
The AG91 features a 6 × NH1 cover configuration, making it suitable for designated distribution board sections accommodating six compatible NH1 fuse switch units. Unlike general-purpose solid or slotted covers, the AG91 is specifically identified for NH1 equipment arrangements, helping panel builders select the appropriate cover for their intended fuse switch installation. Its dedicated configuration supports an organised distribution board layout and provides coverage around the designated equipment area when correctly installed.
With nominal dimensions of 750 mm wide × 750 mm high and a 3PW configuration, the ABB AG91 is intended for compatible three-panel-width sub-distribution arrangements. Identified by ABB order code 2CPX062883R9999, it offers a practical solution for electrical distribution panel construction, NH fuse switch installations and switchboard refurbishment projects.
Key Advantages
- Purpose-designed cover for six NH1 fuse switch positions in compatible electrical distribution assemblies.
- 750 mm width × 750 mm height for designated distribution panel sections.
- 3PW configuration for suitable ABB sub-distribution arrangements.
- Dedicated 6 × NH1 design helps match the cover to the intended fuse switch equipment layout.
- Supports organised integration of multiple NH1 fuse switch units within electrical panels.
- Provides coverage around designated equipment areas when correctly installed.
- Large-format construction accommodates compatible distribution board layouts requiring an extended cover section.
- Supports a neat and professional electrical switchboard appearance.
- Suitable for compatible ABB DESUJ Sub Distribution systems.
- Useful for electrical panel construction, modifications and maintenance projects.
Key Features
- ABB AG91 NH1 distribution board cover.
- ABB DESUJ Sub Distribution product range.
- 6 × NH1 cover configuration.
- Designed for compatible arrangements incorporating six NH1 fuse switch positions.
- 750 mm nominal width.
- 750 mm nominal height.
- 3PW panel configuration.
- Dedicated cover format for NH1 fuse switch distribution applications.
- Supports professional electrical panel construction and equipment organisation.
- Intended for integration into compatible low-voltage sub-distribution assemblies.
- Suitable for switchboard construction, refurbishment and maintenance.
- ABB manufacturer order code: 2CPX062883R9999.
Dedicated NH1 Fuse Switch Coverage for Electrical Distribution Systems
NH fuse switch equipment is commonly used in low-voltage electrical distribution systems where fuse-based circuit protection and switching arrangements are required. Distribution board covers must be selected to suit the installed equipment and the panel's mechanical layout. The ABB AG91 is specifically identified as a 6 × NH1 cover, providing a dedicated covering solution for compatible assemblies incorporating six NH1 fuse switch positions. Its configuration helps panel builders organise multiple fuse switch units within a designated distribution board section.
The AG91 combines a 750 mm × 750 mm nominal cover size with a 3PW configuration, making it suitable for compatible ABB sub-distribution arrangements requiring coverage across three panel widths. Correct component selection helps maintain an organised installation and appropriate coverage around the fuse switch equipment. The cover itself does not provide fuse protection or switching functionality, and the electrical ratings, accessibility and protection level of the completed assembly depend on the installed fuse switch devices, enclosure system and applicable installation requirements.
Typical Applications
- Compatible ABB low-voltage electrical distribution boards.
- Distribution panel sections incorporating six NH1 fuse switch positions.
- Multiple NH1 fuse switch distribution assemblies.
- Commercial building electrical distribution systems.
- Industrial low-voltage switchboards.
- Electrical sub-distribution panel construction.
- Fuse-based electrical distribution equipment installations.
- Distribution board configurations requiring 750 mm wide NH1 equipment covers.
- Electrical panel modifications and refurbishment projects.
- Replacement NH1 equipment covers in compatible ABB assemblies.
