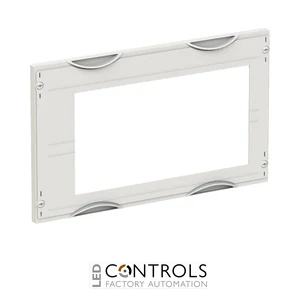

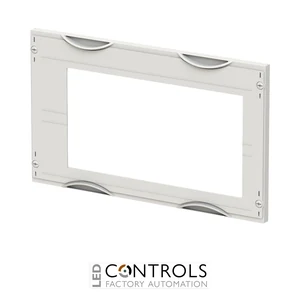

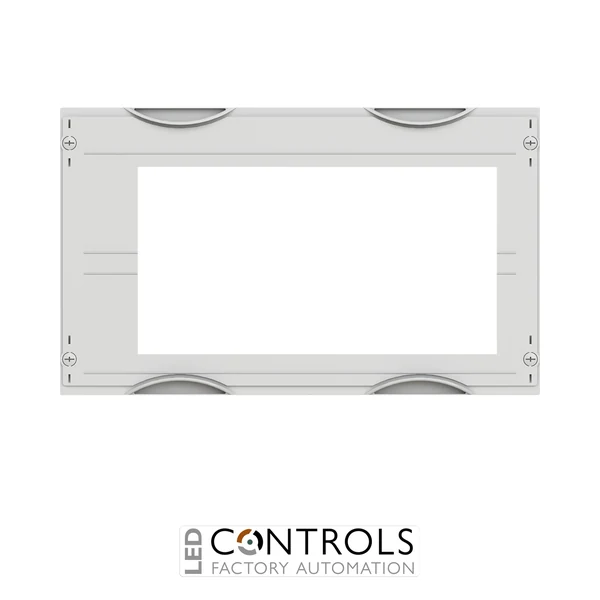

Why Choose the ABB AG172 42 × D02 Cover 500 × 300 mm 2PW?
The ABB AG172 is a purpose-designed D02 fuse equipment cover for electrical distribution boards, developed for use with compatible ABB sub-distribution assemblies. Part of the ABB DESUJ Sub Distribution product group, this cover provides a dedicated front panel arrangement for electrical distribution installations incorporating a 42 × D02 fuse equipment configuration.
Designed for electrical panel builders, contractors and maintenance professionals, the AG172 supports the organised integration of D02 fuse equipment within low-voltage electrical distribution systems. Its specialised configuration provides a covering solution for designated fuse distribution sections, helping maintain a consistent front panel appearance and an orderly arrangement of electrical protection equipment.
With nominal dimensions of 500 mm wide × 300 mm high, a 2PW two-field-width configuration and provision for 42 × D02 positions, the ABB AG172 is suitable for compatible distribution board assemblies requiring a dedicated D02 fuse equipment cover. Identified by ABB order code 2CPX062898R9999, this genuine ABB accessory supports professional electrical panel construction, extension and refurbishment.
Key Advantages
- Purpose-designed cover for D02 fuse equipment in electrical distribution boards.
- 42 × D02 configuration for compatible fuse equipment arrangements.
- 500 × 300 mm nominal dimensions for suitable electrical distribution panels.
- 2PW two-field-width configuration supports modular distribution board construction.
- Dedicated front cover arrangement for compatible D02 fuse equipment.
- Helps provide an organised and professional electrical distribution board appearance.
- Supports the integration of multiple fuse positions within a designated panel section.
- Suitable for electrical panel construction, maintenance and refurbishment.
- Genuine ABB electrical distribution accessory for compatible systems.
- Manufacturer identification through ABB order code 2CPX062898R9999.
Key Features
- ABB AG172 D02 distribution board cover.
- 42 × D02 fuse equipment arrangement.
- 500 mm nominal width.
- 300 mm nominal height.
- 2PW two-field-width configuration.
- Specialised cover design for compatible D02 fuse equipment.
- Designed for use with suitable ABB electrical sub-distribution assemblies.
- Supports organised installation of D02 fuse protection components.
- Compact cover height for designated electrical distribution sections.
- Provides a dedicated front covering for fuse equipment arrangements.
- Designed for integration with appropriate ABB enclosure and mounting components.
- ABB DESUJ Sub Distribution product group.
- Manufacturer order code: 2CPX062898R9999.
Reliable D02 Fuse Equipment Integration for Electrical Distribution Systems
D02 fuse equipment is used in low-voltage electrical installations requiring fuse-based circuit protection. D02 is a size designation within the NEOZED fuse system, with compatible fuse holders and switching accessories used in electrical distribution assemblies. Correctly selected front covers help accommodate these components while maintaining an organised distribution board layout.
The ABB AG172 D02 cover is designed for compatible sub-distribution assemblies requiring a 500 × 300 mm, 2PW cover arrangement with provision for 42 D02 positions. Its dedicated configuration supports the integration of multiple fuse positions into a designated electrical distribution board section.
The AG172 is a cover accessory rather than a complete fuse protection assembly. Associated D02 fuse holders, fuse links and other equipment must be selected separately according to the installation requirements and confirmed mechanical compatibility. Correct installation in accordance with ABB assembly documentation is essential to maintain the intended mechanical fit, accessibility and protection characteristics of the completed electrical distribution board.
Typical Applications
- ABB electrical sub-distribution board assemblies.
- Low-voltage D02 fuse distribution systems.
- Electrical panels incorporating compatible NEOZED D02 fuse equipment.
- Commercial electrical power distribution installations.
- Industrial electrical distribution cabinets.
- Fuse-protected outgoing circuit distribution arrangements.
- Two-field-width modular electrical panel construction.
- Electrical distribution board extension and reconfiguration projects.
- Electrical enclosure refurbishment and replacement cover installations.
- Professional electrical panel building and system integration.
