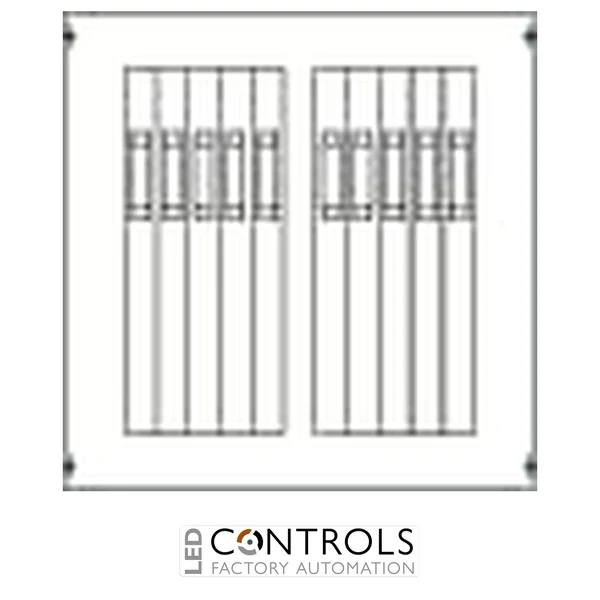

Why Choose the ABB AG178 XR Cover 750 × 750 mm?
The ABB AG178 is a dedicated XR distribution board cover designed for compatible low-voltage electrical sub-distribution assemblies. Part of the ABB DESUJ Sub Distribution product range, this cover provides a purpose-specific solution for electrical panel builders, switchboard manufacturers and installers requiring an XR-designated cover for professional electrical distribution installations.
The AG178 features an XR cover configuration, making it suitable for designated areas of compatible ABB distribution board systems. Its cover format supports an organised panel layout and provides coverage around the intended installation area when correctly fitted. The XR designation distinguishes this product from standard solid, slotted and NH fuse switch covers within the wider ABB sub-distribution equipment range.
With nominal dimensions of 750 mm wide × 750 mm high and a 3PW configuration, the ABB AG178 is intended for compatible three-panel-width distribution board arrangements. Identified by ABB order code 2CPX062904R9999, it provides a practical cover solution for electrical switchboard construction, distribution board modifications and refurbishment projects.
Key Advantages
- Purpose-designed XR cover for compatible ABB electrical distribution assemblies.
- 750 mm width × 750 mm height for designated distribution panel sections.
- 3PW configuration for suitable ABB sub-distribution arrangements.
- Dedicated XR cover designation helps identify the required component for compatible panel layouts.
- Provides coverage over designated distribution board areas when correctly installed.
- Supports an organised and professional electrical switchboard appearance.
- Large square-format cover accommodates compatible distribution board sections requiring extended horizontal and vertical coverage.
- Designed for integration into suitable ABB DESUJ Sub Distribution systems.
- Useful for electrical panel construction, modifications and maintenance projects.
Key Features
- ABB AG178 XR distribution board cover.
- ABB DESUJ Sub Distribution product range.
- XR cover configuration.
- 750 mm nominal width.
- 750 mm nominal height.
- 3PW panel configuration.
- Dedicated cover component for compatible ABB sub-distribution assemblies.
- Provides coverage for designated electrical distribution board sections.
- Large-format design for compatible three-panel-width installations.
- Supports professional electrical panel construction and equipment organisation.
- Suitable for compatible switchboard construction, refurbishment and maintenance applications.
- ABB manufacturer order code: 2CPX062904R9999.
Dedicated XR Cover Integration for Electrical Distribution Systems
Low-voltage electrical distribution assemblies require correctly selected covers to maintain the intended panel arrangement and provide coverage around internal equipment. Different cover configurations are used according to the electrical devices, installation layout and mechanical design of the distribution board. The ABB AG178 is specifically identified as an XR cover, making it a dedicated component for compatible ABB sub-distribution applications rather than a general-purpose replacement for other cover types.
The AG178 combines a 750 mm × 750 mm nominal cover size with a 3PW configuration, supporting compatible panel arrangements requiring coverage across a three-panel-width section. Correct component selection and installation help maintain an organised switchboard layout. The specific XR equipment compatibility, fixing arrangement and overall protection rating should be confirmed against the relevant ABB distribution assembly documentation before installation.
Typical Applications
- Compatible ABB low-voltage electrical distribution boards.
- Electrical sub-distribution panel assemblies.
- Distribution board sections requiring an XR-designated cover.
- Commercial building electrical distribution systems.
- Industrial low-voltage switchboards.
- Electrical control cabinet and panel construction.
- Compatible three-panel-width distribution board arrangements.
- Distribution board configurations requiring 750 mm wide XR covers.
- Electrical distribution panel modifications and refurbishment projects.
- Replacement XR cover installations in compatible ABB assemblies.
