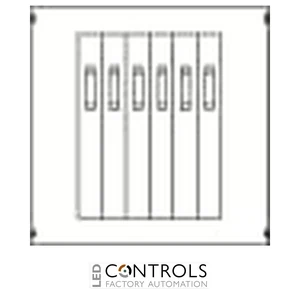

Why Choose the ABB AG180 XR Cover 750 × 750 mm 3PW?

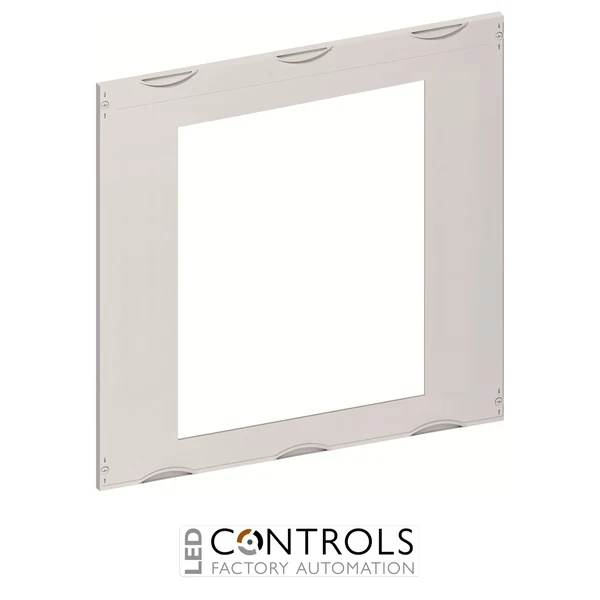

The ABB AG180 is an XR distribution board cover measuring 750 mm wide × 750 mm high, designed for use in compatible ABB electrical sub-distribution assemblies. Part of the ABB DESUJ Sub Distribution range, this cover provides a dedicated component for completing electrical distribution panels requiring the specified XR covering arrangement.
Featuring a 3PW configuration, the AG180 is intended for integration with the corresponding ABB panel-width arrangement. Its square 750 × 750 mm dimensions make it suitable for compatible distribution board layouts, supporting organised panel construction and a consistent front-panel finish.
Identified by ABB order code 2CPX062906R9999, the AG180 is a genuine ABB distribution accessory suitable for electrical contractors, switchboard manufacturers and maintenance professionals. It provides a practical covering solution for new installations, distribution board modifications and refurbishment projects where the specified XR cover is required.
Key Advantages
- Dedicated XR cover for compatible ABB electrical sub-distribution assemblies.
- 750 mm width × 750 mm height for the specified distribution board arrangement.
- 3PW configuration for integration with the corresponding ABB panel system.
- Helps provide a neat and consistent finish to electrical distribution equipment.
- Supports organised front-panel layouts within compatible switchboard assemblies.
- Suitable for new electrical installations, modifications and maintenance work.
- Provides a dedicated replacement option where the ABB AG180 cover is specified.
- Genuine ABB DESUJ Sub Distribution accessory for compatible electrical systems.
Key Features
- ABB DESUJ Sub Distribution range.
- AG180 XR cover for electrical distribution assemblies.
- 750 mm nominal width.
- 750 mm nominal height.
- 3PW panel configuration.
- Square cover format for the specified ABB distribution arrangement.
- Designed for compatible ABB XR distribution equipment.
- Dedicated covering component for electrical sub-distribution panels.
- Supports professional electrical panel assembly and refurbishment.
- Suitable for compatible commercial and industrial electrical installations.
- Manufacturer order code 2CPX062906R9999.
Technical Specifications
- Manufacturer: ABB
- Series: DESUJ Sub Distribution
- Model: AG180
- ABB order code: 2CPX062906R9999
- Product group: DESUJ Sub Distribution
- Product type: XR cover
- Product designation: AG180 XR Cover 750w x 750h 3PW
- Cover designation: XR
- Panel configuration: 3PW
- Nominal width: 750 mm
- Nominal height: 750 mm
- Dimensions (W × H): 750 × 750 mm
- Primary function: Covering a designated area of a compatible electrical distribution assembly
- Application: Electrical sub-distribution boards and switchboard assemblies
- Product category: Electrical distribution board covers and accessories
Professional Covering Solutions for Electrical Distribution Systems
Electrical distribution board covers such as the ABB AG180 form part of the overall panel assembly, providing a defined covering arrangement for compatible electrical distribution equipment. Selecting a cover with the correct dimensions and system designation helps maintain an organised layout and supports the intended construction of the electrical enclosure.
The ABB DESUJ Sub Distribution range includes accessories used in the configuration and assembly of electrical distribution systems. The AG180 is specifically designated as an XR cover with a 3PW configuration and dimensions of 750 × 750 mm, making it suitable for the corresponding ABB distribution board arrangement.
Before installation, the cover dimensions, mounting arrangement and compatibility with the intended enclosure should be checked against the relevant ABB documentation. The completed electrical assembly must meet its applicable safety, accessibility and enclosure protection requirements.
Typical Applications
- Compatible ABB XR electrical distribution assemblies.
- Low-voltage electrical sub-distribution board construction.
- Commercial electrical distribution installations.
- Industrial electrical switchboard assemblies.
- Electrical panel building and enclosure assembly.
- Distribution board refurbishment and maintenance.
- Replacement covers for compatible ABB distribution equipment.
- Building services electrical distribution systems.
- Electrical installations requiring a 3PW XR cover arrangement.
