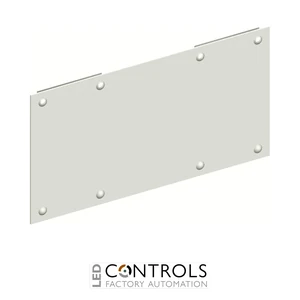

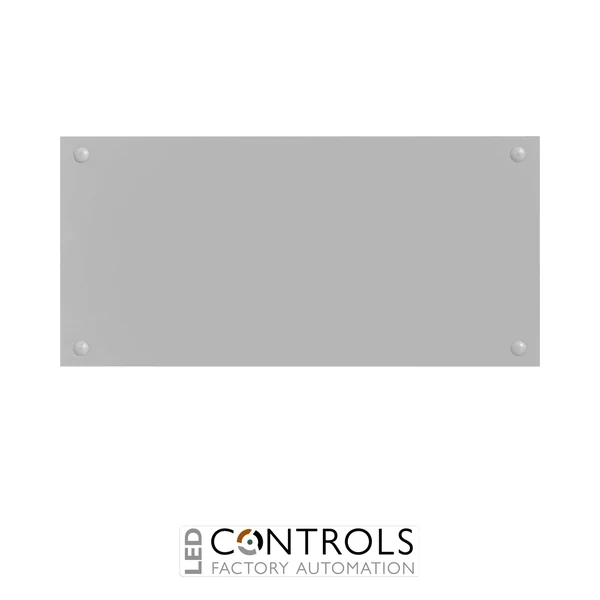

Why Choose the ABB ZH430 NH00 Triple Shutter Closed?
The ABB ZH430 (2CPX062957R9999) is a specialised NH00 triple-shutter accessory designed for compatible electrical sub-distribution assemblies. Part of the ABB DESUJ Sub Distribution product group, this component provides a dedicated closed-shutter arrangement for electrical distribution systems incorporating NH00-size equipment.
Featuring a triple-shutter configuration, the ZH430 is intended for applications requiring three shutter positions within a compatible NH00 equipment arrangement. Its closed configuration distinguishes it from alternative shutter designs, making accurate model selection important during switchgear construction, maintenance and replacement.
The ABB ZH430 NH00 Triple Shutter Closed supports professional electrical panel building by providing a clearly identified mechanical accessory for compatible NH00 distribution equipment. Its manufacturer-specific designation helps contractors and switchboard manufacturers select the appropriate component for their intended assembly.
Key Advantages
- Triple-shutter arrangement: Designed for applications requiring three NH00 shutter positions.
- Closed configuration: Provides the specified closed-type shutter design for compatible assemblies.
- NH00 equipment application: Intended for use with suitably configured NH00 distribution equipment.
- Dedicated ABB component: Identified by model ZH430 and manufacturer order code 2CPX062957R9999.
- Modular distribution integration: Supports mechanical equipment arrangements within compatible sub-distribution systems.
- Maintenance suitability: Can be selected for replacement projects requiring the corresponding ZH430 configuration.
- Professional assembly support: Helps panel builders maintain consistent equipment specifications.
- Application-specific design: Distinguishes the required triple-shutter accessory from single- and double-shutter alternatives.
Key Features
- ABB ZH430 NH00 triple shutter.
- ABB manufacturer order code: 2CPX062957R9999.
- Equipment size designation: NH00.
- Shutter arrangement: Triple.
- Shutter configuration: Closed.
- Three-position shutter arrangement for compatible equipment installations.
- Mechanical accessory for electrical sub-distribution assemblies.
- Suitable for appropriately specified NH00 equipment layouts.
- Designed for professional switchgear assembly and maintenance applications.
- Identifiable by its unique ABB product code.
- Does not independently perform electrical switching, isolation or fuse protection.
NH00 Triple-Shutter Integration and Equipment Compatibility
Shutter accessories are used as part of the mechanical arrangement within compatible electrical distribution assemblies. The ABB ZH430 is specified as an NH00 triple shutter in a closed configuration, providing a dedicated component for equipment layouts requiring this particular shutter arrangement. Correct selection is important because shutter accessories can differ according to the number of positions, equipment size and assembly design.
The ZH430 should be matched to the intended ABB distribution assembly and associated NH00 equipment before installation. The NH00 size designation does not establish universal compatibility with every NH00 device. Installers should verify mounting arrangements, shutter positioning and assembly documentation. The protection provided by a completed switchgear assembly depends on its overall design and correct installation, rather than the shutter accessory alone.
Typical Applications
- Compatible ABB electrical sub-distribution assemblies.
- Distribution board sections incorporating NH00-size equipment.
- Triple-shutter arrangements for compatible NH00 installations.
- Low-voltage electrical switchgear assemblies.
- Commercial and industrial electrical distribution panels.
- Electrical panel manufacturing and modular switchgear construction.
- Replacement of equivalent NH00 triple-shutter components.
- Distribution board refurbishment and maintenance projects.
- OEM electrical distribution equipment assembly.
