Why Choose the ABB ED260 XT1/3 Cross Bar 2PW?

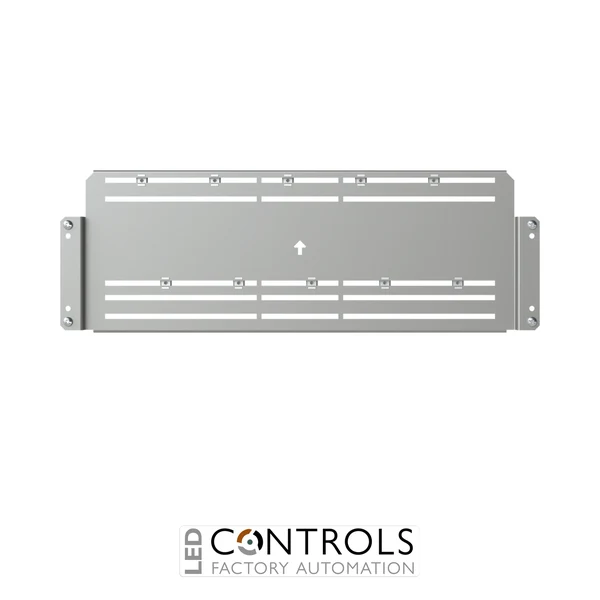

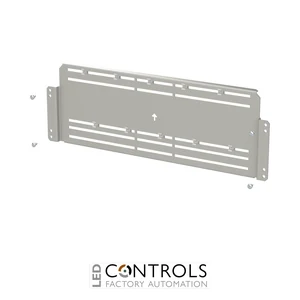

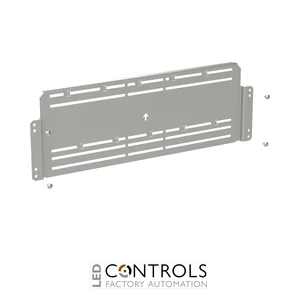

The ABB ED260 is a dedicated XT1/XT3 cross bar accessory for electrical distribution assemblies, designed for use within compatible ABB sub-distribution systems incorporating Tmax XT1 or XT3 moulded case circuit breaker equipment. As part of ABB's DESUJ Sub Distribution product group, this component supports the construction, arrangement and integration of circuit breaker equipment within low-voltage electrical distribution panels.
Featuring an XT1/3 equipment designation and a 2PW panel-width configuration, the ED260 provides a cross-bar component for the corresponding ABB distribution assembly arrangement. It is intended to support the specified mechanical installation layout, helping electrical panel builders select matching components when configuring distribution boards with compatible XT1 or XT3 equipment.
Identified by ABB manufacturer order code 2CPX062977R9999, the ABB ED260 XT1/3 Cross Bar 2PW is suitable for new panel construction, distribution board refurbishment and replacement applications where this particular cross-bar configuration is required. Its dedicated product identification simplifies component specification and helps maintain consistency across compatible ABB electrical distribution assemblies.
Key Advantages
- Dedicated XT1/3 cross-bar configuration for compatible ABB distribution assemblies.
- 2PW panel-width designation for the specified two-panel-width arrangement.
- Designed for integration with compatible ABB Tmax XT1 and XT3 equipment layouts.
- Supports the mechanical arrangement of associated circuit breaker installation components.
- Helps electrical panel builders maintain an organised distribution panel layout.
- Provides a purpose-designated component for matching ABB sub-distribution equipment.
- Supports consistent accessory selection during panel construction and maintenance.
- Suitable for new installations, equipment replacement and distribution board refurbishment.
- ABB-manufactured accessory for compatible low-voltage electrical distribution systems.
Key Features
- ABB ED260 cross bar for compatible electrical distribution assemblies.
- XT1/3 designation associated with ABB Tmax XT1 and XT3 equipment arrangements.
- 2PW configuration for compatible two-panel-width distribution layouts.
- Dedicated cross-bar component for the specified circuit breaker installation arrangement.
- Designed for integration with matching ABB distribution system components.
- Part of the ABB DESUJ Sub Distribution product group.
- Supports organised equipment positioning within compatible distribution panels.
- Suitable for electrical panel building, assembly servicing and replacement projects.
- Identified by manufacturer model reference ED260.
- ABB order code: 2CPX062977R9999.
Reliable Integration for ABB Tmax XT1 and XT3 Distribution Assemblies
ABB's Tmax XT moulded case circuit breaker family is used in low-voltage electrical distribution systems for circuit protection and switching applications. The XT1 and XT3 frame designations identify different circuit breaker sizes within the family. When these devices are incorporated into distribution assemblies, the associated mounting structures, installation accessories and panel components must be selected to suit the intended equipment configuration.
The ABB ED260 is specifically designated as an XT1/3 Cross Bar 2PW. This identifies its intended application within compatible ABB distribution panel arrangements associated with XT1 and XT3 equipment and a two-panel-width layout. Using the correct manufacturer-designated cross bar helps panel builders maintain the intended mechanical arrangement and avoid substituting components intended for different equipment or panel configurations.
The ED260 is a distribution assembly accessory rather than a moulded case circuit breaker, protective trip unit or standalone switching device. Its product designation does not establish an independent current rating or confirm that it functions as a current-carrying busbar. Electrical protection, short-circuit performance, mechanical integrity and the degree of protection of the finished installation depend on the complete assembly and its correctly selected and installed components.
Before installation, the ED260 should be checked against the relevant ABB assembly documentation to confirm compatibility with the particular XT1 or XT3 circuit breaker arrangement, associated mounting components and 2PW panel layout. Installation should be undertaken by suitably qualified personnel in accordance with applicable electrical safety requirements.
Typical Applications
- Low-voltage electrical distribution boards incorporating ABB Tmax XT1 equipment.
- Compatible electrical distribution assemblies incorporating ABB Tmax XT3 equipment.
- ABB DESUJ sub-distribution panel construction.
- Two-panel-width circuit breaker installation arrangements.
- Industrial electrical distribution panels.
- Commercial building power distribution installations.
- Moulded case circuit breaker assembly integration.
- Electrical switchgear and distribution equipment manufacturing.
- Modular electrical panel building and system configuration.
- Replacement of compatible XT1/XT3 cross-bar components.
- Electrical distribution board refurbishment and maintenance.
- OEM electrical power distribution equipment construction.
