Why Choose the ABB ED166 T4/5 3P Mounting Plate 1PW?

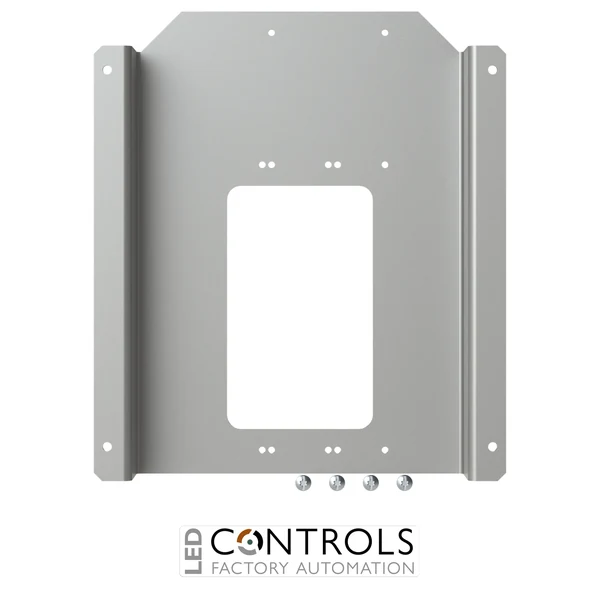

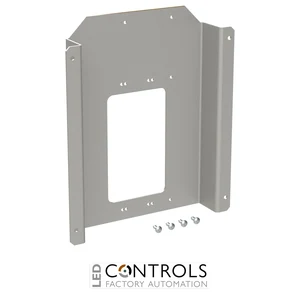

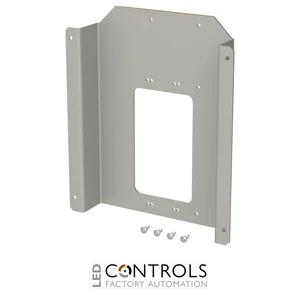

The ABB ED166 (2CPX064155R9999) is a dedicated T4/T5 three-pole mounting plate designed for compatible low-voltage electrical sub-distribution assemblies. Part of the ABB DESUJ Sub Distribution product group, this mounting accessory provides a designated installation arrangement for compatible T4 and T5 three-pole equipment within modular electrical distribution systems.
Featuring a one-panel-width (1PW) configuration, the ED166 supports the integration of suitable three-pole T4/T5 equipment into compatible distribution board sections. Its application-specific design helps electrical panel builders identify the correct mounting component when constructing or modifying switchgear assemblies.
The ABB ED166 mounting plate is suitable for professional electrical panel construction, equipment installation and maintenance projects where this particular mounting arrangement is specified. Its manufacturer part number provides a clear reference for component selection and replacement.
Key Advantages
- Dedicated T4/T5 application: Designed for compatible T4 and T5 equipment arrangements.
- Three-pole configuration: Intended for designated 3P equipment installations.
- One-panel-width format: Supports compatible 1PW distribution board sections.
- Application-specific mounting: Provides a defined mounting plate for the intended switchgear arrangement.
- Modular integration: Supports organised electrical sub-distribution board construction.
- ABB manufacturer identification: Model ED166 and order code 2CPX064155R9999 simplify accurate specification.
- Professional installation: Suitable for electrical panel building and equipment integration.
- Maintenance and replacement: Useful where an existing assembly requires the same mounting plate.
Key Features
- ABB ED166 T4/5 mounting plate.
- Manufacturer order code: 2CPX064155R9999.
- Equipment designation: T4/T5.
- Pole configuration: 3P (three-pole).
- Panel width: 1PW.
- Dedicated mechanical mounting component for compatible electrical equipment.
- Designed for electrical sub-distribution assembly applications.
- Supports installation of appropriately matched T4/T5 three-pole devices.
- Suitable for compatible new-build and refurbishment projects.
- Requires verification of equipment and mounting compatibility before installation.
Functional Overview – T4/T5 Three-Pole Equipment Mounting
The ABB ED166 provides a designated mounting plate for compatible T4/T5 three-pole equipment within a 1PW electrical distribution board arrangement. Mounting plates form part of the mechanical infrastructure of switchgear assemblies, supporting the positioning and installation of electrical devices in their intended panel locations.
The T4/T5 and 3P designations identify the intended equipment application. They do not establish universal compatibility with every T4 or T5 device configuration. Before installation, electrical panel builders should verify the selected device, fixing positions, required operating clearances and compatibility with the complete ABB distribution board system.
The ED166 is a mechanical mounting component. It does not independently provide electrical switching, overcurrent protection or isolation functions.
Typical Applications
- Compatible ABB T4/T5 three-pole equipment installations.
- Low-voltage electrical sub-distribution boards.
- Modular switchgear and distribution panel construction.
- Commercial and industrial electrical distribution assemblies.
- Single-panel-width equipment mounting sections.
- OEM electrical panel manufacturing.
- Distribution board upgrades and modifications.
- Replacement of equivalent ED166 mounting plates.
