Why Choose the ABB ED167 T4 3P / T5 4P Mounting Plate 2PW?

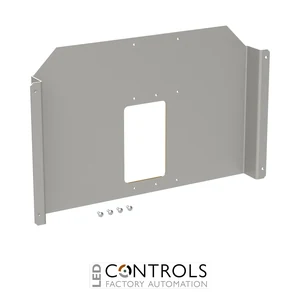

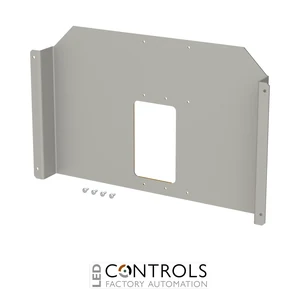

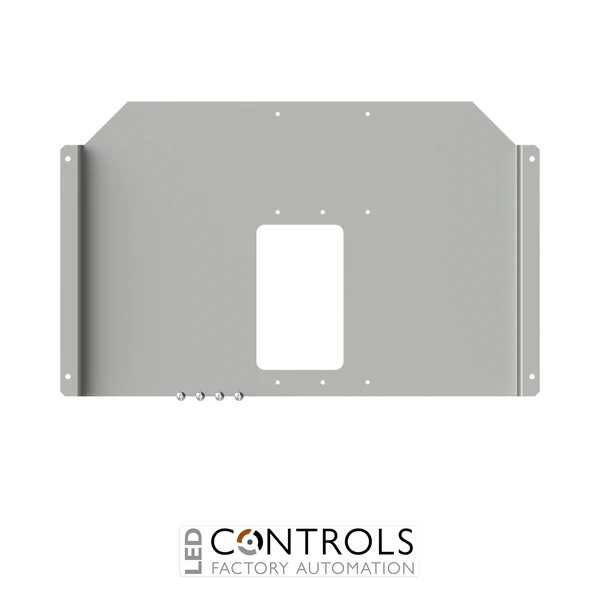

The ABB ED167 is a dedicated circuit breaker mounting plate for compatible ABB Tmax T4 and T5 equipment, designed for integration into low-voltage electrical distribution assemblies. Part of ABB's DESUJ Sub Distribution product group, this mounting plate supports the installation and mechanical arrangement of moulded case circuit breakers within compatible electrical distribution panels.
The ED167 is specifically designated for Tmax T4 3-pole (3P) and Tmax T5 4-pole (4P) circuit breaker arrangements. Its 2PW panel-width configuration identifies the corresponding distribution assembly format, helping electrical panel builders select the appropriate mounting component for the intended breaker installation. The plate forms part of the mechanical installation arrangement rather than the circuit breaker's electrical protection system.
Identified by ABB manufacturer order code 2CPX064156R9999, the ABB ED167 T4 3P / T5 4P Mounting Plate 2PW is suitable for compatible distribution board construction, switchgear assembly, maintenance and refurbishment applications. Its clearly defined equipment and panel-width designations make it a practical component for specifying and replacing mounting hardware in ABB sub-distribution systems.
Key Advantages
- Dedicated mounting plate for compatible ABB Tmax T4 and T5 circuit breaker arrangements.
- T4 3P compatibility designation for three-pole Tmax T4 equipment configurations.
- T5 4P compatibility designation for four-pole Tmax T5 equipment configurations.
- 2PW panel-width configuration for matching ABB distribution assembly layouts.
- Supports the mechanical installation of compatible moulded case circuit breakers.
- Helps maintain an organised and consistent circuit breaker mounting arrangement.
- Provides a manufacturer-designated component for the specified distribution panel configuration.
- Suitable for electrical panel construction, equipment replacement and refurbishment.
- Supports integration with compatible ABB DESUJ sub-distribution components.
- ABB-manufactured mounting accessory for professional electrical distribution assemblies.
Key Features
- ABB ED167 circuit breaker mounting plate.
- Designed for compatible ABB Tmax T4 3-pole circuit breaker arrangements.
- Also designated for compatible ABB Tmax T5 4-pole circuit breaker arrangements.
- 2PW panel-width designation.
- Dedicated mechanical mounting component for electrical distribution equipment.
- Intended for use within compatible low-voltage sub-distribution assemblies.
- Part of the ABB DESUJ Sub Distribution product group.
- Supports the positioning and integration of the specified circuit breaker equipment.
- Suitable for electrical panel building and distribution board maintenance.
- ABB order code: 2CPX064156R9999.
Reliable Mounting Integration for ABB Tmax T4 and T5 Circuit Breakers
ABB's Tmax moulded case circuit breaker range is used in low-voltage electrical distribution systems for circuit protection and switching applications. The T4 and T5 frame designations identify different breaker sizes within the Tmax family, while the 3P and 4P designations distinguish three-pole and four-pole equipment configurations. Correct mounting arrangements are important when integrating these devices into electrical distribution panels.
The ABB ED167 is specifically identified as a T4 3P / T5 4P mounting plate with a 2PW configuration. This combination distinguishes the product from mounting plates intended for other breaker frames, pole arrangements or panel widths. Selecting the correct manufacturer-designated mounting plate helps electrical panel builders establish the intended mechanical installation layout and maintain consistency with the associated ABB distribution assembly system.
A properly selected mounting plate forms part of the physical support arrangement for the installed circuit breaker. However, the mechanical suitability of the completed installation also depends on the breaker version, associated mounting hardware, panel structure and manufacturer's assembly instructions. The ED167 should therefore be matched to the complete distribution system configuration before installation.
The mounting plate itself does not provide overcurrent protection, short-circuit interruption or electrical isolation. These functions are performed by the correctly selected circuit breaker and associated equipment. The completed assembly's electrical clearances, accessibility, mechanical integrity and degree of protection depend on the overall design and installation.
Typical Applications
- Low-voltage distribution boards incorporating compatible ABB Tmax T4 3-pole circuit breakers.
- Electrical distribution assemblies incorporating compatible ABB Tmax T5 4-pole circuit breakers.
- ABB DESUJ sub-distribution panel construction.
- Two-panel-width circuit breaker mounting arrangements.
- Industrial electrical distribution panels.
- Commercial building electrical power distribution systems.
- Moulded case circuit breaker installation and integration projects.
- Electrical switchgear and distribution equipment assembly.
- OEM electrical panel and distribution board manufacturing.
- Replacement of compatible T4 3P / T5 4P mounting plates.
- Electrical distribution board refurbishment and maintenance.
- Modular electrical distribution equipment construction.
