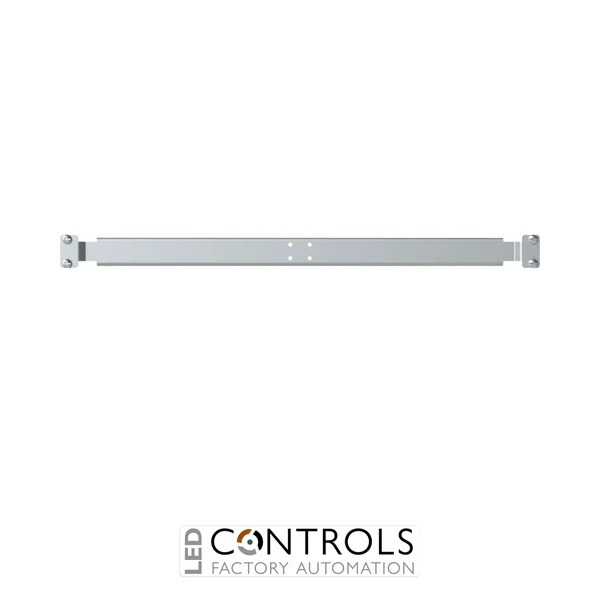

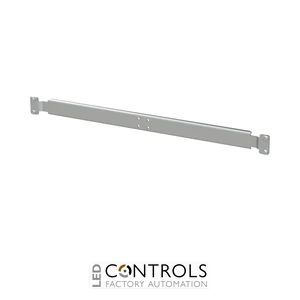

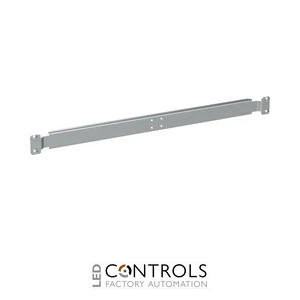

Why Choose the ABB ED112 EDF Profile Rail 2PW?
The ABB ED112 is a robust horizontal EDF profile rail designed for the mechanical assembly and subdivision of electrical distribution panels. As part of the ABB STRIEBEL & JOHN CombiLine distribution system, this transverse mounting rail provides a reliable solution for connecting EDF mounting frame sections and organising modular equipment within low-voltage distribution boards.
Designed for 2-panel-width (2PW) installations, the ED112 supports horizontal connections between compatible EDF mounting profiles, allowing distribution fields to be arranged above and below the transverse rail. Its galvanised steel construction provides mechanical strength and corrosion resistance, while the supplied fastening screws help simplify installation during switchgear assembly.
With a nominal field width of 500 mm and physical dimensions of approximately 494 × 34 × 15.5 mm, the ABB ED112 is suitable for compatible CombiLine EDF mounting frames. Supplied as an unassembled mounting kit under ABB order code 2CPX068572R9999, it is designed for electrical panel builders, switchgear manufacturers and installers requiring dependable distribution board mounting accessories.
Key Advantages
- Purpose-designed horizontal EDF profile rail for electrical distribution boards.
- 2PW field width for compatible modular distribution assemblies.
- 500 mm nominal field width for CombiLine mounting frame configurations.
- Durable galvanised steel construction provides mechanical strength and corrosion resistance.
- Supports horizontal field subdivision and connection of compatible EDF mounting profiles.
- Fastening screws included for convenient mechanical installation.
- Compatible with the ABB STRIEBEL & JOHN CombiLine EDF mounting system.
- Suitable for new distribution board assemblies, modifications and replacement installations.
Key Features
- ABB ED112 EDF transverse profile rail.
- Part of the ABB CombiLine distribution system.
- 2PW mounting field width.
- 500 mm nominal field width.
- 494 mm physical rail length.
- 34 mm profile width.
- 15.5 mm profile depth.
- Horizontal mounting arrangement for EDF frame assemblies.
- Galvanised steel material with protective zinc surface finish.
- Screw-fixed mechanical installation with fastening screws included.
- Supplied as an unassembled installation kit.
- ABB order code: 2CPX068572R9999.
Reliable EDF Mounting Frame Support for Electrical Distribution Boards
The ABB ED112 provides a horizontal transverse connection within compatible EDF mounting frame assemblies. Its primary function is to support the subdivision of electrical distribution fields and the connection of mounting frame sections, helping panel builders establish structured equipment layouts. The rail is particularly useful when arranging modular distribution fields above and below a horizontal mounting connection.
The ABB CombiLine system uses modular mounting components to accommodate different distribution board configurations. The ED112 forms part of this installation system, providing a galvanised steel transverse rail for 2PW assemblies. Its screw-fixed design and included fastening hardware support straightforward integration into compatible switchgear cabinets and low-voltage sub-distribution equipment.
Typical Applications
- ABB CombiLine electrical distribution board assemblies.
- Horizontal connections within compatible EDF mounting frames.
- Subdivision of modular electrical distribution fields.
- Low-voltage switchgear cabinet construction.
- Commercial and industrial sub-distribution boards.
- Electrical panel building and modular mounting frame installations.
- Replacement and refurbishment of compatible EDF mounting components.
- Custom electrical distribution panel layouts requiring 2PW transverse rails.
