2CPX077802R9999 ABB 1V0-150 Distribution Panel 1PW 48 Modules 600 × 250 × 120 mm

2CPX077802R9999 ABB 1V0-150 Distribution Panel 1PW 48 Modules 600 × 250 × 120 mm

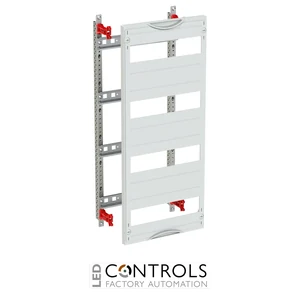

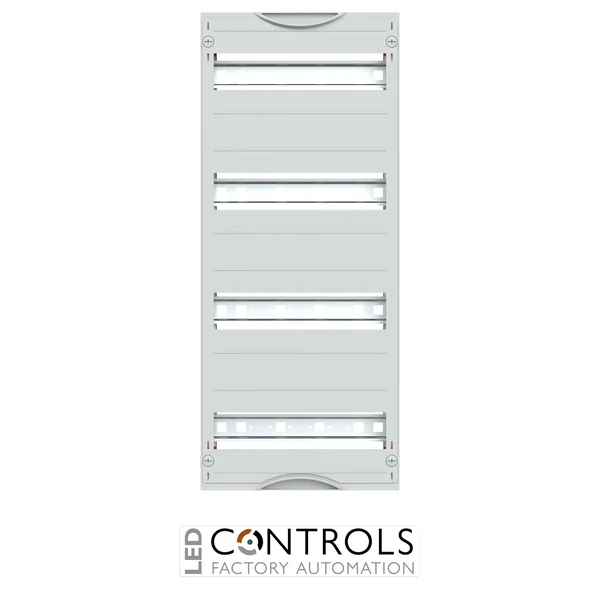

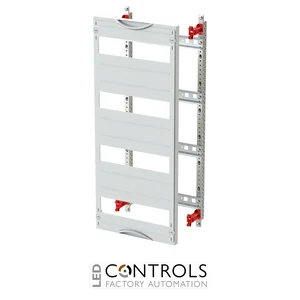

ABB 1V0-150 distribution panel, order code 2CPX077802R9999, a 1PW CombiLine modular distribution assembly with four DIN rail rows, 48 modular spaces, 150 mm row spacing and nominal dimensions of 600 × 250 × 120 mm.

SKU: 2CPX077802R9999Alt SKU: 1V0-150MPN: 2CPX077802R9999
Price
List Price £221.73 ex VAT
Your Price (ex VAT)
£221.73
Manufacturer Lead Time Estimated Delivery 6 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £221.73
Trade pricing is personalised to your account

Manufacturer Lead Time

£221.73

Why Choose the ABB 1V0-150 Distribution Panel 1PW?

The ABB 1V0-150 is a modular electrical distribution panel designed for the organised installation of DIN rail-mounted electrical devices within low-voltage distribution assemblies. As part of the ABB STRIEBEL & JOHN CombiLine distribution system, this panel provides a practical mounting solution for miniature circuit breakers, residual current devices and other compatible modular installation equipment.

Designed for 1-panel-width (1PW) installations, the 1V0-150 features four horizontal DIN rail rows with 150 mm row spacing, providing a total capacity of 48 modular units. The panel is mounted on EDF profiles and incorporates protective plastic covers with device cut-outs, helping electrical panel builders create organised and accessible distribution board assemblies.

With nominal dimensions of 600 × 250 × 120 mm (H × W × D), the ABB 1V0-150 is suitable for compatible distribution cabinets with an installation depth of at least 120 mm. Its four DIN rails accommodate 12 modular units per row, while the included EDF mounting profiles simplify integration into suitable electrical distribution systems. Identified by ABB order code 2CPX077802R9999, it is designed for professional electrical panel building, switchgear assembly and sub-distribution installations.

Key Advantages

  • Modular electrical distribution panel for DIN rail-mounted installation devices.
  • 1PW panel width with a nominal field width of 250 mm.
  • 48 modular-unit capacity across four horizontal DIN rail rows.
  • 150 mm row spacing supports organised electrical equipment installation.
  • Compatible with the ABB STRIEBEL & JOHN CombiLine distribution system.
  • 35 × 15 mm DIN rail profiles accommodate standard modular electrical devices.
  • Protective plastic covers with modular device cut-outs provide a tidy panel arrangement.
  • 90° push-turn cover fasteners allow convenient access during installation and maintenance.
  • RAL 7035 light grey covers provide a consistent professional finish.
  • EDF mounting profiles are included for integration into compatible distribution cabinets.
  • Suitable for new electrical distribution assemblies, extensions and refurbishment projects.

Key Features

  • ABB 1V0-150 modular distribution panel.
  • Part of the ABB STRIEBEL & JOHN CombiLine internal expansion system.
  • 1PW / 250 mm nominal field width.
  • 600 mm panel height with four modular installation rows.
  • 48 modular spaces arranged as 4 rows of 12 modules.
  • 150 mm vertical DIN rail row spacing.
  • Four 35 × 15 mm top-hat DIN rails.
  • DIN rails feature perforations for wire-holder installation.
  • Suitable for modular installation devices complying with DIN 43880.
  • Plastic protective covers with modular device cut-outs.
  • 90° push-turn cover fastening system.
  • RAL 7035 light grey cover colour.
  • Designed for compatible distribution cabinets with a minimum installation depth of 120 mm.
  • EDF mounting profiles included in the supply.
  • ABB manufacturer order code: 2CPX077802R9999.

Reliable Modular Distribution for Electrical Installations

The ABB 1V0-150 distribution panel provides a structured mounting platform for modular electrical devices within compatible low-voltage distribution cabinets. Its four-row configuration offers 48 modular spaces, allowing electrical installers to arrange circuit protection, switching and control devices in an organised layout. The 150 mm row spacing provides a consistent mounting arrangement, while the protective covers help create a professional distribution board installation.

The ABB CombiLine internal expansion system uses modular distribution fields and EDF mounting profiles to support flexible switchgear configurations. The 1V0-150 incorporates four horizontal DIN rails, protective covers and dedicated mounting components for integration into compatible distribution assemblies. Distribution fields must match the modular grid dimensions of their intended cabinets, and standing or bayed cabinet installations may require two vertically arranged fields or field combinations.

Typical Applications

  • Low-voltage electrical distribution boards.
  • Commercial building electrical distribution systems.
  • Industrial electrical distribution cabinets and switchgear assemblies.
  • DIN rail mounting of miniature circuit breakers and residual current devices.
  • ABB STRIEBEL & JOHN CombiLine distribution installations.
  • Building services electrical infrastructure.
  • Modular electrical panel building and switchgear construction.
  • Electrical distribution board extensions and refurbishment projects.
  • Organised installation of compatible modular switching and control equipment.

Technical Specifications

Tick the specs you need, then view products that match.

Device Type Mounting / Expansion Module
Product Series S&J CombiLine N
Product range ABB STRIEBEL & JOHN CombiLine
ABB order code 2CPX077802R9999
Product type Modular electrical distribution panel
Product group DESUJ Sub Distribution
Panel configuration 1PW
Nominal field width 250 mm
Number of installation rows 4
Number of DIN rails 4
Modular units per row 12
Total modular capacity 48 modules
DIN rail row spacing 150 mm
DIN rail profile 35 × 15 mm
Height 600 mm
Width 250 mm
Minimum cabinet installation depth 120 mm
Nominal dimensions (H × W × D) 600 × 250 × 120 mm
Mounting system EDF profile mounting
DIN rail orientation Horizontal
Cover material Plastic
Cover configuration With modular device cut-outs
Cover fastening 90° push-turn fasteners
Cover colour RAL 7035 light grey
Rated operating voltage 400 V AC
Rated frequency 50 Hz
Rated insulation voltage 690 V
Rated impulse withstand voltage 6 kV
Rated peak withstand current 25 kA
Overvoltage category III
Pollution degree 3
Device installation standard DIN 43880
N/PE terminals Not included
Mounting plate Not included
EDF mounting profiles Included
Packaging quantity 1 piece
EAN 4011617778028
Country of origin Germany

Frequently Asked Questions

What is the ABB 1V0-150 used for?

The ABB 1V0-150 is a modular electrical distribution panel designed to accommodate DIN rail-mounted electrical devices within compatible low-voltage distribution cabinets and switchgear assemblies.

How many modular devices can the ABB 1V0-150 accommodate?

The panel provides 48 modular spaces arranged across four horizontal DIN rail rows, with 12 standard modular units available per row. The actual number of devices depends on their individual module widths.

What are the dimensions of the ABB 1V0-150 distribution panel?

The panel has nominal dimensions of 600 mm high, 250 mm wide and 120 mm deep. It is designed for compatible distribution cabinets with a minimum installation depth of 120 mm.

What is the DIN rail spacing on the ABB 1V0-150?

The ABB 1V0-150 features 150 mm spacing between its four horizontal DIN rail rows, providing a consistent mounting arrangement for modular electrical equipment.

Are DIN rails included with the ABB 1V0-150?

Yes. The panel includes four 35 × 15 mm DIN rails together with EDF mounting profiles for installation within compatible ABB distribution assemblies.

Does the ABB 1V0-150 include protective covers?

Yes. The distribution panel includes RAL 7035 light grey plastic covers with modular device cut-outs and 90° push-turn fasteners.

Are neutral and protective earth terminals included?

No. The ABB 1V0-150 is supplied without N/PE terminals. Suitable terminal arrangements must be selected separately according to the electrical installation requirements.

Which electrical distribution system is compatible with the ABB 1V0-150?

The 1V0-150 belongs to the ABB STRIEBEL & JOHN CombiLine internal expansion system. The distribution field must match the mounting grid and dimensions of the intended compatible cabinet.

What is the difference between the ABB 1V0-150 and 1V00-150?

The ABB 1V0-150 provides four DIN rail rows and 48 modular spaces within a 600 mm high panel, whereas the ABB 1V00-150 provides three DIN rail rows and 36 modular spaces within a 450 mm high panel. Both have a nominal width of 250 mm and 150 mm DIN rail row spacing.

What is the ABB order code for the 1V0-150?

The ABB manufacturer order code is 2CPX077802R9999, and the product EAN is 4011617778028.
