Why Choose the ABB 1V1-150 Distribution Panel 1PW?

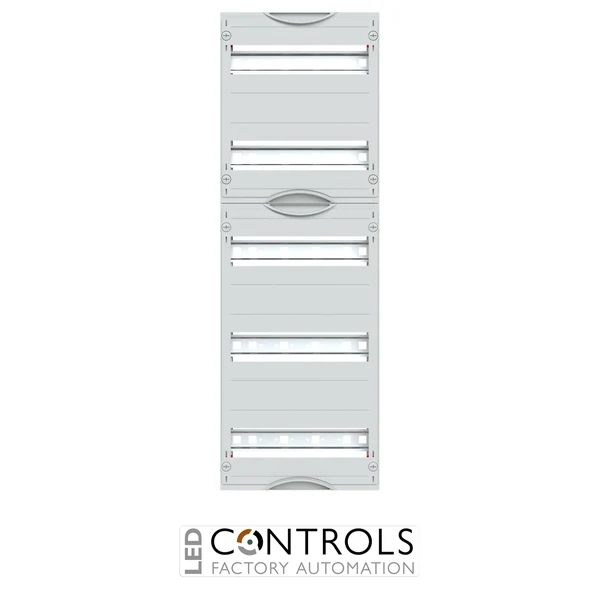

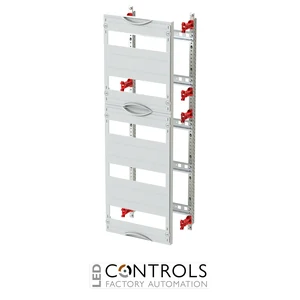

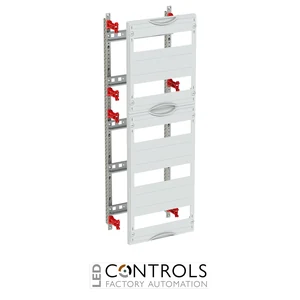

The ABB 1V1-150, manufacturer order code 2CPX077804R9999, is a high-quality single-panel-width electrical distribution panel designed for the organised installation of DIN rail-mounted electrical devices in low-voltage distribution systems. Part of the ABB Striebel & John CombiLine internal expansion system, this distribution panel provides a practical, modular solution for electrical installers, panel builders and industrial electrical infrastructure projects.
Designed for use in compatible electrical distribution cabinets, the ABB 1V1-150 features five DIN rail rows with 150 mm row spacing, providing installation capacity for up to 60 modular units. Its preassembled construction on EDF profiles helps simplify panel assembly, supports orderly component positioning and provides a consistent mounting arrangement for modular electrical equipment.
With a nominal field width of 250 mm, an overall height of 750 mm and an installation depth of 120 mm, the ABB 1V1-150 is suitable for electrical distribution cabinets requiring a structured, space-efficient internal mounting system. The panel includes DIN mounting rails and protective plastic covers, making it a dependable choice for professional low-voltage electrical distribution installations.
Key Advantages
- High-quality ABB distribution panel designed for modular electrical distribution systems.
- Single-panel-width (1PW) construction with a nominal field width of 250 mm.
- Five DIN rail rows providing capacity for up to 60 modular installation units.
- 150 mm row spacing supports organised installation and wiring of modular electrical devices.
- Preassembled EDF profile mounting system simplifies installation within compatible distribution cabinets.
- Includes protective plastic covers with cut-outs for access to installed modular equipment.
- Modular design supports consistent panel layouts and future electrical system modifications.
- Suitable for professional electrical contractors, switchboard manufacturers and industrial panel builders.
Key Features
- ABB Striebel & John CombiLine distribution panel system.
- Manufacturer part number: 2CPX077804R9999.
- Model designation: 1V1-150.
- Single-panel-width (1PW) configuration.
- Five horizontal DIN mounting rails for modular electrical equipment.
- 12 modular units per row, providing 60 modular units in total.
- 150 mm vertical row spacing for structured equipment installation.
- 35 × 15 mm DIN mounting rails with provision for wire holders.
- Preassembled construction mounted on EDF profiles.
- Plastic covers with cut-outs and 90-degree push-turn fasteners.
- RAL 7035 light grey cover finish.
- Designed for modular installation devices conforming to DIN 43880.
- Compatible with suitable distribution cabinets having a minimum installation depth of 120 mm.
- EDF profile rails included as part of the panel assembly.
Reliable Modular Electrical Distribution and Panel Installation
The ABB 1V1-150 distribution panel provides a structured internal mounting arrangement for electrical distribution cabinets. Its five DIN rail rows allow modular devices, such as miniature circuit breakers, residual current devices, control components and other compatible DIN rail-mounted equipment, to be positioned in a clear and accessible layout. The 150 mm row spacing helps provide installation space for equipment connections and wiring within the cabinet.
As part of the ABB Striebel & John CombiLine internal expansion system, the 1V1-150 uses a modular EDF profile arrangement that supports consistent assembly across compatible distribution cabinet configurations. Its preassembled mounting structure and protective covers help reduce panel-building complexity while maintaining a professional installation layout. The panel must be matched to a suitable cabinet with compatible grid dimensions and installed by a qualified electrical professional.
Typical Applications
- Low-voltage electrical distribution cabinets and sub-distribution assemblies.
- Commercial building electrical distribution systems.
- Industrial electrical control and distribution panels.
- DIN rail-mounted circuit protection equipment installations.
- Electrical switchboard construction and panel assembly.
- Building services and infrastructure electrical installations.
- Distribution cabinet upgrades and modular internal expansion projects.
- OEM electrical enclosure and switchboard manufacturing.
