Why Choose the ABB 2V1-150 Distribution Panel 2PW?

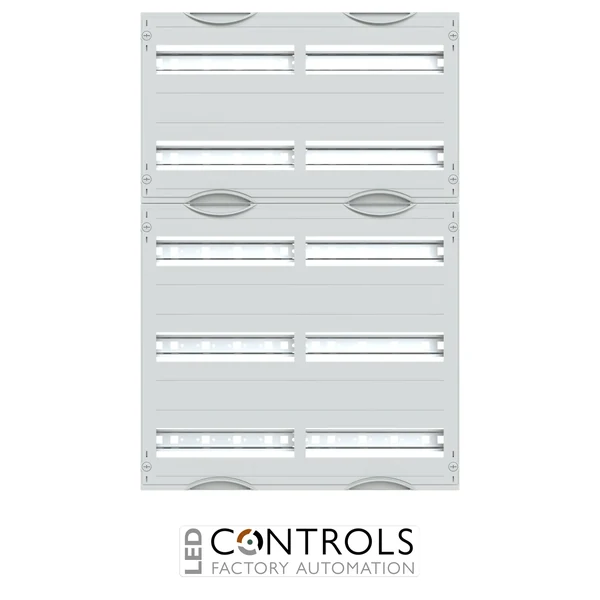

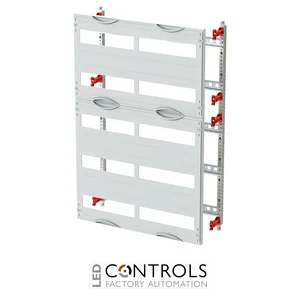

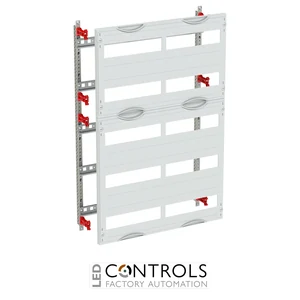

The ABB 2V1-150, manufacturer order code 2CPX077805R9999, is a high-quality two-panel-width electrical distribution panel designed for the organised installation of modular electrical devices in low-voltage distribution systems. As part of the ABB Striebel & John CombiLine internal expansion system, this distribution panel provides a reliable and space-efficient mounting solution for electrical contractors, panel builders and industrial electrical installations.
Designed for installation within compatible electrical distribution cabinets, the ABB 2V1-150 features five horizontal DIN rail rows with a spacing of 150 mm. Each row accommodates up to 24 modular units, providing a total capacity of 120 modular units. Its preassembled construction on EDF profiles helps simplify installation, supports consistent equipment positioning and provides an organised arrangement for circuit protection and electrical distribution components.
With a two-panel-width (2PW) configuration, an overall width of 500 mm, a height of 750 mm and an installation depth of 120 mm, the ABB 2V1-150 is ideal for larger electrical distribution assemblies requiring substantial modular installation capacity. The panel incorporates DIN mounting rails and protective plastic covers, making it suitable for professional commercial, industrial and building infrastructure applications.
Key Advantages
- High-quality ABB electrical distribution panel designed for professional low-voltage installations.
- Two-panel-width (2PW) configuration provides a 500 mm-wide installation field.
- 120 modular unit capacity supports extensive electrical distribution arrangements.
- Five horizontal DIN rail rows with 24 modular units per row.
- 150 mm row spacing supports organised installation and wiring of modular electrical equipment.
- Preassembled EDF profile mounting system helps simplify panel assembly.
- Protective plastic covers with cut-outs provide a professional equipment installation finish.
- Modular construction supports consistent layouts and future distribution system modifications.
- Suitable for commercial, industrial and building services electrical distribution systems.
Key Features
- ABB Striebel & John CombiLine distribution panel system.
- Manufacturer part number: 2CPX077805R9999.
- Model designation: 2V1-150.
- Two-panel-width (2PW) installation configuration.
- Five DIN mounting rails for modular electrical equipment.
- 24 modular units per row, providing 120 modular units in total.
- 150 mm vertical row spacing for structured equipment installation.
- 35 × 15 mm DIN mounting rail profile with perforations for wire holders.
- Preassembled distribution panel mounted on EDF profiles.
- Plastic protective covers with cut-outs and 90-degree push-turn fasteners.
- RAL 7035 light grey cover finish.
- Designed for modular electrical installation devices conforming to DIN 43880.
- 400 V AC rated operational voltage for the distribution panel system.
- 690 V rated insulation voltage and 6 kV rated impulse withstand voltage.
- Suitable for compatible distribution cabinets with a minimum installation depth of 120 mm.
- EDF profile rails included for integration into suitable electrical distribution enclosures.
Reliable Modular Electrical Distribution for Commercial and Industrial Installations
The ABB 2V1-150 distribution panel provides a structured internal mounting arrangement for modular electrical equipment inside compatible low-voltage distribution cabinets. Its five horizontal DIN rail rows allow electrical devices such as miniature circuit breakers, residual current devices, switching equipment and compatible control components to be installed in a clear and accessible layout. The 150 mm row spacing helps provide room for equipment connections and organised internal wiring.
The ABB Striebel & John CombiLine system is designed around modular internal expansion components that support consistent distribution cabinet construction. The 2V1-150 uses EDF profile mounting rails and protective covers to simplify panel building while maintaining a professional installation arrangement. With capacity for 120 modular units, the panel is particularly suitable for distribution assemblies requiring multiple outgoing circuits and extensive modular equipment installations. Cabinet compatibility, electrical ratings and installation requirements must be assessed as part of the completed distribution assembly.
Typical Applications
- Commercial building low-voltage electrical distribution systems.
- Industrial electrical distribution cabinets and sub-distribution assemblies.
- Large modular circuit protection and switching equipment installations.
- Electrical switchboard construction and panel assembly.
- Building services electrical infrastructure.
- Manufacturing facilities and industrial plant distribution systems.
- Distribution cabinet upgrades and modular internal expansion projects.
- OEM electrical enclosure and switchboard manufacturing.
