Why Choose the ABB 2V2K-150 Distribution Panel?

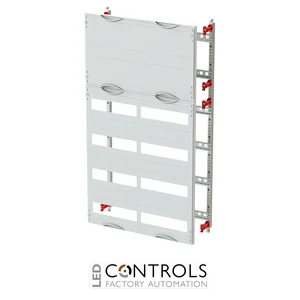

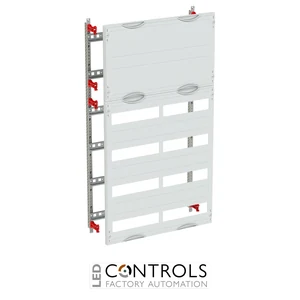

The ABB 2V2K-150 is a versatile and reliable 2PW electrical distribution panel designed for mounting DIN rail devices and terminal blocks within compatible electrical sub-distribution assemblies. As part of the ABB DESUJ Sub Distribution product group, this panel provides a structured installation solution for electrical switchboards, distribution cabinets and industrial electrical installations.

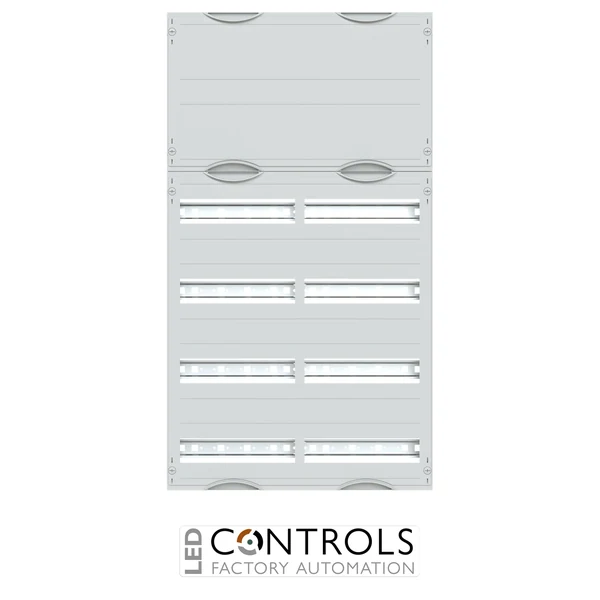

Designed for ABB modular distribution panel systems, the 2V2K-150 features a 900 mm height, 500 mm width and 120 mm installation depth. Its configuration provides 144 modular space units with a 150 mm DIN rail row spacing, supporting organised installation of compatible modular electrical equipment and terminal blocks.
The panel incorporates 35 × 15 mm DIN mounting rails, EDF profile rails and plastic covers with a 90-degree press-and-turn fastening mechanism. Finished in RAL 7035 light grey, the ABB 2V2K-150 is designed for integration into compatible distribution cabinets with a minimum installation depth of 120 mm. Identified by ABB order code 2CPX077811R9999, it provides a manufacturer-specified solution for professional electrical distribution assemblies.
Key Advantages
- Genuine ABB 2PW distribution panel for modular electrical distribution systems.
- 900 × 500 × 120 mm dimensions for compatible distribution cabinets.
- 144 modular space units for organising DIN rail-mounted electrical equipment.
- 150 mm DIN rail row spacing supports structured component installation.
- Integrated 35 × 15 mm DIN rails for compatible modular devices and terminal blocks.
- EDF profile rails included for integration into the distribution panel system.
- Plastic covers with 90-degree press-and-turn fasteners for convenient access.
- Part of the ABB DESUJ Sub Distribution product group.
Key Features
- ABB 2V2K-150 distribution panel.
- 2PW panel width configuration equivalent to 500 mm.
- 6 grid units (GU) corresponding to a nominal height of 900 mm.
- 144 modular space units within the distribution panel system.
- Four DIN mounting rails for modular installation devices.
- 35 × 15 mm DIN rail profile with perforations for wire holders.
- 150 mm spacing between DIN rail rows.
- Suitable for modular devices conforming to DIN 43880.
- Plastic covers with cut-outs for installed equipment.
- RAL 7035 light grey finish.
- EDF profile mounting rails included in the supplied assembly.
- Designed for compatible cabinets with a minimum depth of 120 mm.
Reliable Modular Distribution Panel Integration
Modular distribution panels provide the internal mounting structure required for organising protective devices, switching components and terminal blocks within electrical distribution cabinets. Correct selection of panel dimensions, mounting profiles and modular spacing helps achieve an orderly installation and supports future inspection and maintenance.
The ABB 2V2K-150 combines a 2PW width configuration with 150 mm DIN rail spacing, making it suitable for compatible ABB distribution systems requiring additional room between mounting rows. Its integrated EDF profile arrangement and DIN mounting rails simplify the mechanical installation of compatible equipment.
The distribution panel is intended for cabinets with matching grid-unit dimensions. For floor-standing and row-type switchgear cabinets, ABB specifies particular panel combination arrangements that must be followed during assembly. Electrical installers should verify the cabinet dimensions, mounting requirements and applicable electrical standards before installation.
Typical Applications
- Commercial electrical distribution boards and switchboards.
- Industrial electrical sub-distribution systems.
- DIN rail-mounted circuit protection equipment.
- Terminal block installation and wiring distribution.
- Electrical control and distribution cabinets.
- Modular electrical panel building and switchboard manufacturing.
- Building services and electrical infrastructure installations.
- Maintenance and replacement of compatible ABB distribution panel assemblies.
