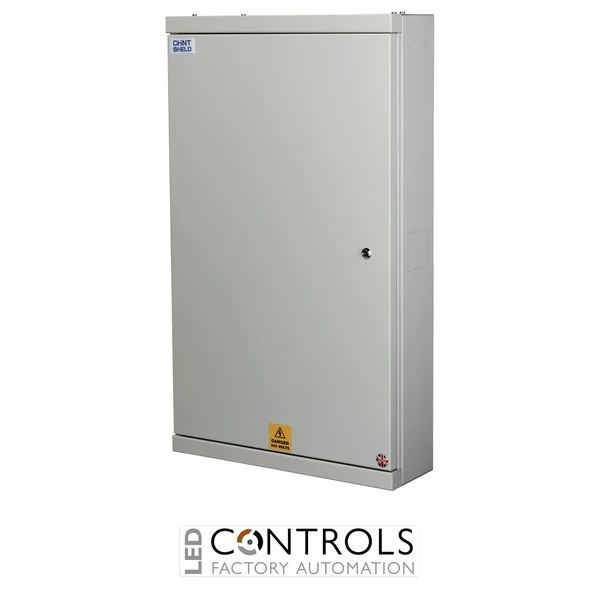

Why Choose the Chint NXDB-125-12MK Distribution Board with Meter Kit?
The Chint NXDB-125-12MK is a robust 125 A three-phase and neutral (TPN) distribution board with integrated meter kit capability, designed for reliable power distribution in commercial and industrial electrical installations. As part of the Chint Shield NXDB distribution board series, it provides a durable all-metal enclosure with flexible circuit protection options and metering functionality.
This 12-way Type B distribution board is designed for use with the NXDB-125-IK4P 125 A four-pole incomer kit, providing a complete solution for three-phase distribution systems requiring incoming isolation and energy monitoring capability. The board is compatible with Chint NB1 MCBs and NB3LEU RCBOs for circuit protection configuration.
Manufactured from heavy gauge steel with a powder-coated finish, the NXDB-125-12MK provides a secure and organised enclosure for commercial power distribution applications. Its metering provision makes it suitable for installations where monitoring individual supplies or outgoing circuits is required.
Key Advantages
- 125 A three-phase distribution solution for commercial and industrial installations.
- 12 outgoing ways for flexible circuit protection arrangements.
- Integrated meter kit capability for energy monitoring applications.
- Durable all-metal steel enclosure for reliable mechanical protection.
- Compatible with Chint NB1 MCBs and NB3LEU RCBOs.
- Supports professional power and lighting distribution systems.
Key Features
- Chint Shield NXDB-125 series distribution board.
- 12-way three-phase and neutral configuration.
- 125 A rated system.
- Meter kit version for energy monitoring applications.
- Designed for use with NXDB-125-IK4P 4-pole incomer kit.
- Heavy gauge steel construction with powder-coated finish.
- TPN (three-phase and neutral) distribution design.
- Removable top and bottom gland plates for easier cable installation.
- Suitable for mounting Chint modular protection devices.
Reliable Power Distribution and Metering Capability
The Chint NXDB-125-12MK provides a dependable platform for managing three-phase electrical distribution systems. The integrated meter kit arrangement allows installers to incorporate monitoring solutions while maintaining a neat and organised distribution layout.
Designed for professional electrical projects, the Shield NXDB range combines robust steel construction, flexible circuit protection compatibility and modular expansion options to meet the requirements of modern commercial and industrial installations.
Typical Applications
- Commercial electrical distribution systems.
- Industrial power distribution installations.
- Three-phase power and lighting boards.
- Energy monitoring and metering projects.
- Factories, workshops and production facilities.
- Building services distribution systems.
