Why Choose the Teknomega MRS5002 41-Way Earth Bar?

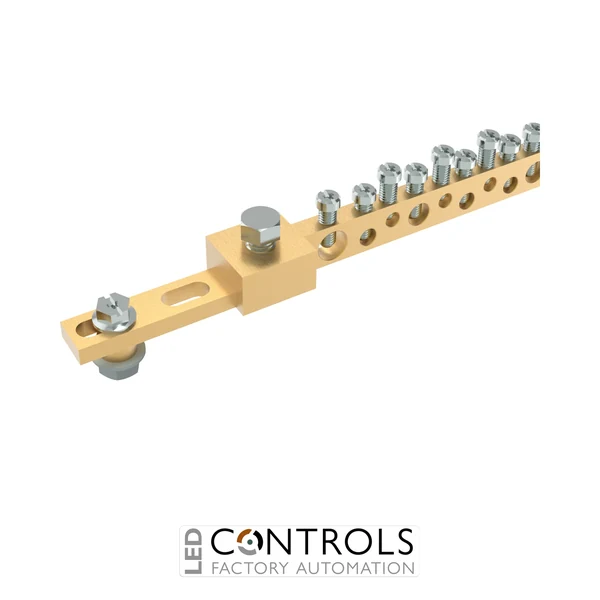

The Teknomega MRS5002 is a robust 41-way brass earthing terminal bar designed to provide an organised and dependable connection point for protective earth conductors in industrial switchboards, control panels and electrical distribution equipment. Part of Teknomega's earthing and neutral terminal range, it combines a substantial 462 mm length with multiple conductor capacities for flexible panel wiring.
Manufactured from brass, the MRS5002 features 41 conductor connection holes distributed across four different hole sizes. These accommodate a broad range of conductor cross-sections, while a separate cable-lug connection supports conductors up to 95 mm². The terminal bar is supplied with galvanised steel connection hardware for secure industrial installation.
The MRS5002 has a 13 × 6 mm bar profile, an 80 A rated current and a universal fixing arrangement with two eyelet holes. It is supplied with M6 fixing screws, M8 screws for eyelet terminals and M5 galvanised steel conductor connection screws, making it a comprehensive solution for larger electrical panels requiring numerous earth connections.
Key Advantages
- Provides 41 conductor connection holes for extensive earthing distribution.
- Durable brass terminal bar construction for dependable electrical connections.
- 462 mm overall length suitable for larger switchboards and control panels.
- Dedicated cable-lug connection accommodates conductors up to 95 mm².
- Universal fixing system supports direct, copper-bar and spacer mounting arrangements.
- Supplied with M6 fixing screws, M8 eyelet-terminal screws and M5 connection screws.
Key Features
- Teknomega MRS 13-6-41 earthing terminal.
- 41 connection holes across four conductor-size groups.
- 80 A rated current.
- 462 mm overall length.
- 13 × 6 mm brass bar profile.
- Cable-lug connection for conductors up to 95 mm².
- 14 × 4.5 mm holes for smaller conductor connections.
- 19 × 5.3 mm holes and 7 × 7 mm holes for intermediate conductor sizes.
- 1 × 9.1 mm hole for larger conductor connection.
- Universal mounting through two fixing eyelets.
Reliable Earthing Distribution for Electrical Panels
A properly arranged protective earthing system provides a common connection point for protective conductors and helps maintain an organised electrical installation. The Teknomega MRS5002 provides 41 connection positions in a single brass bar, making it particularly useful in larger switchboards and control cabinets containing numerous circuits and field connections.
The combination of several hole diameters allows conductors of different cross-sections to be terminated on the same bar. Its universal two-eyelet fixing arrangement supports direct mounting to a structure, installation on a copper bar, mounting on spacers or joining two collectors, providing panel builders with flexibility when designing earthing systems.
Typical Applications
- Industrial switchboards and distribution boards.
- Electrical control panels and automation cabinets.
- Protective earth conductor distribution.
- Machine control and industrial equipment panels.
- Power distribution and electrical infrastructure.
- OEM machinery and panel-building applications.
