Why Choose the Wöhner 01028 Flexible Copper Busbar?
The Wöhner 01028 is a high-performance flexible laminated copper busbar designed for efficient high-current electrical connections in industrial switchgear, control panels and power distribution systems. Part of the trusted Wöhner busbar accessories range, it provides a practical alternative to rigid copper busbars while simplifying installation and reducing assembly time.

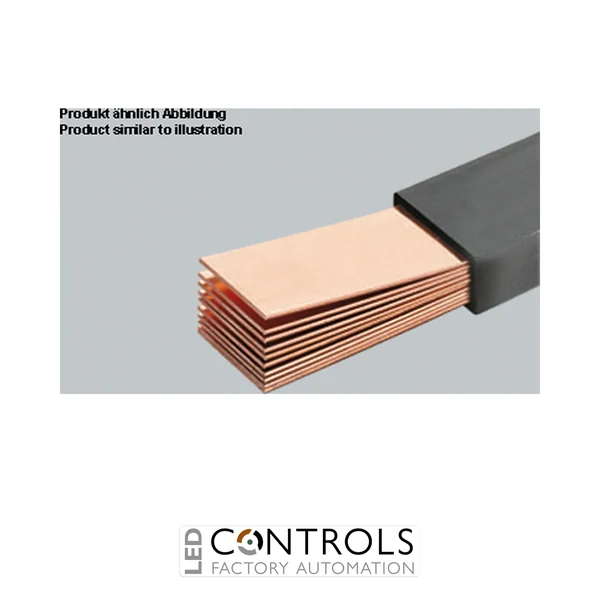

Constructed from multiple laminated copper strips with integrated insulation, the Wöhner 01028 eliminates the need for specialist busbar bending equipment. Its flexible design allows installers to route connections around confined spaces while maintaining excellent electrical conductivity and long-term reliability. The factory-fitted 2 mm insulation also removes the requirement for additional protective covers in many installations.
With a rated current of 477 A, a 6 × 20 × 1 mm laminated copper construction and a 2 metre length, the Wöhner 01028 is ideal for modern low-voltage power distribution systems, motor control centres and OEM electrical equipment.
Key Advantages
- Flexible laminated copper busbar for industrial power distribution.
- 477 A current rating for demanding electrical applications.
- Integrated insulation eliminates the need for additional protective covers.
- Reduces installation time compared with rigid copper busbars.
- No specialist busbar bending equipment required.
- Ideal for compact switchboards and control panels.
Key Features
- Wöhner flexible copper busbar.
- 477 A IEC rated current.
- 6 × 20 × 1 mm laminated copper construction.
- 2 metre length.
- Factory insulated with 2 mm insulation.
- Cross-sectional area of 120 mm².
- Halogen-free construction.
- Complies with IEC 61439-1, UL 758 and UL 67.
Flexible High Current Power Distribution
The Wöhner 01028 flexible copper busbar offers a practical solution for creating high-current electrical connections without the challenges associated with rigid copper bars. Its laminated construction enables tight bending radii while reducing mechanical stress on electrical connections and simplifying installation in confined panel layouts.
The integrated insulation improves installation safety while reducing component count, making the busbar well suited for industrial switchgear, distribution boards and modern electrical control systems requiring dependable high-current performance.
Typical Applications
- Industrial switchboards.
- Low-voltage power distribution systems.
- Motor control centres.
- OEM electrical equipment.
- Busbar interconnections.
- Industrial control panels.
