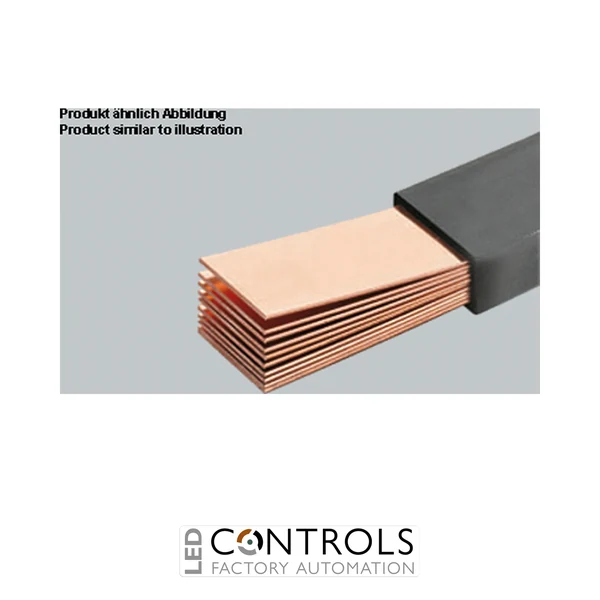

Why Choose the Wöhner 01035 Flexible Copper Busbar?
The Wöhner 01035 is a premium flexible laminated copper busbar engineered for high-current electrical connections in industrial switchgear, control panels and low-voltage power distribution systems. As part of the trusted Wöhner flexible busbar range, it offers a practical alternative to rigid copper busbars, reducing installation time while delivering reliable electrical performance.
Manufactured from multiple laminated copper strips with durable 2 mm insulation, the Wöhner 01035 removes the need for specialist busbar bending equipment. Its flexible design enables easy routing around equipment and confined spaces while maintaining excellent conductivity and long-term reliability. The integrated insulation also eliminates the need for additional protective covers in many installations.
With a rated current of 350 A, a 6 × 15.5 × 0.8 mm laminated copper construction and a 2 metre length, the Wöhner 01035 is ideal for industrial power distribution, motor control centres and OEM electrical equipment.
Key Advantages
- Flexible laminated copper busbar for industrial power distribution.
- 350 A IEC rated current for demanding applications.
- Integrated 2 mm insulation removes the need for additional protective covers.
- Reduces installation time compared with rigid copper busbars.
- No specialist busbar bending equipment required.
- Suitable for switchboards, control panels and OEM machinery.
Key Features
- Wöhner flexible copper busbar.
- 350 A rated current.
- 6 × 15.5 × 0.8 mm laminated copper construction.
- 74.4 mm² cross-sectional area.
- 2 metre length.
- Factory insulated with halogen-free 2 mm insulation.
- Suitable for industrial low-voltage power distribution.
- Complies with IEC 61439-1, UL 758 and UL 67.
Flexible High Current Power Distribution
The Wöhner 01035 flexible copper busbar provides an efficient solution for high-current electrical connections without the challenges associated with rigid copper bars. Its laminated construction enables tight bending radii, reduces mechanical stress and simplifies installation in compact electrical enclosures.
Designed for industrial switchboards and power distribution equipment, the integrated insulation improves safety while reducing the number of installation components required, helping create clean, efficient and reliable electrical assemblies.
Typical Applications
- Industrial switchboards.
- Low-voltage power distribution systems.
- Motor control centres.
- OEM electrical equipment.
- Busbar interconnections.
- Industrial control panels.
