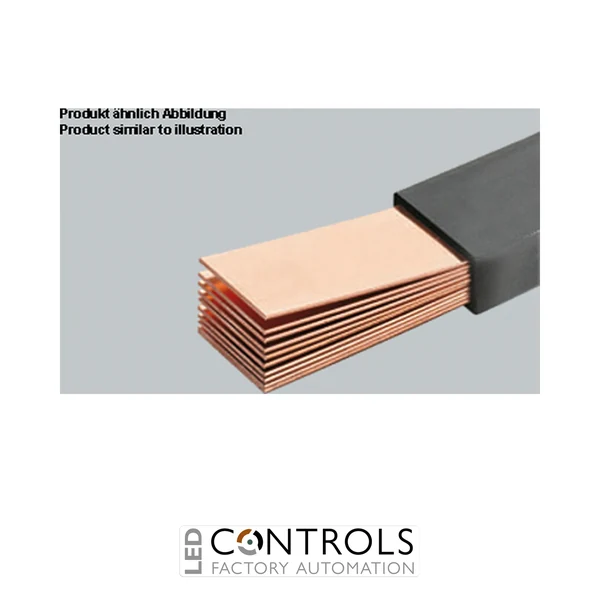

Why Choose the Wöhner 01063 Flexible Copper Busbar?
The Wöhner 01063 is a premium flexible tinned laminated copper busbar engineered for demanding industrial power distribution applications. Designed as a practical alternative to rigid copper busbars, it combines excellent electrical conductivity with outstanding installation flexibility, making it ideal for switchgear, distribution panels and OEM electrical equipment.
Manufactured from multiple tin-plated copper laminations with durable halogen-free insulation, the Wöhner 01063 eliminates the need for specialist bending equipment whilst providing superior resistance to corrosion and oxidation. The tinned copper finish reduces preparation time at connection points and offers additional protection in harsh industrial environments.
Featuring a 6 × 20 × 1 mm laminated construction, a 120 mm² cross-sectional area, a 2 metre length and an IEC rated current of 477 A, the Wöhner 01063 is perfectly suited to industrial switchboards, motor control centres and low-voltage power distribution systems.
Key Advantages
- Flexible tinned laminated copper busbar for industrial power distribution.
- 477 A IEC rated current.
- Tin-plated copper improves corrosion resistance and simplifies termination preparation.
- Integrated halogen-free insulation enhances installation safety.
- Reduces installation time compared with rigid copper busbars.
- Suitable for switchgear, OEM machinery and control panels.
Key Features
- Wöhner flexible insulated copper busbar.
- Tinned laminated copper construction.
- Rated current: 477 A.
- Construction: 6 × 20 × 1 mm.
- Cross-sectional area: 120 mm².
- Length: 2 metres.
- Halogen-free insulation.
- Complies with IEC 61439-1, UL 758 and UL 67.
Flexible Busbar Technology
The Wöhner 01063 uses multiple thin copper laminations to create a highly flexible conductor capable of carrying substantial currents while allowing tight bending radii. This design reduces mechanical stress on terminals and electrical equipment, resulting in faster installation and improved long-term reliability compared with conventional rigid copper busbars.
Its tin-plated copper construction provides enhanced resistance to oxidation and aggressive industrial environments, helping maintain low contact resistance and dependable electrical performance throughout its service life.
Typical Applications
- Industrial switchboards.
- Low-voltage power distribution systems.
- Motor control centres.
- OEM electrical equipment.
- Busbar interconnections.
- Industrial automation systems.
