Why Choose the Wöhner 01196 Flexible Copper Busbar?
The Wöhner 01196 is a high-quality laminated flexible copper busbar designed for efficient high-current power distribution within industrial switchboards, control panels and electrical distribution systems. As part of the proven Wöhner 60Classic range, it offers a practical alternative to rigid copper busbars, allowing fast installation without the need for specialist busbar bending equipment.

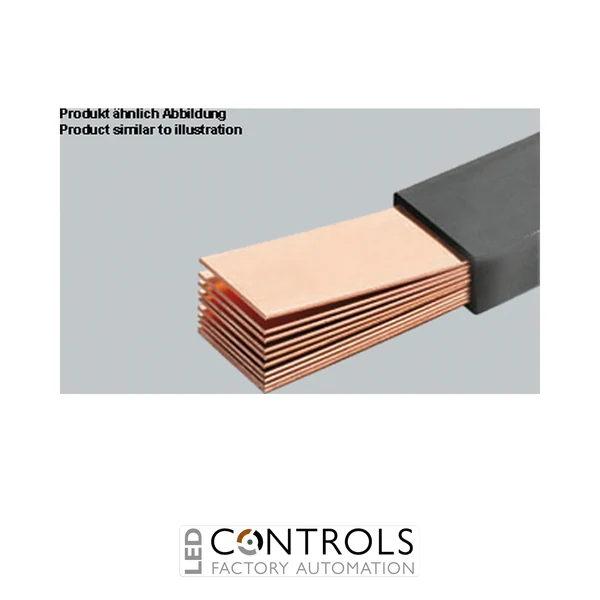

Manufactured from multiple laminated plain copper strips with durable insulation, the busbar features a 4 × 15.5 × 0.8 mm construction, a 49.6 mm² cross-sectional area and is supplied in a 2 metre length. Its flexible design enables simple routing through confined enclosures while maintaining excellent electrical conductivity.
Rated at 279 A, the Wöhner 01196 incorporates 2 mm insulation, meaning additional protective covers are generally unnecessary. Its halogen-free construction and 105°C insulation make it ideal for demanding industrial applications where safety, reliability and installation efficiency are essential.
Key Advantages
- Flexible laminated copper busbar for industrial power distribution.
- 279 A IEC rated current.
- No specialist busbar bending equipment required.
- 2 mm insulation eliminates the need for additional protective covers in many applications.
- Halogen-free construction.
- Excellent flexibility for compact switchboards and control panels.
Key Features
- Wöhner laminated flexible copper busbar.
- 4 × 15.5 × 0.8 mm laminated construction.
- 49.6 mm² copper cross-section.
- 279 A IEC rated current.
- 2 metre length.
- Plain laminated copper conductor.
- 2 mm insulation thickness.
- Halogen-free construction.
Efficient Flexible High-Current Connections
Laminated flexible copper busbars provide a practical alternative to solid copper bars by dramatically reducing installation time while maintaining excellent electrical performance. Their flexible construction allows simple routing around electrical equipment without the need for expensive bending tools or complex fabrication.
The Wöhner 01196 combines compact dimensions, dependable current-carrying capacity and durable insulation to provide a reliable solution for industrial switchgear, OEM equipment and low-voltage power distribution. Its integrated 2 mm insulation generally removes the need for additional protective covers, helping to simplify installation and reduce assembly costs.
Typical Applications
- Industrial switchboards.
- Machine control panels.
- Low-voltage power distribution systems.
- OEM electrical equipment.
- Motor control centres.
- Flexible high-current electrical connections.
