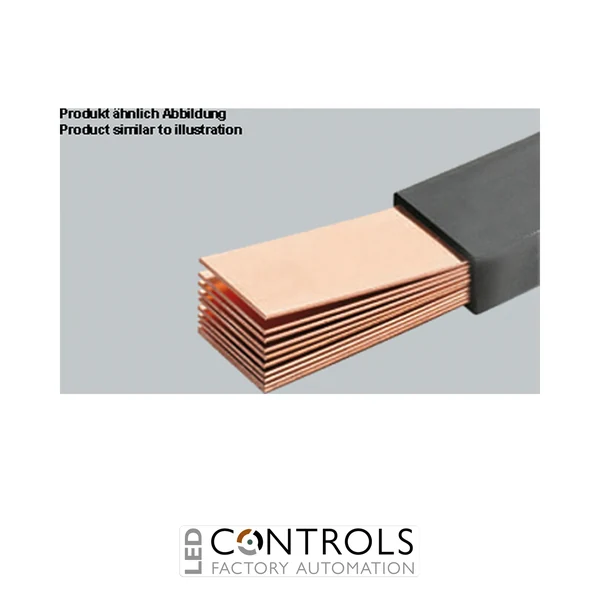

Why Choose the Wöhner 01324 Flexible Copper Busbar?
The Wöhner 01324 is a high-performance plain, insulated flexible copper busbar designed for demanding industrial power distribution systems. Constructed from five laminated copper strips measuring 63 × 1 mm, it delivers an impressive 1061 A rated current while offering significantly greater installation flexibility than conventional solid copper busbars. It is supplied in a convenient 2 metre length.
The laminated copper construction eliminates the need for specialised busbar bending equipment, making installation quicker and easier in compact switchgear and distribution panels. A 2 mm insulating layer provides integral touch protection, removing the need for additional covers in many applications while improving installation safety.
Manufactured using halogen-free insulating material and certified to IEC and UL standards, the Wöhner 01324 is ideal for panel builders, switchgear manufacturers and OEMs requiring reliable high-current flexible connections.
Key Advantages
- Flexible laminated copper busbar for industrial power distribution.
- 1061 A IEC current rating.
- 2 metre length for versatile installation.
- Five laminated copper conductors provide excellent flexibility.
- Integrated 2 mm insulation eliminates the need for additional covering.
- Halogen-free construction.
- Suitable for demanding industrial environments.
Key Features
- Wöhner insulated flexible copper busbar.
- Construction: 5 × 63 × 1 mm laminated copper.
- Rated current: 1061 A (IEC).
- Length: 2,000 mm.
- Cross-sectional area: 315 mm².
- Excellent flexibility for compact installations.
- Suitable for UL feeder circuits above 250 V.
- Halogen-free insulating material.
Flexible High-Current Power Distribution
The Wöhner 01324 provides an efficient solution wherever high-current electrical connections require greater flexibility than traditional rigid copper busbars can offer. Its laminated construction allows simple routing around equipment while maintaining excellent conductivity and reducing installation time.
The integrated insulation enhances operator safety while simplifying panel design, making the busbar ideal for modern switchgear, industrial control panels and OEM power distribution systems.
Typical Applications
- Industrial switchgear.
- Main power distribution boards.
- Busbar systems.
- Control panel assemblies.
- OEM electrical equipment.
- Industrial automation installations.
