Why Choose the Wöhner 01343 Flexible Copper Busbar?

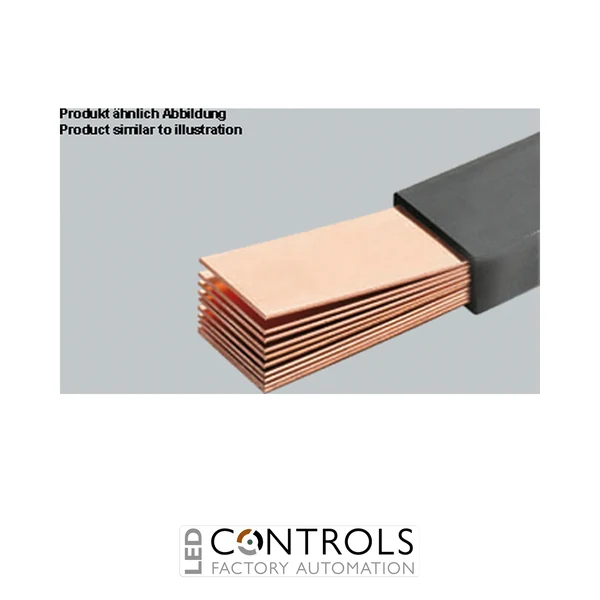

The Wöhner 01343 is a heavy-duty plain, insulated flexible copper busbar engineered for high-current industrial power distribution applications. Manufactured using eight laminated copper strips measuring 50 × 1 mm, it delivers an impressive 1114 A rated current whilst offering far greater installation flexibility than conventional solid copper busbars. It is supplied in a practical 2 metre length.
The laminated copper construction eliminates the need for specialist busbar bending equipment, allowing quicker installation in switchgear, control panels and OEM equipment. Its 2 mm integral insulation provides effective touch protection, reducing the need for additional covers whilst improving installation safety.
Manufactured using halogen-free insulating material and suitable for IEC and UL industrial applications, the Wöhner 01343 provides a reliable solution wherever compact, flexible, high-current power connections are required.
Key Advantages
- Flexible laminated copper busbar for industrial power distribution.
- 1114 A IEC current rating.
- 2 metre length for versatile installation.
- Eight laminated copper conductors provide excellent flexibility.
- Integrated insulation eliminates the need for additional covering.
- Halogen-free construction.
- Ideal for high-current switchgear and control panels.
Key Features
- Wöhner insulated flexible copper busbar.
- Construction: 8 × 50 × 1 mm laminated copper.
- Rated current: 1114 A (IEC).
- Length: 2,000 mm.
- Cross-sectional area: 400 mm².
- Factory insulated (105°C).
- Suitable for UL feeder circuits above 250 V.
- Halogen-free insulating material.
High-Capacity Flexible Power Distribution
The Wöhner 01343 is designed for applications where very high current capacity must be combined with installation flexibility. Its laminated construction allows easy routing around equipment whilst maintaining excellent electrical conductivity and reducing mechanical stress during installation.
The integrated insulation improves operator safety and simplifies panel design, making the busbar ideal for modern industrial switchgear, power distribution boards and OEM electrical equipment.
Typical Applications
- Industrial switchgear.
- Main power distribution systems.
- Busbar assemblies.
- Control panel manufacture.
- OEM electrical equipment.
- Industrial automation systems.
