Why Choose the Wöhner 01509 Flexible Copper Busbar?

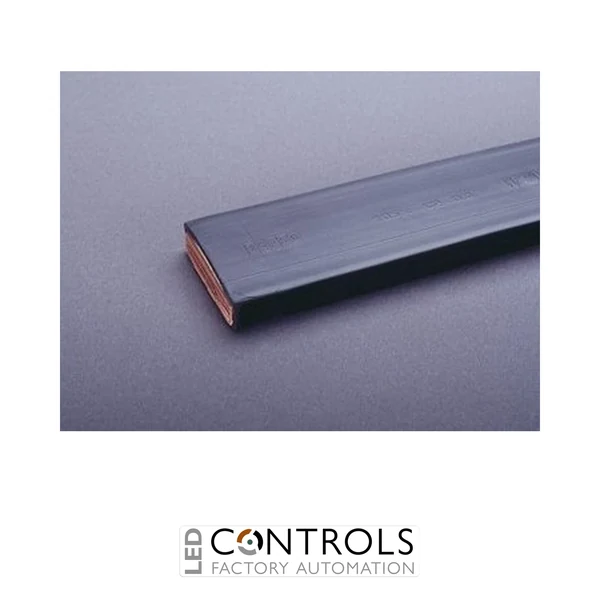

The Wöhner 01509 is a laminated flexible copper busbar with factory-applied insulation, designed for demanding industrial power distribution applications. Featuring a 10 × 50 × 1 mm laminated copper construction and a 2 metre length, it offers a highly flexible alternative to rigid copper busbars, simplifying installation while maintaining excellent current-carrying performance.
The laminated construction eliminates the need for specialised bending equipment required for solid copper busbars, significantly reducing installation time. Its 2 mm thick insulation provides integral protection, removing the need for additional insulating covers in many applications.
Rated for 1244 A, the Wöhner 01509 is suitable for industrial switchgear, machine building, OEM equipment and UL feeder circuits above 250 V. It complies with IEC 61439-1:2020, UL 758 and UL 67, making it suitable for international installations.
Key Advantages
- Flexible laminated copper busbar for easier installation.
- 1244 A current carrying capacity.
- 10 × 50 × 1 mm laminated copper construction.
- 2 metre supplied length.
- Integrated 2 mm insulation eliminates additional covers.
- Suitable for UL feeder circuits above 250 V.
Key Features
- Flexible laminated copper busbar.
- Plain copper conductors with factory insulation.
- Dimensions: 10 × 50 × 1 mm.
- Length: 2000 mm.
- Rated current: 1244 A.
- Ideal replacement for rigid copper busbars.
- Reduced installation effort.
- Designed for industrial power distribution systems.
Simplify High Current Power Connections
The Wöhner 01509 combines the conductivity of solid copper with the installation flexibility of a laminated construction. The flexible design allows installers to route high-current connections without the specialist bending tools required for conventional copper bars, reducing installation time while maintaining reliable electrical performance.
Its integrated insulation improves electrical safety and helps minimise assembly complexity, making it an excellent choice for modern switchgear, distribution systems and OEM equipment requiring compact, high-current interconnections.
Typical Applications
- Industrial switchboards.
- Main low voltage power distribution.
- Machine building.
- OEM electrical equipment.
- High-current cabinet interconnections.
- UL-compliant feeder circuits.
