Why Choose the ABB ABB orion stand plate 2TLA022312R5000?

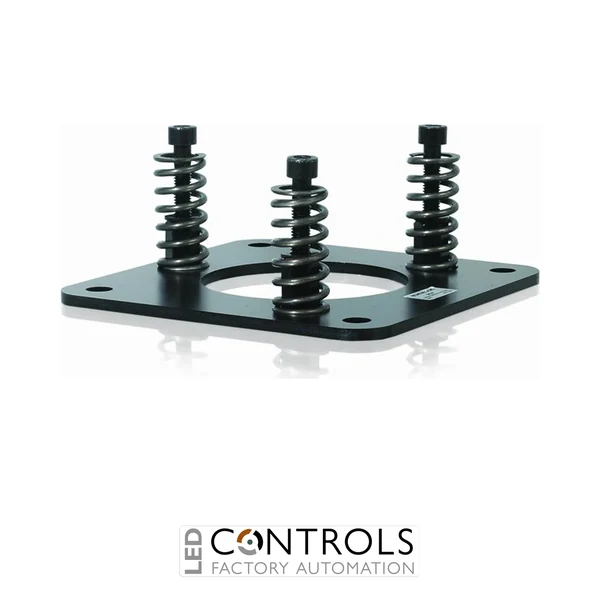

The ABB ABB orion stand plate 2TLA022312R5000 is a dedicated adjustment plate for ABB Orion protective stands. Designed to simplify installation and alignment, the Orion Stand Plate provides a practical means of making horizontal levelling adjustments when installing compatible Orion safeguarding equipment.
The adjustment plate is designed for use with ABB Orion Stand products in their different available heights and with compatible Orion Mirror K assemblies. By providing an adjustable interface at the base of the installation, it helps installers achieve accurate positioning of the protective stand or mirror arrangement on the mounting surface.
With dimensions of 195 × 195 × 48 mm and a net weight of 1.8 kg, the Orion Stand Plate is a substantial purpose-designed accessory for industrial machine safeguarding installations. It complements the wider ABB Orion range, including installations incorporating Orion1, Orion2 and Orion3 optical safety devices.
Key Advantages
- Purpose-designed adjustment plate for ABB Orion protective stands.
- Simplifies horizontal levelling during installation.
- Suitable for ABB Orion Stand products in different heights.
- Suitable for compatible Orion Mirror K assemblies.
- Helps achieve accurate positioning of optical machine safeguarding equipment.
- Robust 195 × 195 mm footprint for integration with compatible Orion installations.
Key Features
- ABB Orion Stand Plate.
- Dedicated protective stand adjustment accessory.
- Designed to simplify horizontal levelling.
- Compatible with Orion Stand.
- Compatible with Orion Mirror K.
- Suitable for installations using Orion1 Base and Extended.
- Suitable for installations using Orion2 Base and Extended.
- Suitable for installations using Orion3 Base and Extended.
- Compact, mechanically robust accessory for industrial safeguarding systems.
Reliable Levelling and Adjustment for ABB Orion Protective Stands
Accurate positioning is important when installing optical machine safety equipment. Safety light curtains, light grids and deviating mirrors depend on correct mechanical alignment to establish and maintain the intended protective field. An uneven mounting surface can make this alignment more difficult, particularly when using free-standing protective structures.
The ABB Orion Stand Plate is designed to simplify the horizontal levelling of an Orion Stand or compatible Orion Mirror K. The plate provides an adjustment solution at the base of the assembly, helping installers establish a correctly positioned stand before completing alignment of the associated optical safety equipment.
Typical Applications
- Horizontal levelling of ABB Orion protective stands.
- Adjustment of compatible Orion Mirror K installations.
- Safety light curtain stand installation.
- Safety light grid stand installation.
- Deviating mirror and perimeter guarding systems.
- Robotic cell safeguarding.
- Automated production and assembly machinery.
- Machine access and perimeter protection installations.
