Why Choose the ABB ABB orion1-4-14-060-e 2TLA022301R0300?

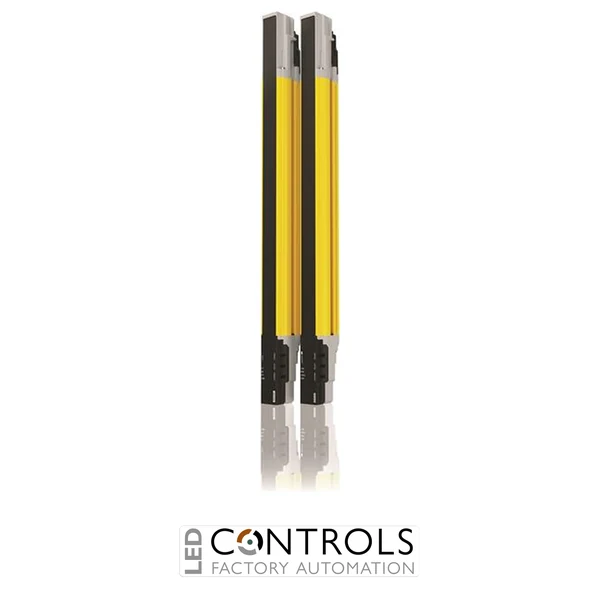

The ABB ABB orion1-4-14-060-e 2TLA022301R0300 is an Orion1 Extended Type 4 safety light curtain designed for finger detection and non-contact personnel protection around hazardous industrial machinery. Supplied as a complete transmitter and receiver pair, it creates an optical protective field that enables frequent access to machinery while supporting high-performance safety functions.
With a fine 14 mm resolution and 600 mm protected height, the Orion1-4-14-060-E is designed for finger detection close to hazardous machine zones. Its 0.2–7 m operating range provides flexible positioning of the transmitter and receiver across a wide variety of machine layouts.
As part of the Orion1 Extended range, this model offers advanced functionality including cascading, muting and blanking. These capabilities make it a flexible choice for machinery requiring more sophisticated optical safeguarding than a basic light curtain while retaining compact dimensions and straightforward integration.
Key Advantages
- 14 mm resolution provides sensitive finger detection.
- 600 mm protected height provides substantial coverage across machine access points.
- Wide 0.2–7 m operating range supports flexible installation.
- Type 4 safety light curtain for high-performance machine-safety applications.
- Extended functionality supports cascading, muting and blanking.
- Supplied as a complete transmitter and receiver set.
Key Features
- ABB Orion1 Extended safety light curtain.
- Transmitter + receiver supplied together.
- Type 4 electro-sensitive protective equipment.
- 14 mm detection resolution.
- Designed for finger detection.
- 600 mm protected field height.
- 0.2–7 m operating range.
- 19 ms response time.
- Supports cascading of compatible light curtains.
- Supports muting functionality.
- Supports blanking and reduced-resolution functions.
- Beam coding capability for flexible multi-device installations.
Reliable Extended Optical Protection for Hazardous Machinery
Safety light curtains establish an invisible optical protective field between a transmitter and receiver. Interruption of this field is detected by the safety system so that a correctly designed machine control system can initiate the required stopping function. This enables frequent access to hazardous machinery without the physical obstruction associated with conventional fixed guarding.
The Orion1-4-14-060-E combines 14 mm finger detection with the additional flexibility of the Orion1 Extended platform. Cascading can help protect more complex access arrangements, while muting and blanking functions provide options for applications where materials or authorised objects need to interact with the protective field. The complete safeguarding system, including safety distance and machine stopping performance, must be correctly designed and validated for the application.
Typical Applications
- Point-of-operation protection on industrial machinery.
- Manually loaded and unloaded production equipment.
- Robotic and automated manufacturing cells.
- Packaging and material-handling machinery.
- Production lines requiring muting functionality.
- Complex machine access points requiring cascading or blanking.
