Why Choose the ABB ABB orion1-4-14-075-b 2TLA022300R0400?

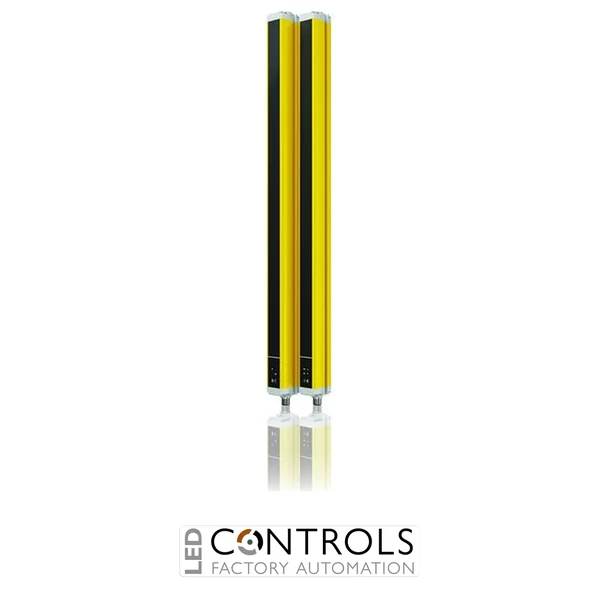

The ABB ABB orion1-4-14-075-b 2TLA022300R0400 is an Orion1 Base Type 4 safety light curtain designed for finger detection and access protection around hazardous industrial machinery. Supplied as a complete transmitter and receiver pair, it provides non-contact presence detection without requiring a physical guard to be opened or operated.
With a fine 14 mm resolution and 750 mm protected height, the Orion1-4-14-075-B is designed to detect fingers entering the protected field. Its operating range of 0.2–6 m provides flexible positioning of the transmitter and receiver while making the light curtain particularly suitable for safeguarding machinery requiring frequent operator access.
The Orion1 Base range combines compact dimensions with straightforward installation and high-level machine-safety performance. The 2TLA022300R0400 can be installed vertically for point-of-operation access protection or, where the application permits, horizontally to help protect or define hazardous working areas.
Key Advantages
- 14 mm resolution provides sensitive finger detection.
- Generous 750 mm protected height for safeguarding machine access points.
- 0.2–6 m operating range provides flexible transmitter-to-receiver positioning.
- Type 4 safety light curtain for high-performance machinery safety applications.
- Supplied as a complete transmitter and receiver system.
- Non-contact protection enables frequent machine access without mechanically opening a safety device.
Key Features
- ABB Orion1 Base safety light curtain.
- Transmitter + receiver supplied together.
- Type 4 electro-sensitive protective equipment.
- 14 mm detection resolution.
- Designed for finger detection.
- 750 mm protected field height.
- 0.2 m minimum operating range.
- 6 m maximum operating range.
- Compact profile for industrial machinery installations.
- Suitable for vertical access protection and appropriate horizontal area-protection applications.
Reliable Optical Protection for Hazardous Machinery
Safety light curtains create an invisible optical protective field between a transmitter and receiver. When a person or object interrupts the protected field, the safety system can initiate the required machine stopping function. This allows machinery to be safeguarded without the physical obstruction of a conventional fixed guard at locations where frequent access is necessary.
The Orion1-4-14-075-B combines 14 mm finger resolution with a 750 mm protective field, making it particularly suitable for installation close to hazardous machine zones where fine detection is required. Correct safety distance, mounting, stopping performance and overall system validation must be determined for the individual machine application.
Typical Applications
- Point-of-operation protection on industrial machinery.
- Manually loaded and unloaded production equipment.
- Robotic and automated manufacturing cells.
- Assembly and processing machinery.
- Packaging machinery requiring frequent operator access.
- Hazardous-area and work-zone protection.
