Why Choose the ABB ABB orion1-4-14-075-e 2TLA022301R0400?

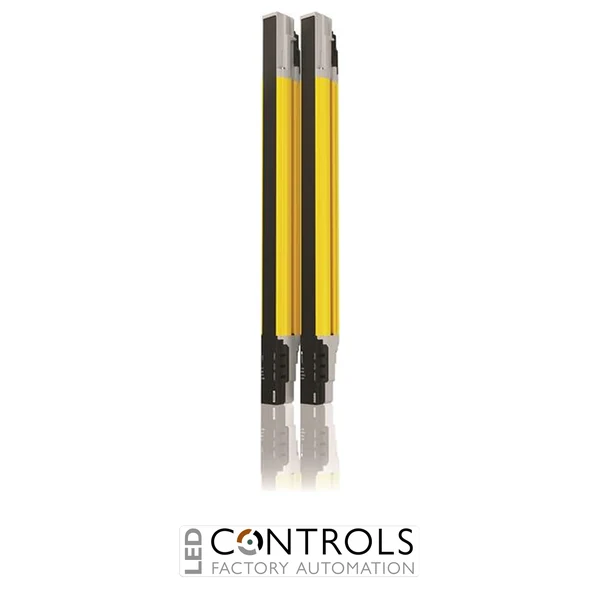

The ABB ABB orion1-4-14-075-e 2TLA022301R0400 is an Orion1 Extended Type 4 safety light curtain designed for finger detection and non-contact personnel protection around hazardous industrial machinery. Supplied as a complete transmitter and receiver pair, it creates an optical protective field suitable for machinery where operators require frequent access to potentially hazardous areas.
With a fine 14 mm resolution and 750 mm protected height, the Orion1-4-14-075-E is designed to detect fingers entering the protected field. Its 0.2–7 m operating range provides flexible transmitter and receiver positioning, while its 80 optical beams provide comprehensive coverage across the protected height.
As part of the ABB Orion1 Extended range, this model combines high-level optical safeguarding with advanced functionality including cascading, muting and blanking. Its compact construction and configurable functions make it particularly suitable for sophisticated machine-safety applications requiring reliable detection together with greater application flexibility.
Key Advantages
- 14 mm resolution provides sensitive finger detection.
- Generous 750 mm protected height for safeguarding machine access points.
- Wide 0.2–7 m operating range supports flexible installation.
- Type 4 safety light curtain for high-performance machine-safety applications.
- Advanced cascading, muting and blanking functionality.
- Supplied as a complete transmitter and receiver set.
Key Features
- ABB Orion1 Extended safety light curtain.
- Transmitter + receiver supplied together.
- Type 4 electro-sensitive protective equipment.
- 14 mm detection resolution.
- Designed for finger detection.
- 750 mm protected field height.
- 80 optical beams.
- 0.2–7 m operating range.
- 20 ms response time without beam coding.
- 34 ms response time with beam coding.
- Supports cascading of compatible Orion1 Extended light curtains.
- Supports advanced muting and blanking functions.
Reliable Extended Optical Protection for Hazardous Machinery
Safety light curtains create an invisible optical protective field between a transmitter and receiver. When a person interrupts this field, the safety system can initiate the required machine stopping function. This enables operators to access machinery frequently without the physical obstruction associated with conventional fixed guards, while maintaining appropriate personnel protection when the complete safety system is correctly designed.
The Orion1-4-14-075-E combines 14 mm finger detection with the enhanced functionality of the Orion1 Extended platform. Cascading allows compatible light curtains to be integrated into more complex safeguarding arrangements, while muting and blanking provide additional flexibility where materials, workpieces or permitted objects need to interact with the protective field. Safety distances and the complete safeguarding system must be correctly calculated and validated for each machine application.
Typical Applications
- Point-of-operation protection on industrial machinery.
- Manually loaded and unloaded production equipment.
- Robotic and automated manufacturing cells.
- Packaging and material-handling machinery.
- Production lines requiring muting functionality.
- Complex machine access points requiring cascading or blanking.
