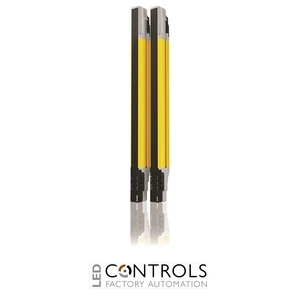

Why Choose the ABB Orion1-4-14-090-E Safety Light Curtain?
The ABB Orion1-4-14-090-E is a high-performance Type 4 safety light curtain designed to protect personnel working around hazardous industrial machinery and automated equipment. Part of the ABB Orion1 Extended series, this complete transmitter and receiver set provides reliable finger detection while allowing frequent access to safeguarded machine areas without the need for physical guards.
With a fine 14 mm detection resolution, the Orion1-4-14-090-E is suitable for finger protection applications. It provides a 900 mm protected height and an operating range of 0.2–7 m, making it suitable for safeguarding machine openings, workstations and production equipment where operators need regular access to the process.
The Orion1 Extended platform combines compact construction with advanced safeguarding functions including muting, blanking and cascading. These capabilities make the light curtain particularly useful in automated production environments where materials may need to pass through the protected area while personnel remain protected.
Key Advantages
- Type 4 safety light curtain for high-level machine safeguarding applications.
- Fine 14 mm resolution provides reliable finger detection.
- Generous 900 mm protected height for safeguarding machine access points.
- 0.2–7 m operating range supports flexible transmitter-to-receiver positioning.
- Advanced muting, blanking and cascading functions for automated machinery.
- Complete transmitter and receiver set simplifies specification and installation.
- Compact Orion1 Extended construction helps minimise installation space around machinery.
Key Features
- ABB Orion1 Extended safety light curtain series.
- Type 4 safety light curtain.
- 14 mm detection resolution for finger protection.
- 900 mm protected height.
- 0.2–7 m sensing range.
- Supplied as a transmitter and receiver pair.
- Integrated support for muting applications.
- Blanking functionality for flexible safeguarding configurations.
- Cascading capability for protecting multiple sides or openings.
- IP65 degree of protection.
- Designed for industrial machinery and hazardous-area access protection.
Reliable Machine Safety and Access Protection
Safety light curtains create an electro-sensitive protective field between a transmitter and receiver. If a person or object interrupts one or more of the monitored beams, the safety system can signal the associated machine control system so that hazardous movement is stopped or prevented from starting.
The ABB Orion1 Extended range is particularly suited to machinery requiring repeated operator access. The 14 mm resolution of the Orion1-4-14-090-E enables finger detection, while its muting, blanking and cascading capabilities provide the flexibility required for sophisticated automated production and material-handling installations.
Typical Applications
- Industrial machine guarding and hazardous-zone protection.
- Automated production and assembly machinery.
- Packaging and processing equipment.
- Robot cells and automated workstations.
- Conveyor and material handling systems.
- Machines requiring frequent operator loading or unloading.
- Production lines requiring muting or blanking functionality.
