Why Choose the ABB Orion1-4-14-105-B 2TLA022300R0600 Safety Light Curtain?

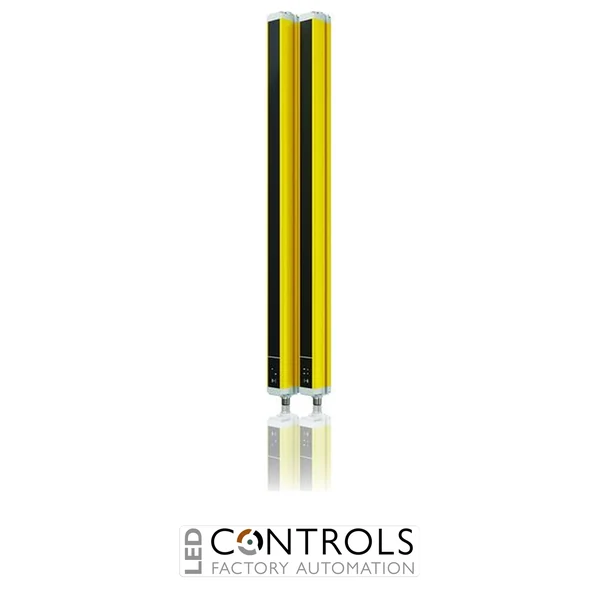

The ABB Orion1-4-14-105-B 2TLA022300R0600 is a high-performance Type 4 safety light curtain designed for finger detection and access protection around hazardous industrial machinery. As part of the ABB Orion1 Base safety light curtain series, it combines a transmitter and receiver with a fine 14 mm resolution, providing dependable non-contact detection where operators require frequent access to a machine.
This Orion1 Base model provides a 1050 mm protected height with 112 optical beams and an operating range of 0.2–6 m. Its 14 mm resolution is designed for finger detection, making the light curtain particularly suitable for installation close to hazardous machine areas where reliable detection of small objects is required.
With a response time of 33 ms and a Type 4 safety rating, the Orion1-4-14-105-B provides fast detection for demanding machine safety applications. The compact transmitter and receiver can be used vertically for access and point-of-operation protection or horizontally to help protect and define hazardous work zones.
Key Advantages
- High-performance Type 4 safety light curtain for industrial machinery.
- Fine 14 mm resolution designed for finger detection.
- 1050 mm protected height for comprehensive machine access protection.
- Operating range of 0.2–6 m for flexible installation.
- 33 ms response time for rapid detection of interruptions to the protective field.
- Supplied as a transmitter and receiver safety light curtain system.
Key Features
- ABB Orion1 Base safety light curtain series.
- 14 mm detection resolution.
- 1050 mm protected height.
- 112 optical beams.
- 0.2–6 m operating distance.
- 33 ms response time.
- Type 4 safety light curtain.
- Designed for finger detection in machine safety applications.
- Transmitter and receiver supplied as the safety light curtain system.
- Suitable for vertical access protection and horizontal area protection.
Reliable Non-Contact Protection for Industrial Machinery
Safety light curtains such as the ABB Orion1 create an optical protective field between a transmitter and receiver. When a person or object interrupts this field, the safety system can signal the machine control system so that hazardous movement is stopped according to the design of the machine safety circuit. This provides convenient access without requiring a physical guard to be opened and closed during every operating cycle.
The Orion1 Base range is particularly suited to machinery requiring repeated operator access. The 14 mm resolution of the 2TLA022300R0600 is intended for finger detection, while its 1050 mm protected height and 0.2–6 m operating distance provide flexibility for safeguarding production equipment, manually serviced machines and hazardous work zones.
Typical Applications
- Point-of-operation protection on industrial machinery.
- Finger detection around hazardous machine areas.
- Production and assembly machinery.
- Packaging and processing equipment.
- Automated manufacturing cells.
- Machine loading and unloading areas.
- Horizontal hazardous-area protection.
- OEM machinery and industrial automation safety systems.
