Why Choose the ABB ABB orion1-4-30-015-b 2TLA022302R0000 Safety Light Curtain?

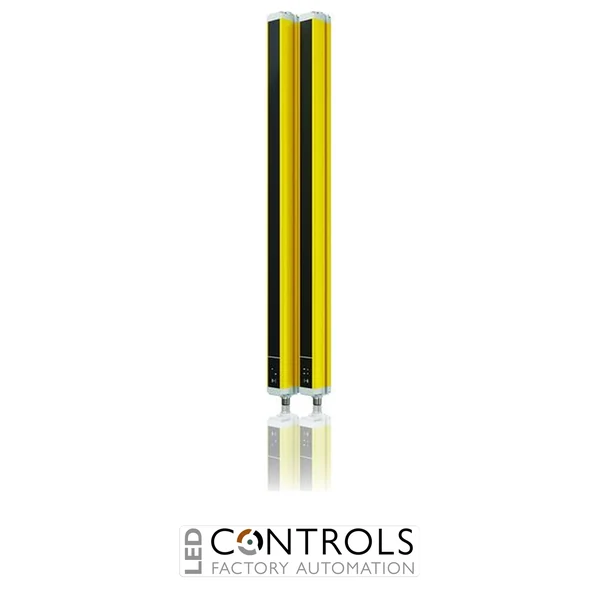

The ABB ABB orion1-4-30-015-b 2TLA022302R0000 is a compact Type 4 safety light curtain transmitter and receiver set designed for reliable hand detection around hazardous machinery and automated equipment. Part of the ABB Orion1 Base series, this model combines a 30 mm resolution with a 150 mm protected height for non-contact machine guarding applications.
The Orion1-4-30-015-B creates an optical protective field between its transmitter and receiver. Interruption of this field can be detected by the machine safety system so that hazardous movement can be stopped. Its 0.2–19 m operating range provides considerable flexibility when positioning the two light curtain units around machinery and work areas.
With its compact dimensions and hand-detection resolution, this Orion1 Base light curtain is particularly suited to machine openings and access points where operators require frequent interaction with equipment. The complete transmitter and receiver set has a product height of approximately 233 mm, width of 65 mm and depth of 37 mm.
Key Advantages
- 30 mm hand-detection resolution for safeguarding hazardous machine access points.
- 150 mm protected height in a compact light curtain format.
- Type 4 safety light curtain designed for demanding machinery safety applications.
- Wide 0.2–19 m operating range offers flexible transmitter and receiver positioning.
- Supplied as a transmitter and receiver set for complete optical guarding.
- Compact dimensions simplify integration around machinery and production equipment.
Key Features
- ABB Orion1 Base safety light curtain series.
- Complete transmitter and receiver set.
- 30 mm device resolution for hand detection.
- 150 mm optical protected height.
- 0.2–19 m operating distance.
- Type 4 safety classification.
- 8 optical beams.
- Fast 9 ms response time.
- Compact 233 × 65 × 37 mm dimensions.
- Suitable for vertical machine guarding and horizontal area-protection installations.
Reliable Hand Detection for Industrial Machinery
Safety light curtains provide non-contact personnel protection by establishing an optical sensing field around hazardous machinery. If a hand or other object of sufficient size interrupts the protective field, the light curtain signals the associated machine safety system, allowing hazardous movement to be stopped in accordance with the overall machine safety design.
The ABB Orion1 Base range is designed for straightforward integration into industrial machinery where repeated access to a hazardous area is necessary. The 30 mm resolution of the Orion1-4-30-015-B is optimised for hand detection, while its long operating range enables the transmitter and receiver to be installed across both compact and comparatively wide machine openings.
Typical Applications
- Machine access and hazardous-area guarding.
- Manually serviced production machinery.
- Automated assembly and manufacturing equipment.
- Packaging and processing machinery.
- Conveyor and material handling systems.
- Robotic and automated production cells.
