Why Choose the ABB Orion1-4-30-045-B Safety Light Curtain?

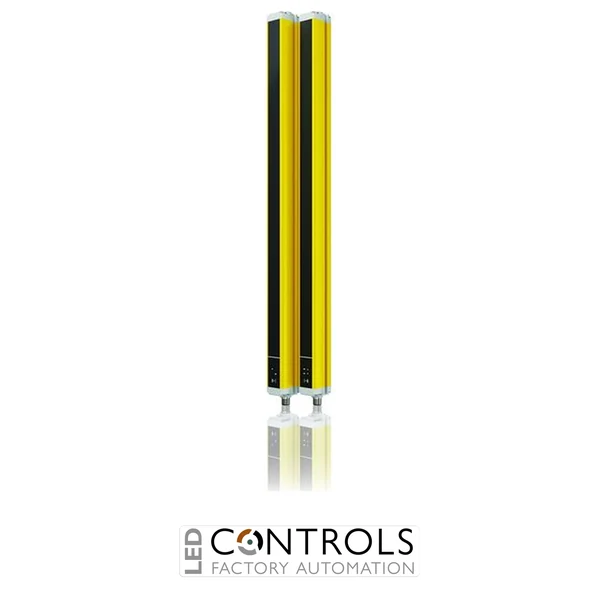

The ABB Orion1-4-30-045-B is a compact and reliable Type 4 safety light curtain designed for safeguarding personnel around hazardous industrial machinery and automated equipment. Part of the ABB Orion1 Base series, it is supplied as a transmitter and receiver pair and provides dependable hand detection for applications where operators require frequent access to machinery.
With a 30 mm detection resolution and 450 mm protected height, the Orion1-4-30-045-B is designed for hand protection across machine openings and hazardous work areas. Its wide 0.2–19 m operating range provides considerable flexibility when positioning the transmitter and receiver on machinery, production lines and automated systems.
The Orion1 Base platform combines straightforward operation with compact dimensions for convenient machine integration. Operating from a 24 V DC supply and featuring an IP65 enclosure, the Orion1-4-30-045-B provides a practical electro-sensitive safeguarding solution for vertical machine guarding as well as horizontal area protection.
Key Advantages
- Type 4 safety light curtain designed for high-level machine safeguarding.
- 30 mm resolution provides reliable hand detection.
- 450 mm protected height provides effective coverage across machine access points.
- Long 0.2–19 m operating range enables flexible transmitter and receiver positioning.
- Fast 13 ms response time supports rapid detection of interruptions to the protective field.
- Compact construction simplifies integration close to hazardous machinery.
- IP65 protection supports dependable operation in industrial environments.
Key Features
- ABB Orion1 Base safety light curtain series.
- Type 4 electro-sensitive protective equipment.
- 30 mm detection resolution for hand protection.
- 450 mm protected height.
- 24 optical beams.
- 0.2–19 m sensing range.
- 13 ms response time.
- 24 V DC operating supply.
- Supplied as a transmitter and receiver pair.
- IP65 ingress protection.
- Durable aluminium construction.
- Suitable for vertical machine guarding and horizontal area protection.
Reliable Machine Safety and Access Protection
Safety light curtains create an electro-sensitive protective field between a transmitter and receiver. When a hand or other object interrupts one or more of the monitored beams, the safety system can signal the associated machine safety controls so that hazardous movement is stopped or prevented from starting.
The ABB Orion1 Base range is designed for machinery where repeated access to hazardous areas is necessary, including manually serviced equipment. The 30 mm resolution of the Orion1-4-30-045-B provides hand detection, while its 450 mm protected height and long operating range make it suitable for a wide variety of industrial safeguarding layouts. Orion1 Base light curtains can also be installed horizontally to limit work zones or provide area protection.
Typical Applications
- Industrial machine guarding and hazardous-zone protection.
- Automated production and assembly machinery.
- Packaging and processing equipment.
- Machine openings requiring regular operator access.
- Conveyor and material handling systems.
- Manually serviced production machinery.
- Horizontal area protection and work-zone limitation.
