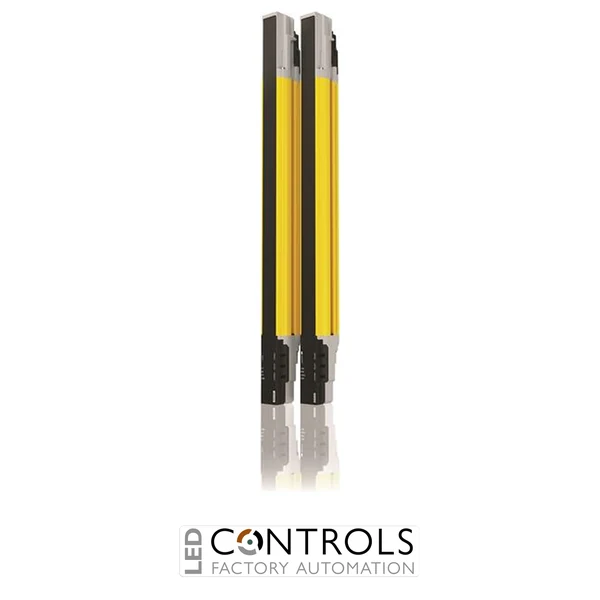

Why Choose the ABB ABB orion1-4-30-075-e 2TLA022303R0400 Safety Light Curtain?
The ABB ABB orion1-4-30-075-e 2TLA022303R0400 is an advanced Type 4 safety light curtain transmitter and receiver set designed for reliable hand detection around hazardous industrial machinery and automated equipment. Part of the ABB Orion1 Extended series, this model combines a 30 mm resolution with a 750 mm protected height, making it suitable for safeguarding machine openings and work areas where frequent operator access is required.
The Orion1-4-30-075-E creates an optoelectronic protective field between its transmitter and receiver. Interruption of this field can be detected by the machine safety system so that hazardous movement can be stopped in accordance with the overall machine safety design. Its wide 0.2–20 m operating range provides considerable flexibility when positioning the transmitter and receiver around industrial machinery.
As an Orion1 Extended model, this safety light curtain incorporates advanced functionality including cascading, muting and blanking. It operates from a 24 V DC supply, provides 40 optical beams and has a response time of 16 ms without beam coding, helping provide fast and dependable protection in demanding automation applications.
Key Advantages
- 30 mm hand-detection resolution for safeguarding hazardous machine access points.
- 750 mm protected height provides substantial vertical safety coverage.
- Type 4 safety light curtain designed for demanding machinery safety applications.
- Wide 0.2–20 m operating range provides flexible transmitter and receiver positioning.
- Advanced cascading, muting and blanking functionality supports sophisticated machine guarding arrangements.
- IP65 protection supports dependable operation in industrial environments.
Key Features
- ABB Orion1 Extended safety light curtain series.
- Complete transmitter and receiver set.
- 30 mm resolution for hand detection.
- 750 mm protected height.
- 0.2–20 m operating range.
- Type 4 safety classification.
- 40 optical beams.
- 16 ms response time without beam coding.
- 24 V DC operating supply.
- Supports cascading, muting and blanking.
- IP65 degree of protection.
Reliable Hand Detection for Industrial Machinery
Safety light curtains provide non-contact personnel protection by establishing an optical sensing field around hazardous machinery. When a hand or another object of sufficient size interrupts the protective field, the safety system can initiate the appropriate stopping function, helping prevent access to hazardous movement without requiring a permanent physical barrier across the opening.
The ABB Orion1 Extended range is designed for applications requiring additional machine safety functionality. Features including cascading, muting and blanking provide greater flexibility when configuring complex safeguarding systems, while the Orion1-4-30-075-E's 30 mm resolution is specifically suited to hand detection in areas where repeated access to machinery is necessary.
Typical Applications
- Machine access and hazardous-area guarding.
- Manually serviced production machinery.
- Automated assembly and manufacturing equipment.
- Packaging and processing machinery.
- Robotic cells and automated production systems.
- Conveyor and material handling equipment.
- Machine safety systems requiring muting, blanking or cascading functionality.
