Why Choose the EMAS L1K13MEM121 EMAS L1 SERIES LIMIT SW. SNP ACT. 1NC+1NO- METAL ROLLER? The EMAS L1K13MEM121 EMAS L1 SERIES LIMIT SW. SNP ACT. 1NC+1NO- METAL ROLLER (L1K13MEM121) is a purpose-built solution for demanding industrial environments. It delivers long-term reliability, is easy to install, and supports a wide range of automation or safety applications. Key Takeaways Heavy-duty industrial construction Simple, secure installation Frequently Asked Questions About the EMAS L1K13MEM121 EMAS L1 SERIES LIMIT SW. SNP ACT. 1NC+1NO- METAL ROLLER What is the rated voltage? What is the current rating? What is the power rating? What are the typical applications? Does it meet industry certifications? Speed & Safety Benefits Quick installation: Designed for fast, hassle-free integration into control panels Reliable operation: Engineered for continuous use in demanding applications Certified safe: Meets or exceeds CE and RoHS requirements Key Features of the EMAS L1K13MEM121 EMAS L1 SERIES LIMIT SW. SNP ACT. 1NC+1NO- METAL ROLLER Industrial-grade reliability Manufactured by a leading brand Meets CE and RoHS standards EMAS L1K13MEM121 EMAS L1 SERIES LIMIT SW. SNP ACT. 1NC+1NO- METAL ROLLER Overview Refer to datasheet for detailed product overview. Choose the EMAS L1K13MEM121 EMAS L1 SERIES LIMIT SW. SNP ACT. 1NC+1NO- METAL ROLLER (L1K13MEM121) for reliability, compliance, and robust performance in every industrial application. Frequently Asked Questions What is the rated voltage? See product datasheet. What is the current rating? See product datasheet. What is the power rating? See product datasheet. What are the typical applications? Ideal for industrial automation, panels, and control systems. Does it meet industry certifications? Yes, this product is CE and RoHS compliant. Refer to datasheet for more information.
£42.12

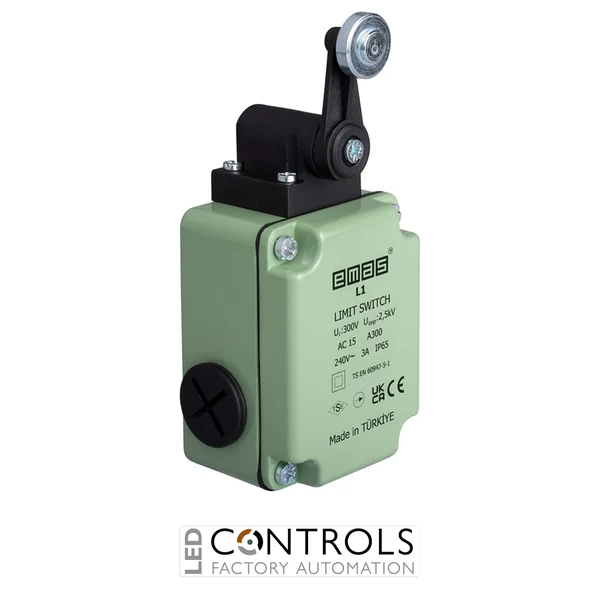

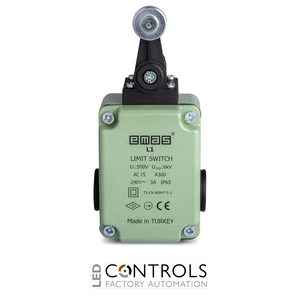

The EMAS L1K13MEM121 is a heavy-duty industrial limit switch designed for accurate position detection and reliable machine control applications. Featuring a rugged metal body construction, an 18 mm metal roller arm actuator, and a snap action 1NO+1NC contact configuration, the L1K13MEM121 provides fast and dependable switching performance for demanding industrial environments.
Manufactured by EMAS Elektroteknik, the L1K13MEM121 belongs to the L1 Metal Body limit switch series. It is designed for industrial automation, machinery, and position sensing applications where durability, precision, and long operating life are required.
| Specification | Value |
|---|---|
| Brand | EMAS |
| Part Number | L1K13MEM121 |
| Series | L1 Metal Body |
| Product Type | Limit Switch |
| Body Type | Metal Body |
| Actuator | 18 mm Metal Roller Arm |
| Contact Configuration | 1NO + 1NC |
| Operating Mechanism | Snap Action |
| Rated Current | 3 A at 240V AC |
| Usage Category | AC-15 |
| Mechanical Life | 10,000,000 operations |
| Electrical Life | 1,000,000 operations |
| Operating Frequency | 3000 operations/hour mechanical, 1800 operations/hour electrical |
| Insulation Voltage | 300 V |
| Impulse Withstand Voltage | 2.5 kV |
| Protection Degree | IP65 |
| Contact Material | AgNi |
| Operating Temperature | -25°C to +80°C |
| Cable Section | 1 - 2.5 mm² |
| Screw Torque | 1.5 Nm |
| Cable Entries | 3 x PG13.5 compatible entries |
| Standards | TS EN 60947-5-1 / UL 508 / VDE 0660 |
The EMAS L1K13MEM121 limit switch is suitable for industrial automation equipment, conveyor systems, machine tools, production lines, safety interlocks, and mechanical position monitoring applications requiring precise and repeatable switching.
The EMAS L1K13MEM121 is a metal body industrial limit switch with an 18 mm metal roller arm actuator and snap action 1NO+1NC contacts.
The EMAS L1K13MEM121 features one normally open (1NO) and one normally closed (1NC) contact.
The L1K13MEM121 uses an 18 mm metal roller arm actuator designed for reliable mechanical position detection.
It is commonly used in industrial machinery, automation systems, conveyors, and equipment requiring dependable position sensing.
