Why Choose the EMAS L1K13MIM311 EMAS L1 SERIES LIMIT SW. SNP ACT. 1NC+1NO- METAL ROLLER? The EMAS L1K13MIM311 EMAS L1 SERIES LIMIT SW. SNP ACT. 1NC+1NO- METAL ROLLER (L1K13MIM311) is a purpose-built solution for demanding industrial environments. It delivers long-term reliability, is easy to install, and supports a wide range of automation or safety applications. Key Takeaways Heavy-duty industrial construction Simple, secure installation Frequently Asked Questions About the EMAS L1K13MIM311 EMAS L1 SERIES LIMIT SW. SNP ACT. 1NC+1NO- METAL ROLLER What is the rated voltage? What is the current rating? What is the power rating? What are the typical applications? Does it meet industry certifications? Speed & Safety Benefits Quick installation: Designed for fast, hassle-free integration into control panels Reliable operation: Engineered for continuous use in demanding applications Certified safe: Meets or exceeds CE and RoHS requirements Key Features of the EMAS L1K13MIM311 EMAS L1 SERIES LIMIT SW. SNP ACT. 1NC+1NO- METAL ROLLER Industrial-grade reliability Manufactured by a leading brand Meets CE and RoHS standards EMAS L1K13MIM311 EMAS L1 SERIES LIMIT SW. SNP ACT. 1NC+1NO- METAL ROLLER Overview Refer to datasheet for detailed product overview. Choose the EMAS L1K13MIM311 EMAS L1 SERIES LIMIT SW. SNP ACT. 1NC+1NO- METAL ROLLER (L1K13MIM311) for reliability, compliance, and robust performance in every industrial application. Frequently Asked Questions What is the rated voltage? See product datasheet. What is the current rating? See product datasheet. What is the power rating? See product datasheet. What are the typical applications? Ideal for industrial automation, panels, and control systems. Does it meet industry certifications? Yes, this product is CE and RoHS compliant. Refer to datasheet for more information.
£38.24

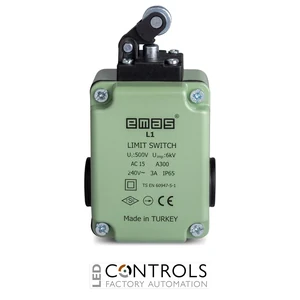

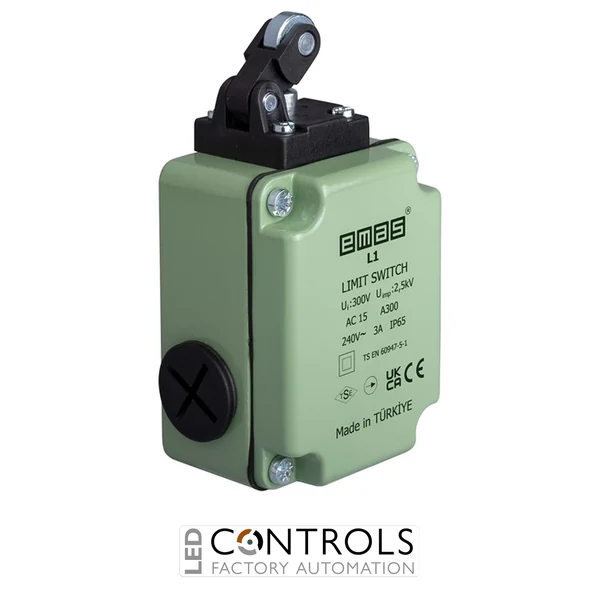

The EMAS L1K13MIM311 is a rugged industrial limit switch designed for precise position sensing and reliable machine control applications. Featuring a durable metal body construction, a 14 mm metal roller lever actuator, and a snap action 1NO+1NC contact configuration, the L1K13MIM311 provides fast and dependable switching performance for industrial automation environments.
Manufactured by EMAS Elektroteknik, the L1K13MIM311 belongs to the L1 Metal Body limit switch series. It features a changeable contact block design, three cable entry points suitable for PG13.5 or M20 x 1.5 glands, and is built for demanding industrial machinery and automation applications.
| Specification | Value |
|---|---|
| Brand | EMAS |
| Part Number | L1K13MIM311 |
| Series | L1 Metal Body |
| Product Type | Limit Switch |
| Body Type | Metal Body |
| Actuator | 14 mm Metal Roller Lever |
| Actuator Movement | Angular Action Roller One Way |
| Contact Configuration | 1NO + 1NC |
| Operating Mechanism | Snap Action |
| Rated Current | 3 A at 240V AC |
| Usage Category | AC-15 |
| Mechanical Life | 10,000,000 operations |
| Electrical Life | 1,000,000 operations |
| Operating Frequency | 3000 operations/hour mechanical, 1800 operations/hour electrical |
| Insulation Voltage | 300 V |
| Impulse Withstand Voltage | 2.5 kV |
| Protection Degree | IP65 |
| Contact Material | AgNi |
| Operating Temperature | -25°C to +80°C |
| Cable Section | 1 - 2.5 mm² |
| Screw Torque | 1.5 Nm |
| Cable Entries | 3 x PG13.5 / M20 x 1.5 compatible entries |
| Standards | TS EN 60947-5-1 / UL 508 / VDE 0660 |
The EMAS L1K13MIM311 limit switch is suitable for industrial automation equipment, conveyor systems, machine tools, production lines, safety interlocks, and mechanical position monitoring applications requiring accurate and repeatable switching.
The EMAS L1K13MIM311 is a metal body industrial limit switch with a 14 mm metal roller lever actuator and snap action 1NO+1NC contacts.
The EMAS L1K13MIM311 features one normally open (1NO) and one normally closed (1NC) contact.
The L1K13MIM311 uses a 14 mm metal roller lever actuator designed for reliable mechanical position detection.
It is commonly used in industrial machinery, automation systems, conveyors, and equipment requiring dependable position sensing.
