Why Choose the EMAS L1K13MUM331 EMAS L1 SERIES LIMIT SW. SNP ACT. 1NC+1NO LINEAR ROLLER? The EMAS L1K13MUM331 EMAS L1 SERIES LIMIT SW. SNP ACT. 1NC+1NO LINEAR ROLLER (L1K13MUM331) is a purpose-built solution for demanding industrial environments. It delivers long-term reliability, is easy to install, and supports a wide range of automation or safety applications. Key Takeaways Heavy-duty industrial construction Simple, secure installation Frequently Asked Questions About the EMAS L1K13MUM331 EMAS L1 SERIES LIMIT SW. SNP ACT. 1NC+1NO LINEAR ROLLER What is the rated voltage? What is the current rating? What is the power rating? What are the typical applications? Does it meet industry certifications? Speed & Safety Benefits Quick installation: Designed for fast, hassle-free integration into control panels Reliable operation: Engineered for continuous use in demanding applications Certified safe: Meets or exceeds CE and RoHS requirements Key Features of the EMAS L1K13MUM331 EMAS L1 SERIES LIMIT SW. SNP ACT. 1NC+1NO LINEAR ROLLER Industrial-grade reliability Manufactured by a leading brand Meets CE and RoHS standards EMAS L1K13MUM331 EMAS L1 SERIES LIMIT SW. SNP ACT. 1NC+1NO LINEAR ROLLER Overview Refer to datasheet for detailed product overview. Choose the EMAS L1K13MUM331 EMAS L1 SERIES LIMIT SW. SNP ACT. 1NC+1NO LINEAR ROLLER (L1K13MUM331) for reliability, compliance, and robust performance in every industrial application. Frequently Asked Questions What is the rated voltage? See product datasheet. What is the current rating? See product datasheet. What is the power rating? See product datasheet. What are the typical applications? Ideal for industrial automation, panels, and control systems. Does it meet industry certifications? Yes, this product is CE and RoHS compliant. Refer to datasheet for more information.
£39.52

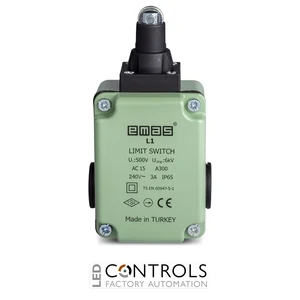

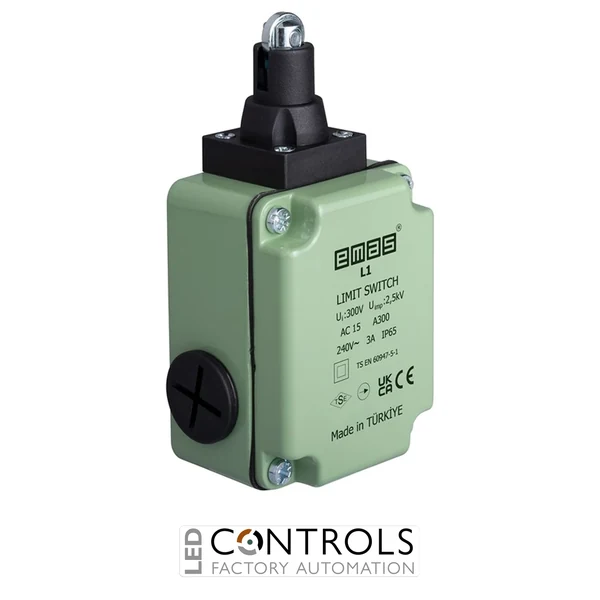

The EMAS L1K13MUM331 is a high-performance industrial limit switch from the EMAS L1 Metal Body series, engineered for accurate position detection and dependable machine control applications. Featuring a rugged metal body construction, a 13mm metal roller plunger actuator, and a snap action contact mechanism with a 1NO+1NC configuration, this limit switch delivers reliable switching performance in demanding industrial environments.
Designed for automation machinery, conveyor systems, and industrial control applications, the EMAS L1K13MUM331 includes a changeable contact block, three cable entry points suitable for PG13.5 or M20x1.5 optional glands, and IP65 protection for enhanced durability against dust and moisture.
| Brand | EMAS |
|---|---|
| Model | L1K13MUM331 |
| Product Type | Limit Switch |
| Series | L1 Metal Body |
| Body Material | Metal |
| Actuator Type | Metal Roller Plunger |
| Actuator Diameter | 13 mm |
| Contact Action | Snap Action |
| Contact Configuration | 1NO + 1NC |
| Rated Current (Ie) | 3A at 240V AC |
| Usage Category | AC15 |
| Mechanical Life | 10,000,000 operations minimum |
| Electrical Life | 1,000,000 operations minimum |
| Operating Frequency | Mechanical: 3000 operations/hour, Electrical: 1800 operations/hour |
| Insulation Voltage (Ui) | 300 V |
| Impulse Withstand Voltage (Uimp) | 2.5 kV |
| Dielectric Strength | 1.890 kV AC |
| Isolation Resistance | 10 MΩ at 500V DC |
| Operating Temperature | -25°C to +80°C |
| Protection Degree | IP65 |
| Pollution Degree | 3 |
| Contact Material | AgNi |
| Cable Section | 1-2.5 mm² |
| Screw Torque | 1.5 Nm |
| Standards | TS EN 60947-5-1, UL 508, VDE 0660, CE, UKCA |
The EMAS L1K13MUM331 uses a 13mm metal roller plunger actuator designed for precise linear mechanical detection.
The limit switch features a snap action mechanism with 1 normally open (NO) and 1 normally closed (NC) contact.
The EMAS L1K13MUM331 has an IP65 protection rating, making it suitable for industrial environments exposed to dust and moisture.
It is commonly used in automation machinery, conveyors, production lines, and industrial control systems requiring reliable position sensing.
