EMAS L1K13SOP103 EMAS L1 SERIES LIMIT SW.SNAP ACTION 1NC+1NO-SPIRAL ARM

Why Choose the EMAS L1K13SOP103 EMAS L1 SERIES LIMIT SW.SNAP ACTION 1NC+1NO-SPIRAL ARM?

SKU: L1K13SOP103MPN: L1K13SOP103

List Price £36.95 ex VAT

Your Price (ex VAT)

£36.95

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £36.95

Trade pricing is personalised to your account

Manufacturer Lead Time

£36.95

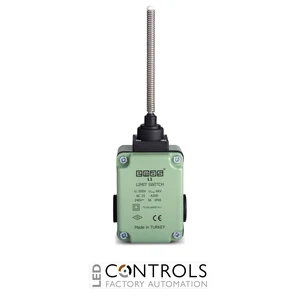

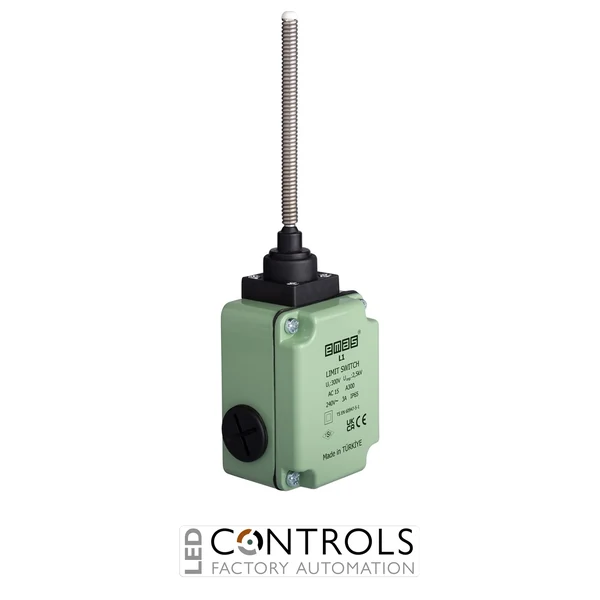

EMAS L1K13SOP103 Limit Switch - L1 Metal Body 7mm Plastic Blunt Spring Lever Snap Action 1NO+1NC

The EMAS L1K13SOP103 is a robust industrial limit switch from the EMAS L1 Metal Body series, designed for precise position sensing and reliable machine control applications. Featuring a durable metal body construction, a 7mm plastic blunt spring lever actuator, and a snap action contact mechanism with a 1NO+1NC configuration, this limit switch provides dependable switching performance for industrial automation systems.

Designed for industrial machinery, conveyors, and automation equipment, the EMAS L1K13SOP103 offers flexible installation with three side PG13.5 cable entries, a changeable contact block, and IP65 protection. Its sensitive spring lever actuator design makes it suitable for applications requiring reliable multi-directional mechanical detection and long operational life.

Key Features of EMAS L1K13SOP103

Heavy-Duty Metal Body: Provides excellent mechanical durability for demanding industrial environments.
7mm Plastic Blunt Spring Lever: Enables sensitive multi-directional actuation and reliable position detection.
Snap Action Switching: Provides fast and consistent electrical switching performance.
1NO + 1NC Contact Configuration: Supports flexible control circuit integration.
IP65 Protection Rating: Protects against dust and water ingress for industrial applications.
Changeable Contact Block: Allows easier maintenance and configuration flexibility.
Three Cable Entry Points: Supports PG13.5 or M20x1.5 compatible cable gland installation.

Applications

Industrial automation machinery
Conveyor systems
Machine position monitoring
Production line equipment
Mechanical end-position detection
Industrial control systems

Technical Specifications

Brand	EMAS
Model	L1K13SOP103
Product Type	Limit Switch
Series	L1 Metal Body
Body Material	Metal
Actuator Type	Plastic Blunt Spring Lever
Actuator Diameter	7 mm
Contact Action	Snap Action
Contact Configuration	1NO + 1NC
Rated Current (Ie)	3A at 240V AC
Usage Category	AC15
Mechanical Life	10,000,000 operations minimum
Electrical Life	1,000,000 operations minimum
Operating Frequency	Mechanical: 3000 operations/hour, Electrical: 1800 operations/hour
Insulation Voltage (Ui)	300 V
Impulse Withstand Voltage (Uimp)	2.5 kV
Dielectric Strength	1.890 kV AC
Isolation Resistance	10 MΩ at 500V DC
Operating Temperature	-25°C to +80°C
Protection Degree	IP65
Pollution Degree	3
Contact Material	AgNi
Cable Section	1-2.5 mm²
Screw Torque	1.5 Nm
Standards	TS EN 60947-5-1, UL 508, VDE 0660, CE, UKCA
Contacts	1NO + 1NC
IP Rating	IP65
Actuator Type	Spring rod / wobble stick
Housing Material	Metal

Frequently Asked Questions

What actuator does the EMAS L1K13SOP103 use?

The EMAS L1K13SOP103 uses a 7mm plastic blunt spring lever actuator designed for sensitive and flexible mechanical position detection.

What contact configuration does the EMAS L1K13SOP103 have?

This limit switch features a snap action contact mechanism with 1 normally open (NO) and 1 normally closed (NC) contact.

What is the protection rating of the EMAS L1K13SOP103?

The EMAS L1K13SOP103 has an IP65 protection rating, making it suitable for industrial environments exposed to dust and moisture.

Where is the EMAS L1K13SOP103 commonly used?

It is commonly used in automation machinery, conveyors, manufacturing equipment, and industrial control applications requiring reliable mechanical switching.

Brand	EMAS
Model	L1K13SOP103
Product Type	Limit Switch
Series	L1 Metal Body
Body Material	Metal
Actuator Type	Plastic Blunt Spring Lever
Actuator Diameter	7 mm
Contact Action	Snap Action
Contact Configuration	1NO + 1NC
Rated Current (Ie)	3A at 240V AC
Usage Category	AC15
Mechanical Life	10,000,000 operations minimum
Electrical Life	1,000,000 operations minimum
Operating Frequency	Mechanical: 3000 operations/hour, Electrical: 1800 operations/hour
Insulation Voltage (Ui)	300 V
Impulse Withstand Voltage (Uimp)	2.5 kV
Dielectric Strength	1.890 kV AC
Isolation Resistance	10 MΩ at 500V DC
Operating Temperature	-25°C to +80°C
Protection Degree	IP65
Pollution Degree	3
Contact Material	AgNi
Cable Section	1-2.5 mm²
Screw Torque	1.5 Nm
Standards	TS EN 60947-5-1, UL 508, VDE 0660, CE, UKCA
Contacts	1NO + 1NC
IP Rating	IP65
Actuator Type	Spring rod / wobble stick
Housing Material	Metal
