Why Choose the EMAS L2K13MEM122 EMAS L2 SERIES LIMIT SW. SNP ACT. 1NC+1NO METAL ROLLER? The EMAS L2K13MEM122 EMAS L2 SERIES LIMIT SW. SNP ACT. 1NC+1NO METAL ROLLER (L2K13MEM122) is a purpose-built solution for demanding industrial environments. It delivers long-term reliability, is easy to install, and supports a wide range of automation or safety applications. Key Takeaways Heavy-duty industrial construction Simple, secure installation Frequently Asked Questions About the EMAS L2K13MEM122 EMAS L2 SERIES LIMIT SW. SNP ACT. 1NC+1NO METAL ROLLER What is the rated voltage? What is the current rating? What is the power rating? What are the typical applications? Does it meet industry certifications? Speed & Safety Benefits Quick installation: Designed for fast, hassle-free integration into control panels Reliable operation: Engineered for continuous use in demanding applications Certified safe: Meets or exceeds CE and RoHS requirements Key Features of the EMAS L2K13MEM122 EMAS L2 SERIES LIMIT SW. SNP ACT. 1NC+1NO METAL ROLLER Industrial-grade reliability Manufactured by a leading brand Meets CE and RoHS standards EMAS L2K13MEM122 EMAS L2 SERIES LIMIT SW. SNP ACT. 1NC+1NO METAL ROLLER Overview Refer to datasheet for detailed product overview. Choose the EMAS L2K13MEM122 EMAS L2 SERIES LIMIT SW. SNP ACT. 1NC+1NO METAL ROLLER (L2K13MEM122) for reliability, compliance, and robust performance in every industrial application. Frequently Asked Questions What is the rated voltage? See product datasheet. What is the current rating? See product datasheet. What is the power rating? See product datasheet. What are the typical applications? Ideal for industrial automation, panels, and control systems. Does it meet industry certifications? Yes, this product is CE and RoHS compliant. Refer to datasheet for more information.
£38.24

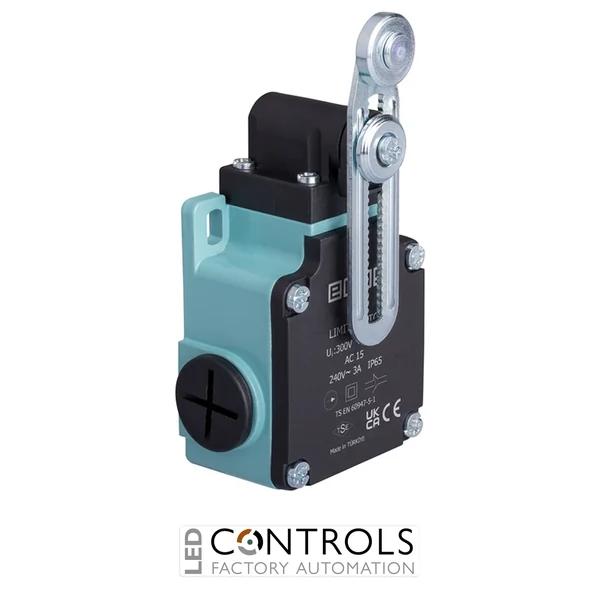

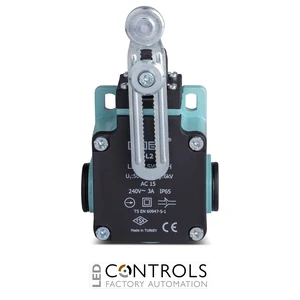

The EMAS L2K13MEM122 Limit Switch is a high-performance industrial position switch designed for accurate and reliable machine control applications. Featuring an L2 metal body construction, an 18 mm adjustable metal roller arm actuator, and a 1NO + 1NC snap action contact configuration, this limit switch delivers dependable switching performance in demanding industrial environments.
Designed for automation and control systems, the EMAS L2K13MEM122 provides excellent mechanical durability with a long service life, IP65 environmental protection, and compatibility with industrial machinery requiring precise position detection.
| Specification | Value |
|---|---|
| Manufacturer | EMAS |
| Part Number | L2K13MEM122 |
| Body Material | Metal Body with Plastic Cover |
| Actuator Material | Metal |
| Actuator Type | Adjustable Roller Arm |
| Contact Material | AgNi |
| Insulation Voltage | 300 V |
| Impulse Withstand Voltage | 2.5 kV |
| Isolation Resistance | 10 MΩ (500 V DC) |
| Operating Frequency | Mechanical 3000 operations/hour, Electrical 1800 operations/hour |
| Cable Section | 1 - 2.5 mm² |
The EMAS L2K13MEM122 limit switch is suitable for a wide range of industrial automation and machine control applications, including:
The EMAS L2K13MEM122 combines rugged construction, precise mechanical operation, and reliable snap action switching technology. Its adjustable metal roller arm provides flexible installation options, while its long mechanical and electrical lifespan makes it a dependable solution for industrial automation applications requiring consistent performance.
The EMAS L2K13MEM122 is an industrial limit switch from the L2 Metal Body series featuring an 18 mm adjustable metal roller arm, snap action mechanism, and 1NO + 1NC contacts.
This model uses an adjustable 18 mm metal roller arm actuator designed for accurate mechanical position detection.
The EMAS L2K13MEM122 has an IP65 protection rating, making it suitable for industrial environments requiring protection from dust and water jets.
The switch uses a snap action contact system with a 1NO + 1NC configuration and a rated operational current of 3 A at 240 V AC.
