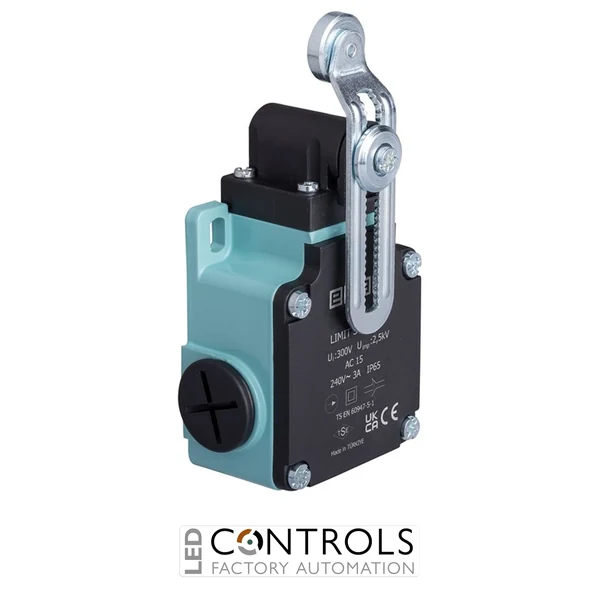

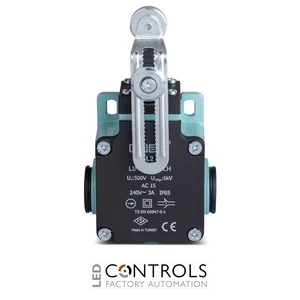

EMAS L2K13MEM124 Limit Switch – L2 Metal Body 18mm Metal Adjustable Roller Arm Snap Action 1NO+1NC
The EMAS L2K13MEM124 Limit Switch is a rugged industrial snap action limit switch designed for accurate position detection and reliable machine control applications.
Featuring an L2 metal body construction, an 18 mm metal adjustable roller arm actuator, and a
1NO + 1NC contact configuration, this switch provides dependable switching performance for industrial automation systems.
Designed for demanding industrial environments, the EMAS L2K13MEM124 includes a durable metal body and plastic cover design, replaceable contact block,
multiple cable entry options, and high mechanical endurance. It is suitable for machinery, automation equipment, and industrial control applications requiring
consistent position monitoring.
Product Features
- Brand: EMAS
- Model: L2K13MEM124
- Product Type: Industrial Limit Switch
- Series: L2 Metal Body
- Actuator Type: 18 mm Metal Adjustable Roller Arm
- Contact Action: Snap Action
- Contact Configuration: 1NO + 1NC
- Rated Operational Current: 3 A at 240 V AC
- Usage Category: AC15
- Mechanical Life: Minimum 10,000,000 operations
- Electrical Life: Minimum 1,000,000 operations
- Protection Rating: IP65
- Operating Temperature: -25°C to +80°C
- Standards: TS EN 60947-5-1, UL 508, VDE 0660
Applications
The EMAS L2K13MEM124 limit switch is designed for a wide range of industrial automation and control applications, including:
- Industrial machinery position sensing
- Automation and control systems
- Conveyor systems
- Material handling equipment
- Machine safety circuits
- Production line monitoring
Why Choose EMAS L2K13MEM124?
The EMAS L2K13MEM124 combines robust construction, flexible actuator adjustment, and reliable snap action switching technology.
With a long mechanical lifespan, IP65 protection, and industrial-grade materials, it provides a dependable solution for precise position control
in demanding automation environments.
