Why Choose the EMAS L2K13MIM211 EMAS L2 SERIES LIMIT SW. SNP ACT. 1NC+1NO-METAL ROLLER? The EMAS L2K13MIM211 EMAS L2 SERIES LIMIT SW. SNP ACT. 1NC+1NO-METAL ROLLER (L2K13MIM211) is a purpose-built solution for demanding industrial environments. It delivers long-term reliability, is easy to install, and supports a wide range of automation or safety applications. Key Takeaways Heavy-duty industrial construction Simple, secure installation Frequently Asked Questions About the EMAS L2K13MIM211 EMAS L2 SERIES LIMIT SW. SNP ACT. 1NC+1NO-METAL ROLLER What is the rated voltage? What is the current rating? What is the power rating? What are the typical applications? Does it meet industry certifications? Speed & Safety Benefits Quick installation: Designed for fast, hassle-free integration into control panels Reliable operation: Engineered for continuous use in demanding applications Certified safe: Meets or exceeds CE and RoHS requirements Key Features of the EMAS L2K13MIM211 EMAS L2 SERIES LIMIT SW. SNP ACT. 1NC+1NO-METAL ROLLER Industrial-grade reliability Manufactured by a leading brand Meets CE and RoHS standards EMAS L2K13MIM211 EMAS L2 SERIES LIMIT SW. SNP ACT. 1NC+1NO-METAL ROLLER Overview Refer to datasheet for detailed product overview. Choose the EMAS L2K13MIM211 EMAS L2 SERIES LIMIT SW. SNP ACT. 1NC+1NO-METAL ROLLER (L2K13MIM211) for reliability, compliance, and robust performance in every industrial application. Frequently Asked Questions What is the rated voltage? See product datasheet. What is the current rating? See product datasheet. What is the power rating? See product datasheet. What are the typical applications? Ideal for industrial automation, panels, and control systems. Does it meet industry certifications? Yes, this product is CE and RoHS compliant. Refer to datasheet for more information.
£43.83

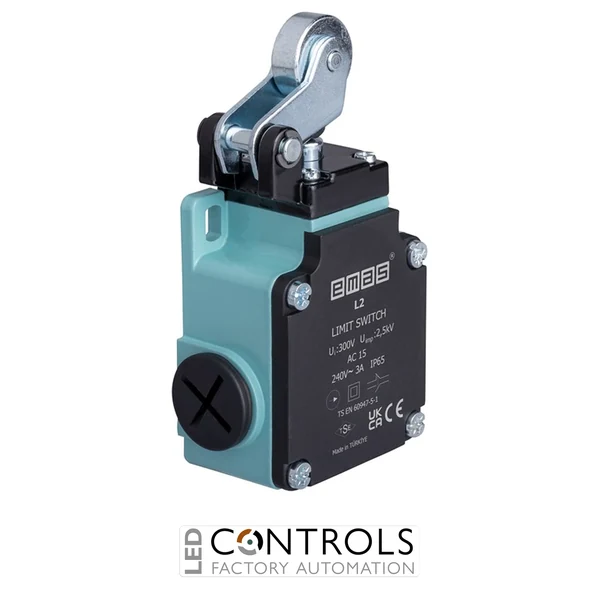

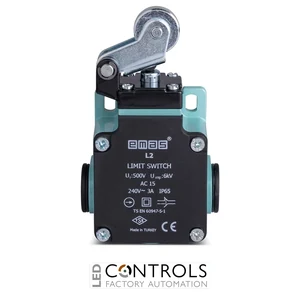

The EMAS L2K13MIM211 Limit Switch is a robust industrial position sensing solution designed for reliable operation in automation, machinery, and control applications. Featuring an L2 metal body construction, a 22 mm metal roller lever actuator, and a 1NO + 1NC snap action contact configuration, this limit switch provides accurate switching performance and long-term reliability in demanding industrial environments.
Designed for industrial automation systems, the EMAS L2K13MIM211 features a durable metal body with plastic cover, replaceable contact block, multiple actuator options, and IP65 protection. It is suitable for machinery, conveyors, production equipment, and industrial control systems requiring dependable position detection.
| Specification | Value |
|---|---|
| Manufacturer | EMAS |
| Part Number | L2K13MIM211 |
| Series | L2 Metal Body |
| Body Construction | Metal Body with Plastic Cover |
| Actuator Material | Metal |
| Actuator Diameter | 22 mm |
| Actuator Type | Metal Roller Lever |
| Contact Material | AgNi |
| Contact Configuration | 1NO + 1NC |
| Rated Current | 3 A (240 V AC) |
| Insulation Voltage | 300 V |
| Impulse Withstand Voltage | 2.5 kV |
| Isolation Resistance | 10 MΩ (500 V DC) |
| Protection Degree | IP65 |
| Cable Entries | 3 cable entries suitable for PG13.5 or M20x1.5 glands |
The EMAS L2K13MIM211 limit switch is suitable for various industrial automation and machine control applications, including:
The EMAS L2K13MIM211 combines rugged metal construction, reliable snap action switching, and a durable roller lever actuator for accurate position monitoring. With IP65 protection, high mechanical endurance, and industrial-grade components, it provides a dependable solution for demanding automation applications.
The EMAS L2K13MIM211 is an L2 series industrial limit switch featuring a 22 mm metal roller lever actuator, snap action operation, and 1NO + 1NC contacts.
This model uses a 22 mm metal roller lever actuator designed for reliable mechanical position detection.
The EMAS L2K13MIM211 has an IP65 protection rating, making it suitable for industrial environments requiring protection against dust and water jets.
The switch uses a snap action mechanism with one normally open contact and one normally closed contact (1NO + 1NC).
