EMAS L2K13MIM311 EMAS L2 SERIES LIMIT SW. SNP ACT. 1NC+1NO-METAL ROLLER

Why Choose the EMAS L2K13MIM311 EMAS L2 SERIES LIMIT SW.

SKU: L2K13MIM311MPN: L2K13MIM311

List Price £37.12 ex VAT

Your Price (ex VAT)

£37.12

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £37.12

Trade pricing is personalised to your account

Manufacturer Lead Time

£37.12

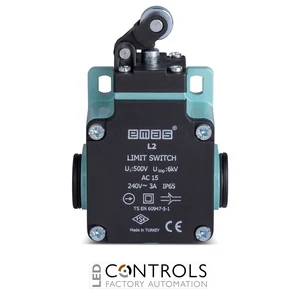

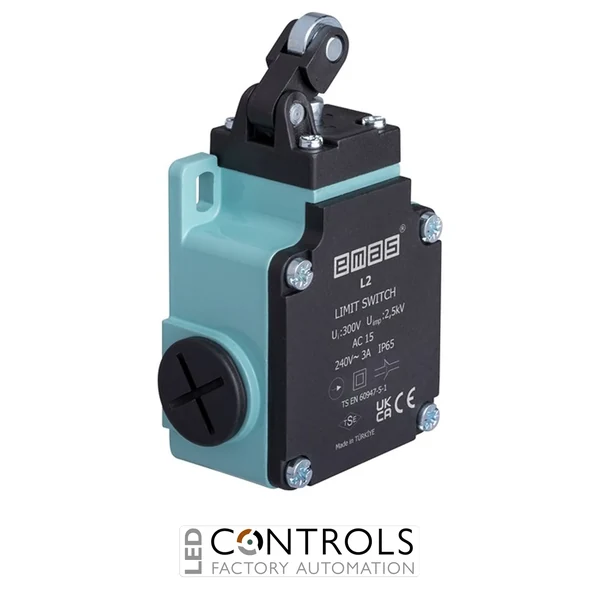

EMAS L2K13MIM311 Limit Switch – L2 Metal Body 14mm Metal Roller Lever Snap Action 1NO+1NC

The EMAS L2K13MIM311 Limit Switch is a robust industrial position detection switch designed for reliable operation in automation, machinery, and control applications. Featuring an L2 metal body construction, a 14 mm metal roller lever actuator, and a 1NO + 1NC snap action contact configuration, this limit switch provides accurate switching performance and dependable operation in demanding industrial environments.

Designed for industrial automation systems, the EMAS L2K13MIM311 includes a durable metal body with plastic cover, interchangeable contact block, multiple actuator options, three cable entries, and IP65 protection. It is suitable for machinery, conveyors, production equipment, and industrial control systems requiring dependable position sensing.

Product Features

Brand: EMAS
Model: L2K13MIM311
Product Type: Industrial Limit Switch
Series: L2 Metal Body
Actuator Type: 14 mm Metal Roller Lever
Contact Action: Snap Action
Contact Configuration: 1NO + 1NC
Rated Operational Current: 3 A at 240 V AC
Usage Category: AC15
Mechanical Life: Minimum 10,000,000 operations
Electrical Life: Minimum 1,000,000 operations
Protection Rating: IP65
Operating Temperature: -25°C to +80°C
Standards: TS EN 60947-5-1, UL 508, VDE 0660

Applications

The EMAS L2K13MIM311 limit switch is suitable for various industrial automation and machine control applications, including:

Industrial machinery position sensing
Automation and control systems
Conveyor systems
Material handling equipment
Production line monitoring
Machine safety circuits

Why Choose EMAS L2K13MIM311?

The EMAS L2K13MIM311 combines rugged industrial construction, reliable snap action switching, and a durable metal roller lever actuator for accurate position monitoring. With IP65 protection, long mechanical life, and industrial-grade components, it provides a dependable solution for demanding automation applications.

Technical Specifications

Specification Value Manufacturer	EMAS
Part Number	L2K13MIM311
Series	L2 Metal Body
Body Construction	Metal Body with Plastic Cover
Actuator Material	Metal
Actuator Diameter	14 mm
Actuator Type	Metal Roller Lever
Contact Material	AgNi
Contact Configuration	1NO + 1NC
Rated Current	3 A (240 V AC)
Insulation Voltage	300 V
Impulse Withstand Voltage	2.5 kV
Isolation Resistance	10 MΩ (500 V DC)
Operating Frequency	Mechanical 3000 operations/hour, Electrical 1800 operations/hour
Protection Degree	IP65
Cable Section	1 - 2.5 mm²
Cable Entries	3 cable entries suitable for PG13.5 or M20x1.5 glands
Contacts	1NO + 1NC
IP Rating	IP65
Actuator Type	Roller lever

Frequently Asked Questions

What is the EMAS L2K13MIM311?

The EMAS L2K13MIM311 is an L2 series industrial limit switch featuring a 14 mm metal roller lever actuator, snap action operation, and 1NO + 1NC contacts.

What type of actuator does the L2K13MIM311 use?

This model uses a 14 mm metal roller lever actuator designed for reliable mechanical position detection.

What is the protection rating of the EMAS L2K13MIM311?

The EMAS L2K13MIM311 has an IP65 protection rating, making it suitable for industrial environments requiring protection against dust and water jets.

What are the contact specifications of this limit switch?

The switch features a snap action mechanism with one normally open contact and one normally closed contact (1NO + 1NC).
